Schedule Page#

Schedule.Show

The Schedule page displays general information on the specific Schedule. In addition it enables the user to perform all the operations that can be performed on a specific Schedule.

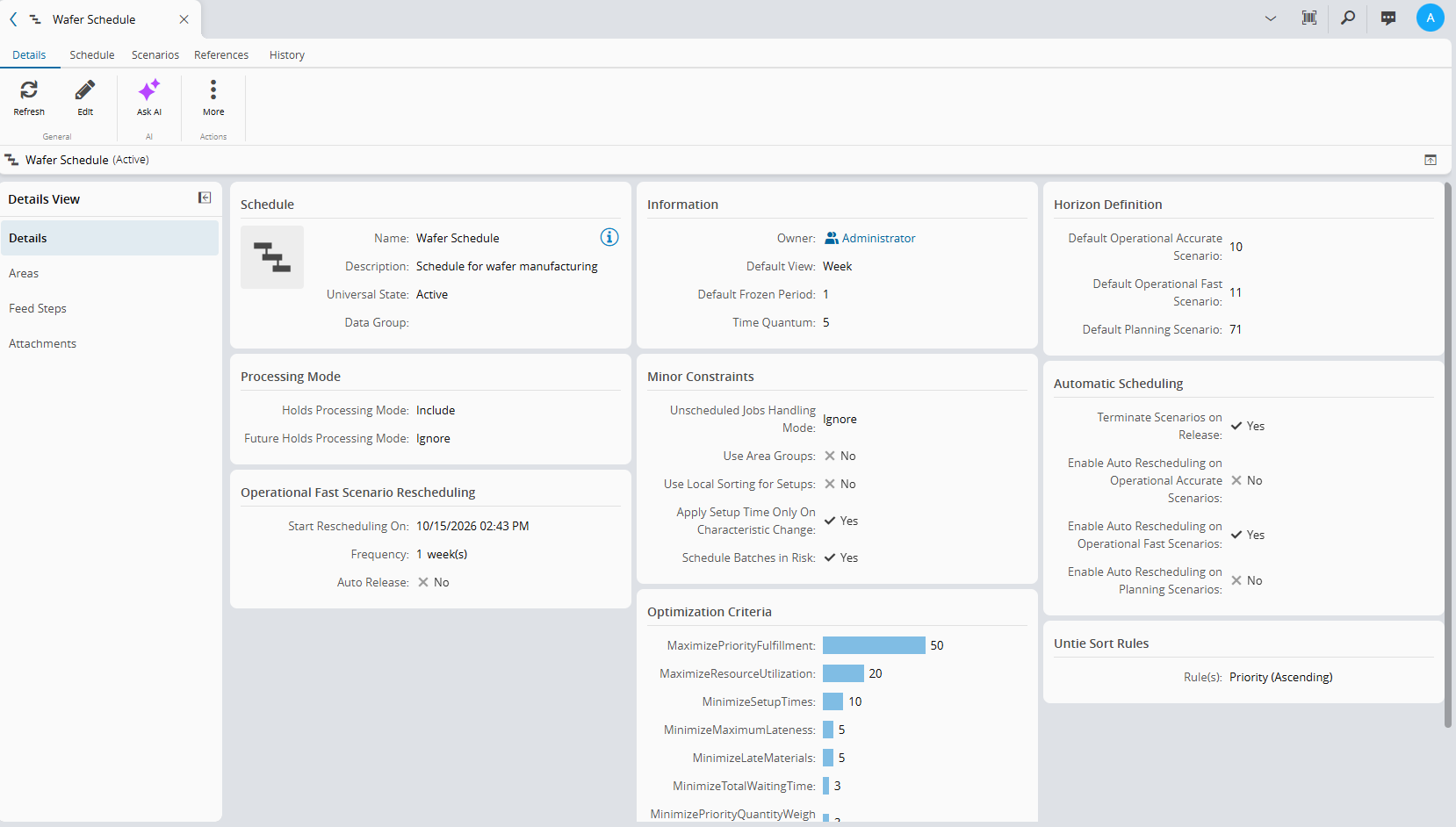

Details Tab#

The Details tab provides a collapsible Details View panel on the left side of the page. The panel can be collapsed or expanded. Depending on configuration and the optional licensed modules, the panel will display some or all of the following sub-sections:

• Details - displays general information on the Schedule.
• Areas - displays general information on which Areas are connected with the current Schedule.
• Feed Steps - allows the user to define feed Steps to be used in the Schedule.
• Attributes - enables the visualization of existing Attributes and the possibility to create new ones. For more information on Attributes, visit the section Attributes.
• Attachments - shows the documents that are attached to the Schedule and enables the user to attach additional documentation to the Schedule.

Schedule Tab#

The Schedule Tab is the default tab when landing on a Schedule. For more information, see Schedule Tab.

Scenarios Tab#

Allows managing the different Schedule Scenarios by creating or releasing them. For more information, see Scenarios View.

References Tab#

This tab combines information concerning other objects that have references to the current object:

• Relations - displays the existing Relations between the Schedule and other entities and enables the user to edit them. For more information, see Relations.
• Where Used - displays the set of relationships between the Schedule and the other objects used throughout the system.

History Tab#

This tab combines information concerning other objects that have references to the current Schedule object:

• History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
