Setup Matrix Page#

🔒 SetupMatrix.Show

The Setup Matrix page displays general information on the specific Setup Matrix. In addition it enables the user to perform all the operations that can be performed on a specific Setup Matrix.

Details Tab#

The Details tab provides a collapsible Details View panel on the left side of the page. The panel can be collapsed or expanded. Depending on configuration and the optional licensed modules, the panel will display some or all of the following sub-sections:

  • Details - displays general information on the Setup Matrix.
  • Setup Matrix - displays and manages information on the Services and their relationship in the Setup Matrix.
  • Attributes - enables the visualization of existing Attributes and the possibility to create new ones. For more information on Attributes, visit the section Attributes.
  • Attachments - shows the documents that are attached to the Setup Matrix and enables the user to attach additional documentation to the Setup Matrix.

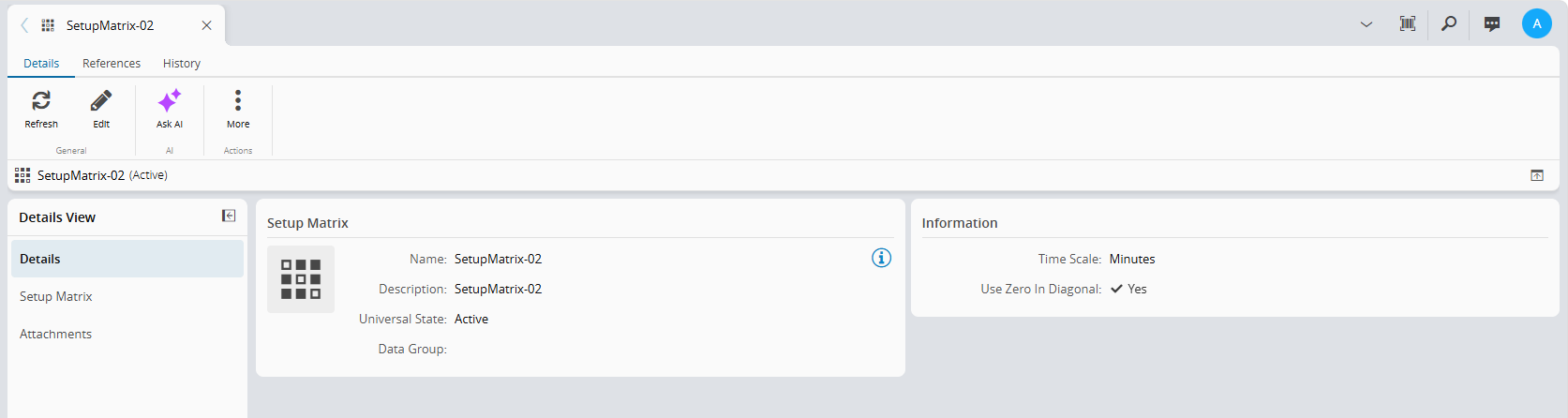

Main view of the Setup Matrix page

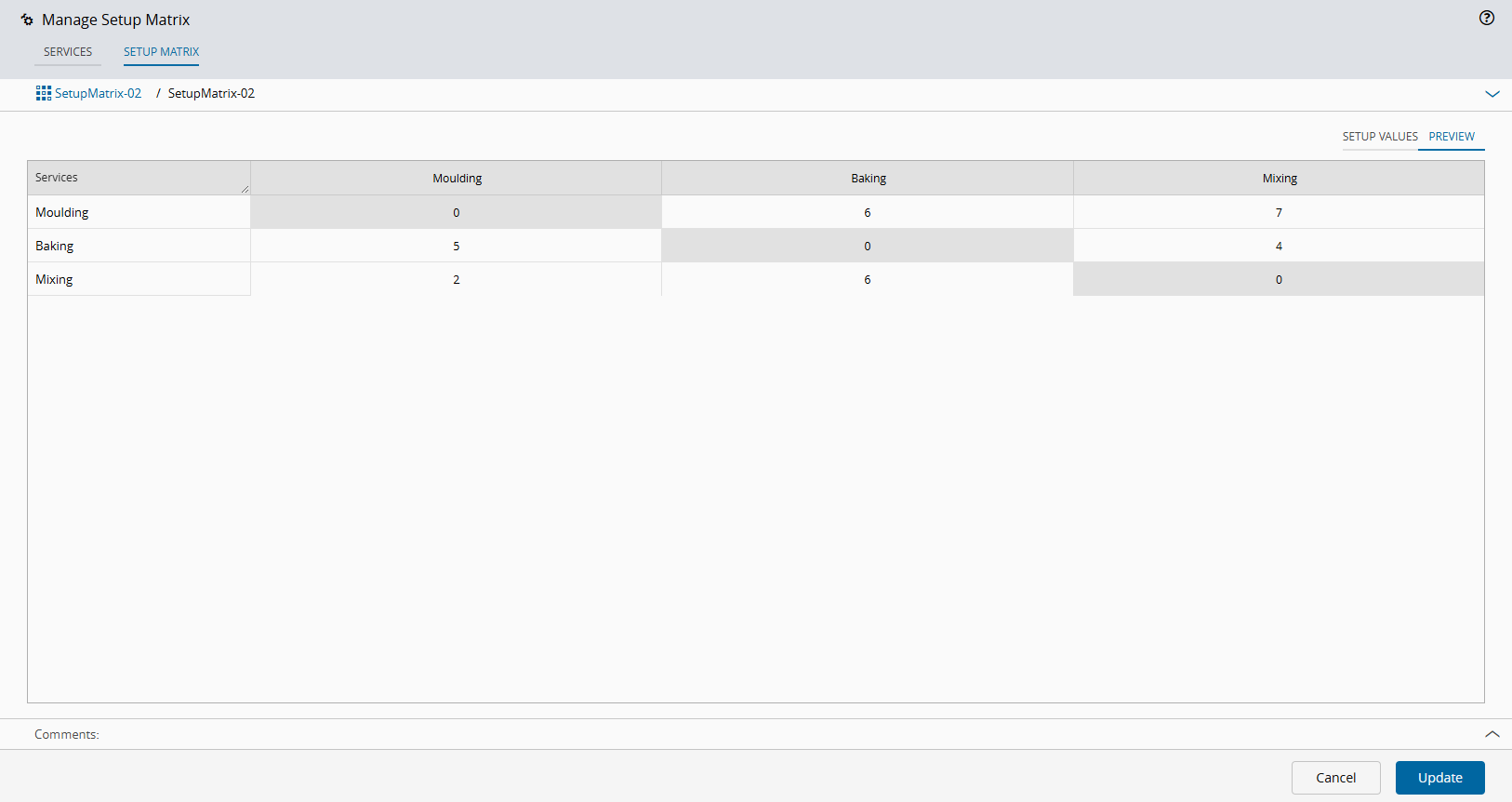

You can manage the shifts from within the actual Setup Matrix section by selecting the Manage button and opening the Manage Setup Matrix wizard:

Manage Setup Matrix

References Tab#

This tab combines information concerning other objects that have references to the current object:

  • Relations - displays the existing Relations between the Setup Matrix and other entities and enables the user to edit them. For more information, see Relations.
  • Where Used - displays the set of relationships between the Setup Matrix and the other objects used throughout the system.

History Tab#

This tab combines information concerning other objects that have references to the current Setup Matrix object:

  • History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
