Header#
When you open a section or entity page, the Header displays tabs for all open pages.
Each of the opened tabs contain a Go Back navigation icon and a Close icon.
When hovering over the tabs, you can navigate between all of those that are opened. You can also drag and drop the tabs to change their position within the header to best suit your needs.

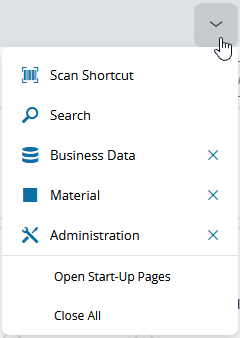

On the far right of the header, a dropdown menu lists all open pages and allows you to close them all at once. It also enables to perform a search or to navigate to an open page.
When you close the currently active tab, another open tab becomes active. If no other tabs are open or all tabs are closed, you will return to Critical Manufacturing MES home page.

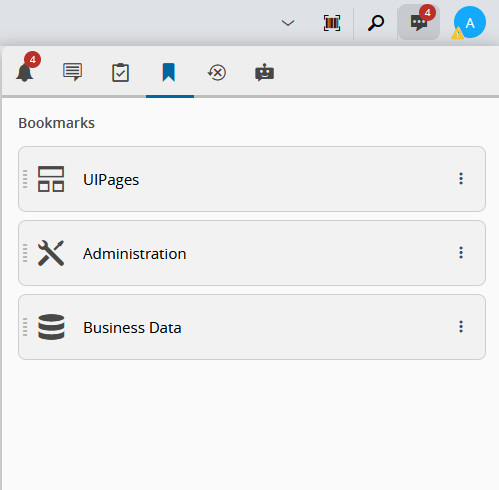

Also on the far right of the header, the Activity Center icon will display:
Alongside the Activity Center icon, an icon with the user's credentials will display the user settings when opened, as well as other system options described in System.
In specific occasions, the user settings' menu will display a warning icon:
This happens when the employee's clock-in and/or clock-out is required (if defined during the Employee creation). From there, it is possible to perform the Clock-In Employee and Clock-Out Employee operations.

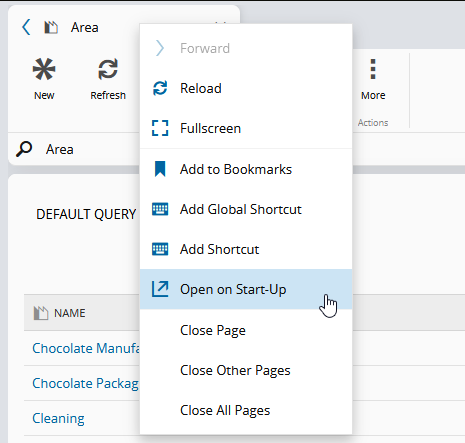

For each page, you can define Open on Start-Up by right-clicking the corresponding tab and selecting the option:
The page will then open automatically whenever you start or refresh the system.

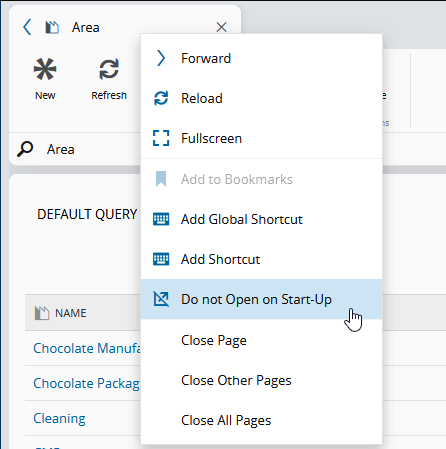

This configuration can be disabled by performing the same as above and selecting Do not Open on Start-Up:
If there are no opened pages, the header will collapse, and the content area will take its place.
Available Pages#
Dive into the pages below to explore more about Header:
