Flow Modeling#

Estimated time to read: 13 minutes

Flow Modeling is a simple graphical representation of how information and objects flow through the system as it is used. It is a view of how users in each work role and other system entities interact and communicate to get work done within an organization.

The basic system flow and steps of the work domain, its components, and interconnections among them can be represented through flow modelling through Data Flow Diagrams (DFD), conventional visual representations of the information flows and steps within a system.

This document will guide you through the setup and usage of Steps and Flows. It assumes that the Facilities, Areas, Resources as well as other supporting objects (e.g.: Services) are created and in place.

Overview#

The following table defines some key concepts that are relevant for this tutorial:

Table: Core concepts

The next figure describes the simplified Flow object model:

graph TD
    A1[Flow] -.- A2[Flow]
    A1 -.- A3[Step]
    A3 --> A4[Reason]

classDef mermaid_title color:#000, fill:#fafafa, stroke:#fafafa, stroke-width:0x, font-size:100%, font-weight:200;
classDef mermaid_start color:#000, fill:#fafafa, stroke:#fafafa, color:#fafafa, stroke-width:0x, font-size:100%, visibility: hidden;
classDef mermaid_businessdata color:#000, fill:#65CDE8, stroke:#65CDE8, stroke-width:0px, font-size:100%;
classDef mermaid_nonbusinessdata color:#000, fill:#B7DEE8, stroke:#B7DEE8, stroke-width:0px, font-size:100%;
classDef mermaid_entity color:#000, fill:#FB9F53, stroke:#FB9F53, stroke-width:0px, font-size:100%;
classDef mermaid_entitylinked color:#000, fill:#FCD5B5, stroke:#FCD5B5, stroke-width:0px, font-size:100%;
classDef mermaid_context color:#000, fill:#B9CDE5, stroke:#B9CDE5, stroke-width:0px, font-size:100%;
classDef mermaid_optional color:#000, fill:#B7DEE8, stroke:#65CDE8, stroke-width:1px, font-size:100%, stroke-dasharray: 5 5;
class Main mermaid_entity
class A1,A2,A3,A4,A5,A6,A7,A8,A9,A10,A11,A12 mermaid_businessdata
class L1,L2,L3,L4,L5,L6 mermaid_entitylinked
class C1,C2,C3,C4,C5,C6 mermaid_context
class N1,N2,N3,N4,N5,N6 mermaid_nonbusinessdata

click Main "../../userguide/business-data/kpi"
click A1 "../../userguide/business-data/parameter"

Step Details#

Each Step defines several relevant properties that determine the Material tracking and other behavior as listed in the next table:

Property	Description
Sub-Material Track State Depth	Defines the Material level for which track-in and track-out will be enabled for the Step.
Default Logistic Future Action Execution Mode	Defines whether logistic Future Actions (Split and Merge) will be executed manually or automatically by default for the Step.
Processing Type	There are three possible processing types: - Process – in this case, the system maintains the Last Process Step Resource property with the Resource where the Material was last tracked-in - Metrology - Logistical
Material Sort Rule Set	Specifies the Sort Rule Set used to sort Material to be displayed in the Step View page.
Resource Sort Rule Set	Defines the Sort Rule Set used to sort Resource for Material on this Step. This is used for pushing Material to Resources (What is the next Resource for Material?).
Split Checklist Mode	Defines what should happen to the Material Checklist Instance when a Material is split in-process: - Create Note – no Checklist Instance is created - Create Copy – creates a copy of the Checklist Instance preserving the current state - Create New – creates and initializes a new Checklist Instance
Shipping Allowed	Specifies whether Shipping of Material to another Facility is allowed from this Step or not.
Decimal Quantity Allowed	Specifies whether decimal quantities are allowed on Material operations in this Step. When set to false, only discrete quantities are possible.
Marks Product Completion	Defines when using Order Management, that the Material must be considered completed when it reaches this Step.
Auto Split by Product	Specifies that when using Binning/Grading at the Step, that the Material will be automatically split-by-product after Track-Out of this Step.
Material Transfers Allowed	Defines whether Material Transfers can be requested or fulfilled from this Step.
Enable Step Certification Requirements	Defines whether the Certification Requirements Context for the Step needs to be checked in addition to the Resource Personnel Requirements for employees performing Material operations on this Step.
Enable Time Constraints	Defines whether Time Constraints are allowed to or from this Step. Only if Time Constraints are enabled it will be possible to edit the Time Constraints Context.
Set Units	Defines whether the Step defines (enforces) the Material Primary and Secondary Units. If a Step is defined with Set Units, the Primary Units need to be defined.
In-Step Sampling	Specifies whether In-Step Sampling (requires Sub-Materials) is enabled for the Step or not. When enabled, the Sampling Pattern Context must be edited.
Track-Out Losses Mode	What type of loss screen must be displayed when Tracking-Out material in this Step: - None – no screen is displayed - Main Material – screen is displayed for the main material - Sub Materials – screen is displayed for the sub materials
Pass-Through	Defines whether the Material is Pass-Through or not. In a Pass-Through Step, a Material only has to perform a Move-Next. If the Step is not Pass-Through, a Material needs need to be Dispatched, Tracked-In, Tracked-Out and Moved-Next.
Storage Services	These properties define the required storage services for storing Material in both Queued and Processed state in this Step.
Include in Planning	Defines whether the Step must be included in Schedule Scenarios of type Planning or not.
Include in Scheduling	Defines whether the Step must be included in Scheduling or not.
Loss Reasons	Defines the Loss Reasons applicable for the Step. Each Loss Reason can be checked to specify whether they apply to: - Record Loss - Terminate - Assemble A Loss Reason at the Step can also specify what was the actual Step where the loss was incurred.
Loss Classifications	Defines up to four loss classifications that further classify losses reported on this Step.
Hold Reasons	Defines the Hold Reasons applicable for the Step. A material on hold cannot be moved from its current Step or current State.
Off-Flow Reasons	Defines the Off-Flow reasons applicable for the Step. Each Off-Flow reason can be configured to specify whether it applies to: - Rework - Temporary Off-Flow The difference between Rework and Temporary Off-Flow is the following: - Reworks must always be defined in advance and thus, they must be configured as part of the flow. - The rework return point can be any Step in the flow. - Rework can only be performed for Materials in state Queued or Processed, but when a Material returns from a Rework it always goes to the state Queued - Temporary Off-Flows are not defined in advance. A Material can be sent temporarily to any Flow. - The Temporary Off-Flow return point is always the Step from which the Material was sent to Temporary Off-Flow. - Temporary Off-Flows can be performed for Materials in state Queued, Dispatched or Processed, and when a Material returns from a Temporary Off-Flow, it always returns to the same state from which it was sent, and to the same Resource (if any). The difference between Rework and Temporary Off-Flow is illustrated in the picture below. The system supports nesting of reworks and temporary off-flows.
Bonus Reasons	Defines the Bonus Reasons applicable for the Step. A bonus is the opposite of a loss and it indicates that the material quantity is increased. A common bonus case consists of adding some material which has previously been considered scrap and has been recorded as a loss.

Table: Step relevant properties

Flow Details#

The table below describes important Flow characteristics

Characteristic	Description
Versioning	A flow is versioned object that is subject to change control.
Context Resolution	A Material is always at a Flow and at a Step, therefore it’s common for both the Flow and the Step be part of context resolution. Because a Step can be re-used in multiple Sub-Flows, the Flow that is used in context resolution is not the top-level Flow of the Material, but rather the immediate parent Flow of the current Material Step. In the picture below, a simplified version of the Service Context smart table is shown. For Step 1, if a Material would be in Flow 1 the context resolution would resolve the required Service as Service 1; if a Material would be in Flow 2 it would resolve to Service 2; and for all other Flows it would resolve to Service 3.

Table: Flow characteristics

Feature	Description
Optional Steps	An optional Step is a Step that can be skipped. The decision to be skipped or not needs to be taken at the time of moving the Material to the next Step and it must be made manually or automatically by a business rule. In the example below, Step 2 is optional which means that when moving from Step 1, a Material can either go to Step 2 or Step 3. Steps are marked as optional at the Flow level. The counter/time-based sampling functionality makes use of optional Steps to determine whether a particular Material should be sent for sampling or not.
Non-Sequential Blocks	A non-sequential block defines a set of Steps (typically testing/metrology Steps) that need to be performed on a certain Material but for which the order of execution is not relevant. In the example below, the sequences Step 1 – Step 2 – Step 3; Step 2 – Step 1 – Step 3; and Step 3 – Step 1 – Step 2; are all valid sequences for the Material
Alternate Flows	When a flow is alternate, only one of its branches, be it made of Sub-Flows or Steps, will be taken by a Material. That is, each Sub-Flow or Step that makes up the Flow is mutually exclusive.
Rework Flow Paths	When a Flow consists of Steps, it’s possible to define at every Step one or more Rework Paths. A Rework Path can be linked with an Off-Flow Reason associated with the Step that is applicable to Rework, and it defines the Go-To Flow Path and the Return point within the Flow. Because the same Flow can be re-used by different Flows, the return point must always belong to the current Flow. There are no limits to the number and levels of Rework. A Material which is in Rework, can be sent to Rework.

Table: Flow features

Setting Up Flows#

In order to be able to use the Flows it's necessary to follow the steps as described in the table below:

Table: Setting up Flows

The individual steps are explained in more detail in the sub-sections below.

Create the Necessary Master Data#

The necessary master data for setting up Flows is described in the table below:

Table: Master Data preparation

Create the Necessary Steps#

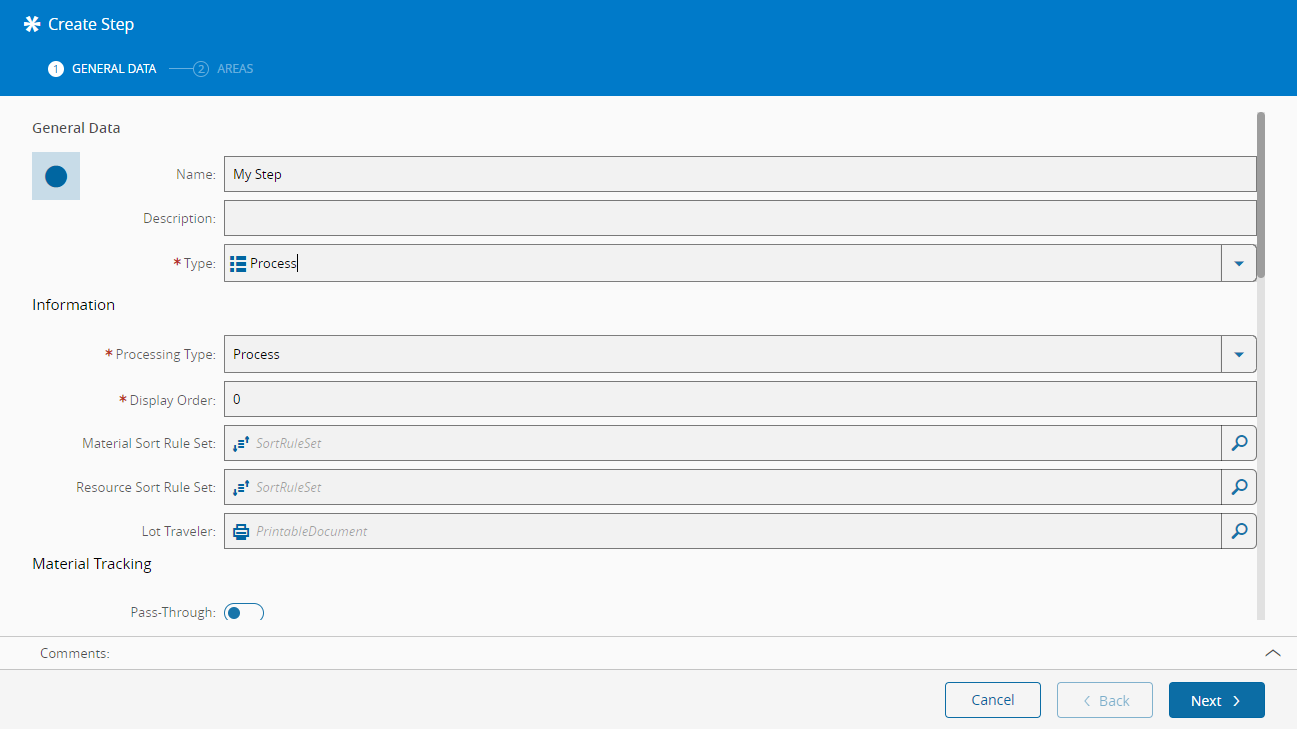

A Step is a regular system object that can be created and edited just as any other system object. More details about Creating a Step can be found in the User Guide.

Create the Necessary Flows#

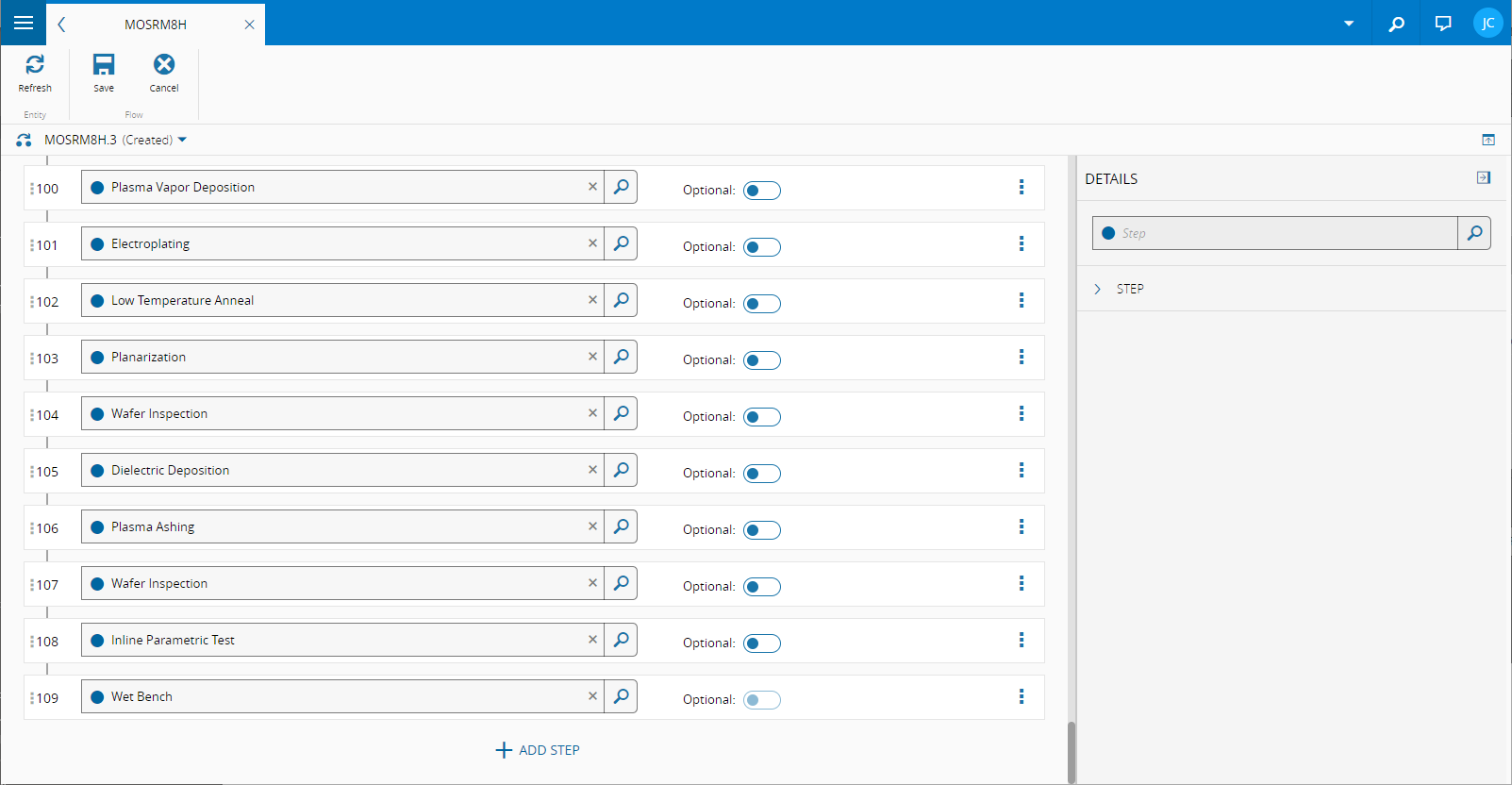

A Flow is a versioned object and it is subject to change control. More details about creating a Flow can be found in the User Guide.

Using Flows#

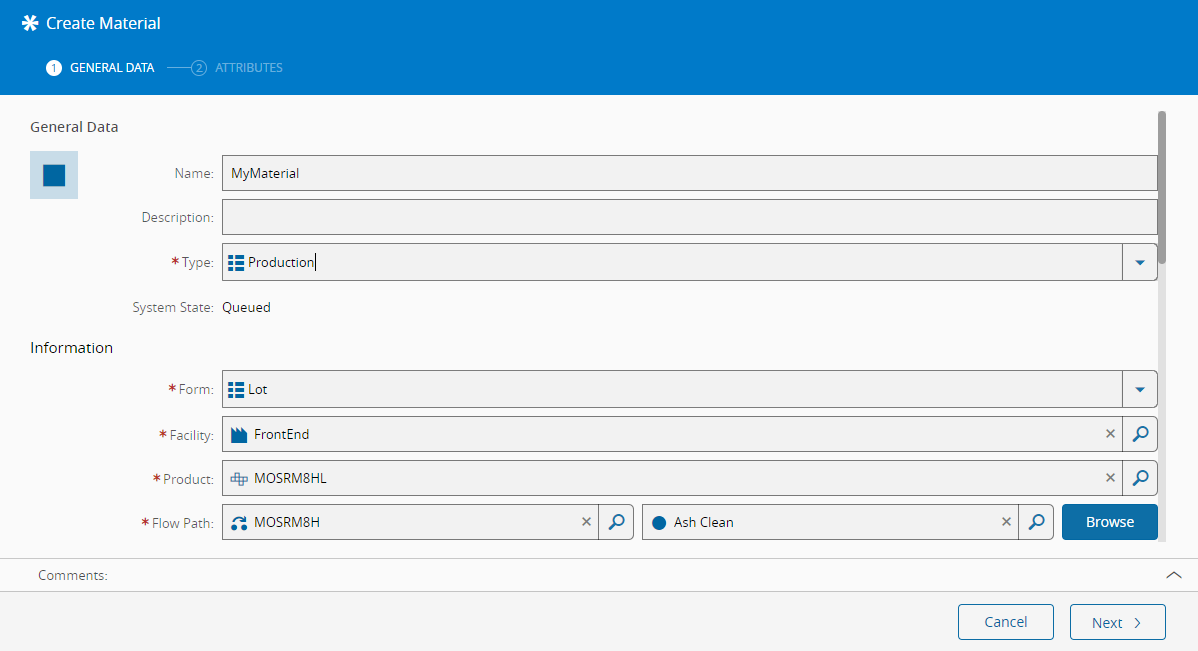

To use a Flow, it’s only necessary to create a Material that references that Flow. Note that if a Product or Product Group define a default Flow Path, the Material will be assigned to that Flow by default when creating the Material. The Material will automatically follow the Flow as defined.
