DEE Actions#

Administration.DynamicBusinessRules

Dynamic Execution Engine (DEE) Actions provides access to the available DEE Actions. DEE Actions are soft-rules defined in C# which are loaded and compiled into memory and executed during runtime. The most common use for DEE Actions is to implement pre and post transaction logic.

An Action Group represents a context where the rule is executed automatically by the system.

Browsing DEE Actions#

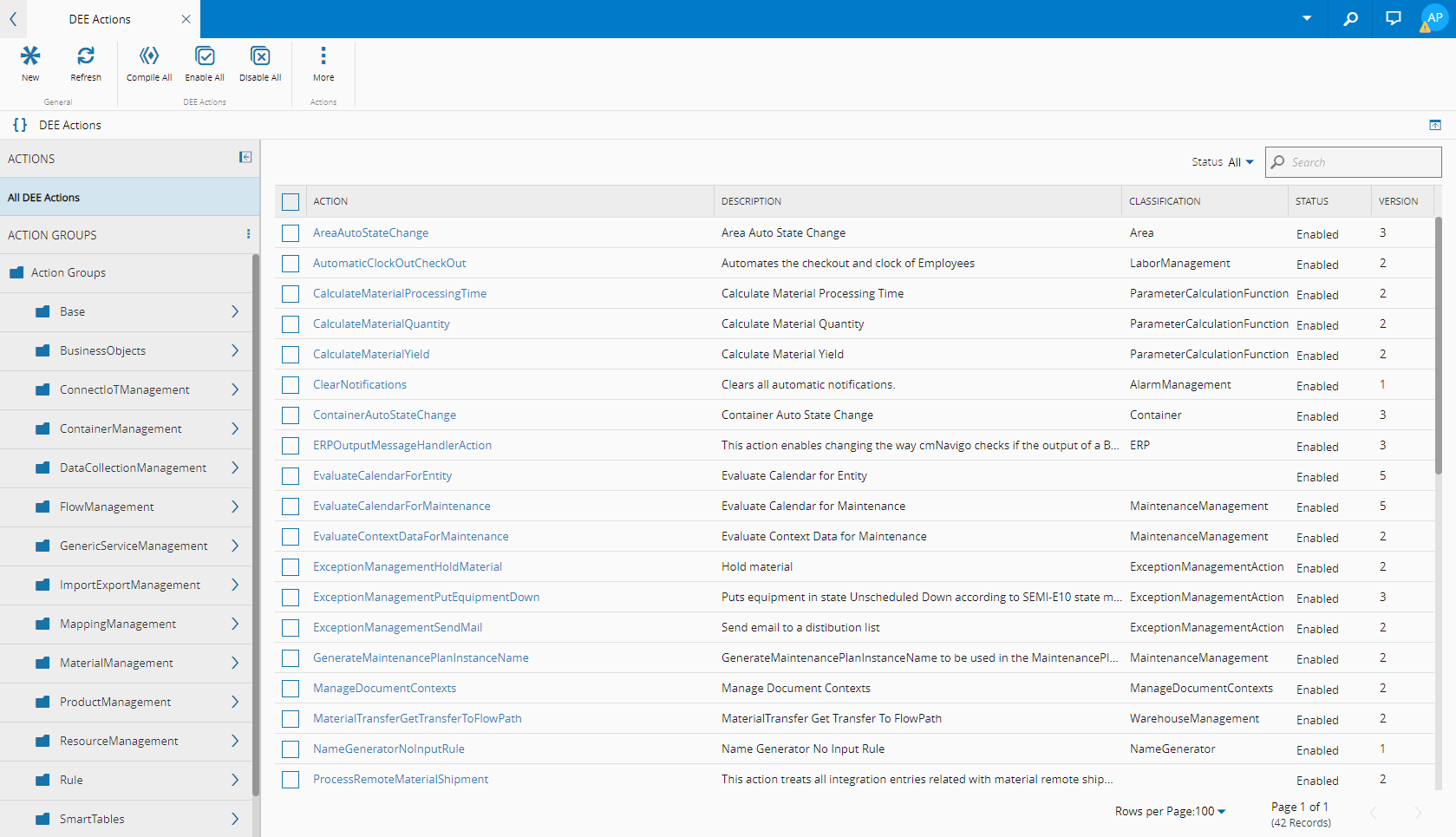

By clicking in the DEE Actions entry in the Administrators Page Group all available DEE Action Groups and DEE Actions are shown. From this tree it is possible to:

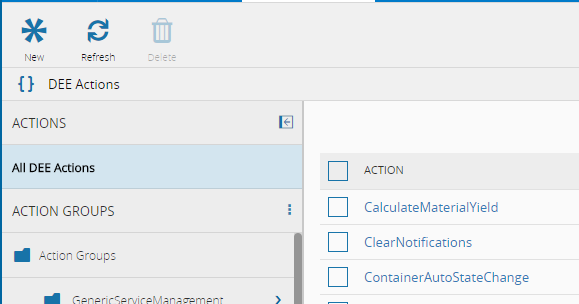

• Create a new Action - by clicking on New in the DEE Action button
• Compile all DEE Actions - validates the code structure and integrity for all the actions
• Disable all DEE Actions - renders all DEE Actions disabled in the system

You can filter the DEE Actions that are displayed on the grid by choosing the appropriate status of the DEE Actions to display:

• All - shows all DEE Actions
• Enabled - only displays enabled DEE Actions
• Disabled - only displays disabled DEE Actions

graph LR
A{Status filter} --> All[All]
A --> Enabled[Enabled]
A --> Disabled[Disabled]

All --> EffectiveAll{Is there an Effective version?}
Enabled --> EffectiveEnabled{Is there an Effective version?}
Disabled --> EffectiveDisabled{Is there an Effective version?}

EffectiveAll -->|Yes| E[Shows the Effective Version]
EffectiveEnabled -->|Yes| F[Shows the Effective Version if it is Enabled, otherwise don't show anything]
EffectiveDisabled -->|Yes| G[Shows the Effective Version if it is Disabled, otherwise don't show anything]

EffectiveAll -->|No, all versions are Active| H[Shows the most recent Version]
EffectiveEnabled -->|No, all versions are Active| I[Shows the most recent Version if it is Enabled, otherwise don't show anything]
EffectiveDisabled -->|No, all versions are Active| J[Shows the most recent Version if it is Enabled, otherwise don't show anything]

DynamicBusinessRules.Create

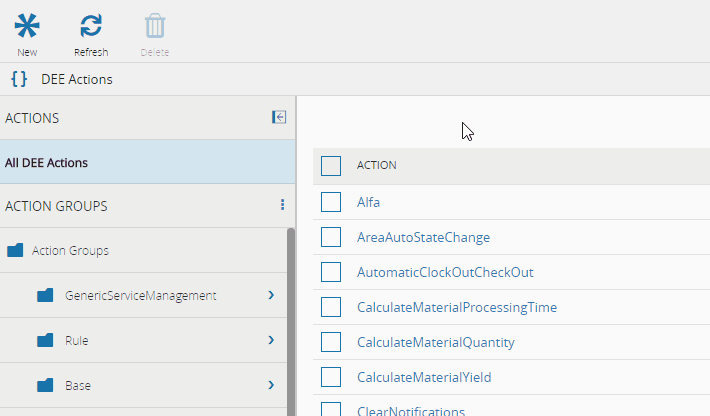

• Create a new Action Group - by clicking on New in the DEE Action Group chunk

ActionGroup.Create

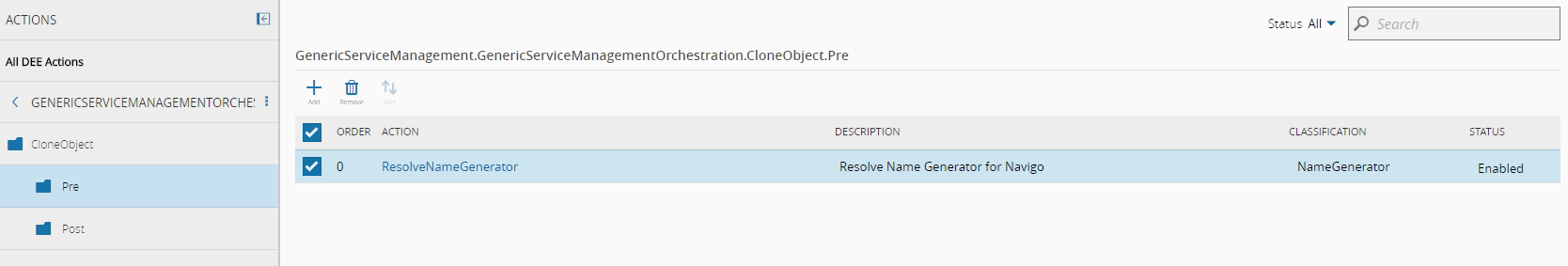

When drilling down to a particular Action Group leaf of the tree, it is possible to change the order (be sure to press Save), add and remove DEE Rules from the Action Group. Note that removing a DEE Rule from an Action Group does not delete the DEE Rule.

DEE Action Details#

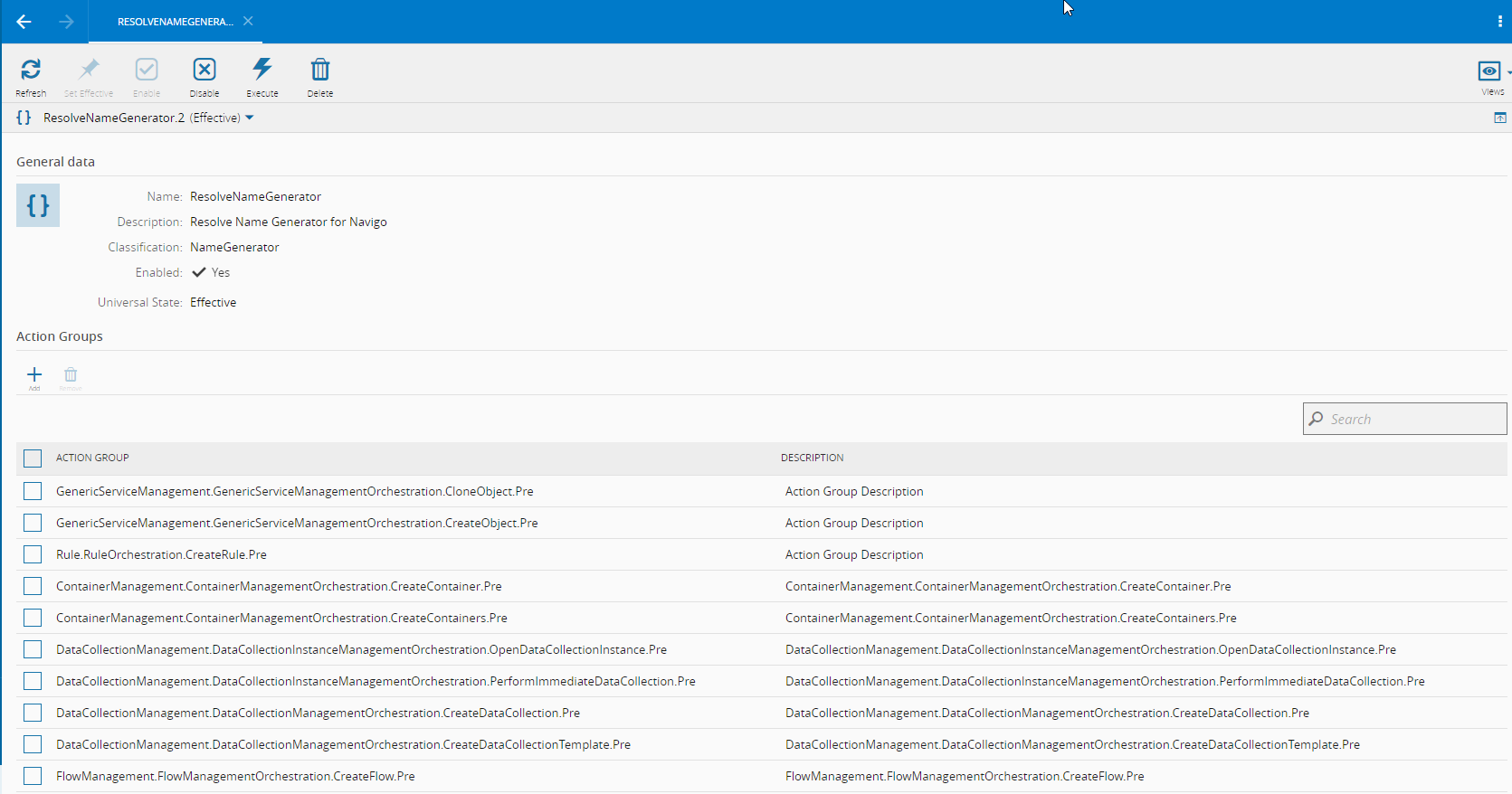

Clicking on a DEE Action Name opens the details of the selected DEE Action.

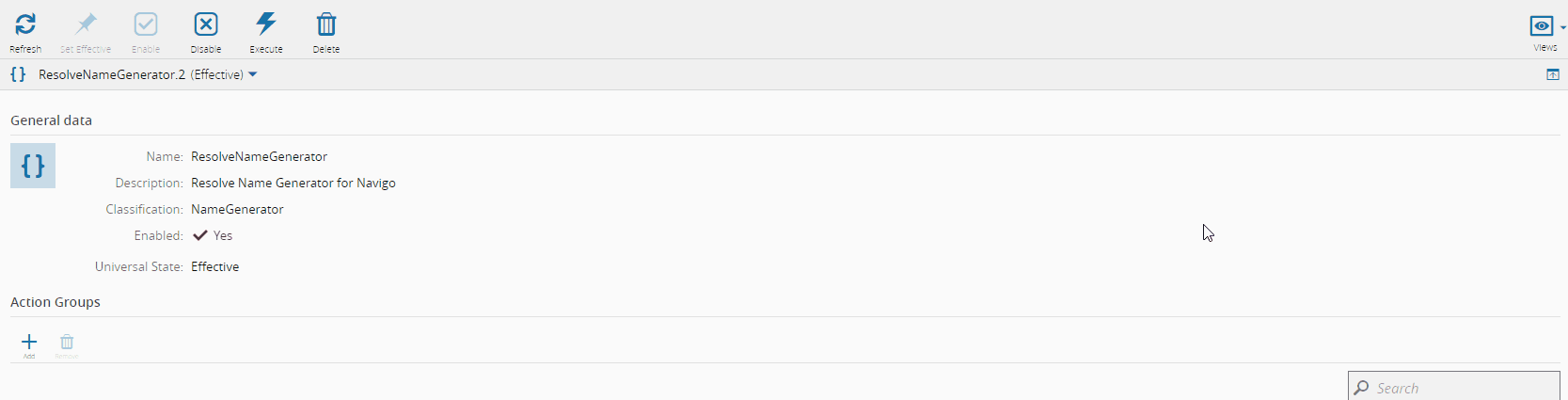

The Action Groups determine where and when the DEE Action is executed.

Editing a DEE Action#

DynamicBusinessRules.Edit

To edit a DEE Action it is necessary to change the View Mode by pressing the View button and then selecting Code.

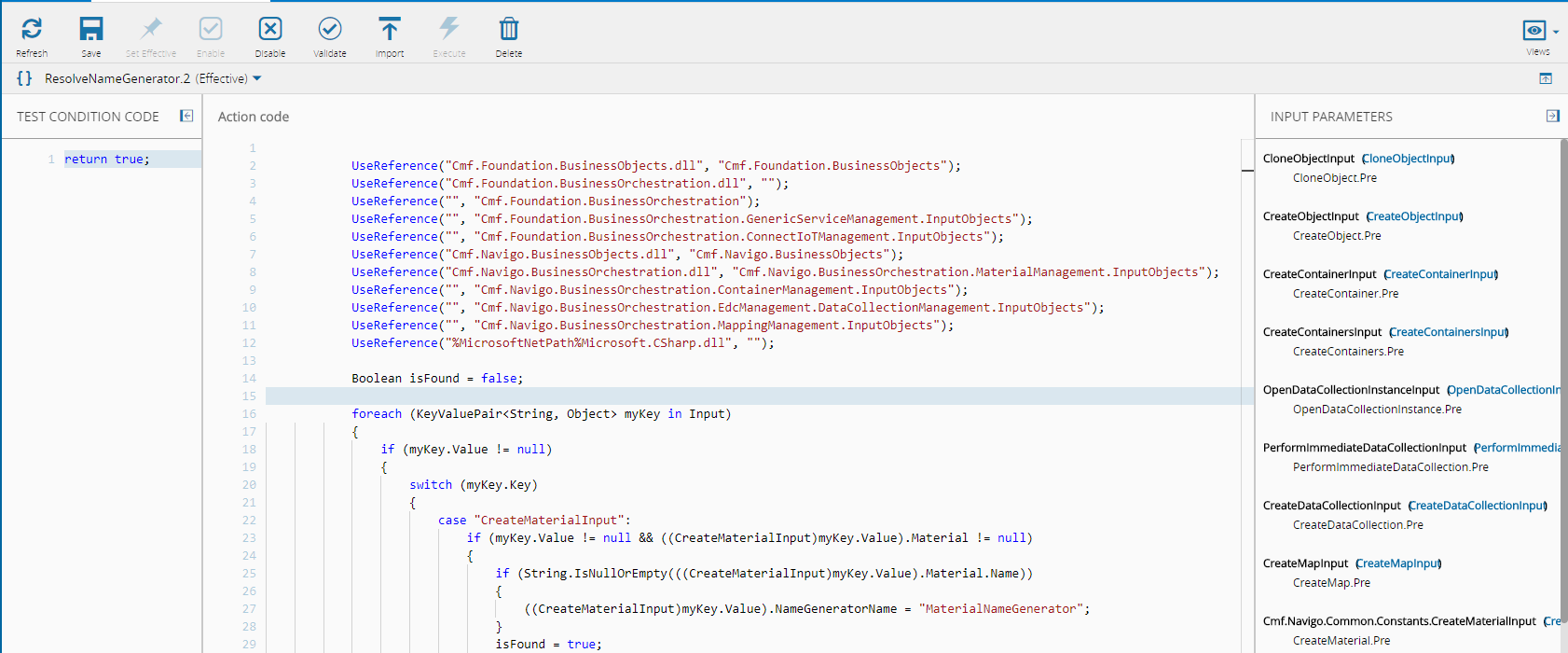

A DEE Action is logic represented in C# code and consists of a test condition and the action itself. The action is only executed during runtime if the test evaluates to true. The DEE Action editor contains additional utilities as described in the image that follows.

To save a DEE Action it is necessary to open it and then press the Enable button in the ribbon.

The Save operation creates a new version of the DEE Rule. This new version can have a Description and Classification. Optionally, you can set this newly created version as immediately effective.

Disabling a DEE Action#

DynamicBusinessRules.Edit

To disable a DEE Action it is necessary to open it and then press the Disable button in the ribbon.

Enabling a DEE Action#

DynamicBusinessRules.Edit

To enable a DEE Action it is necessary to open it and then press the Enable button in the ribbon.

Deleting a DEE Action#

DynamicBusinessRules.Delete

To delete a DEE Action is necessary to select it first and then press the Delete button in the ribbon.

Validating a DEE Action#

To validate a DEE Action press the Validate button in the DEE Actions ribbon. This will trigger a syntax check and assert the code of the Rule.

Executing a DEE Action#

To execute a DEE Action press the Execute button in the DEE Actions ribbon.

Importing a DEE Action#

To import a DEE Action Code press the Import button in the DEE Actions ribbon. The system will let you import a C# file you select.

Set a DEE Action as Effective#

As any other version controlled object, it is possible to make effective a version that is different from the actual effective version. To do so, press the Set Effective button.

This option is only available once you select in Version History view.

System DEE Actions#

The following table lists the enabled DEE Actions provided by the system:

Table: System DEE Actions
