Store Data#
Inputs#
| Name | Data Type | IsTrigger | Description |
|---|---|---|---|
<custom list> | <custom> | Yes/No | Value to store |
| Activate | any | Yes | Store all values |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | True value emitted when the values are stored |
| Error | Error | Error that occurred during the processing of this task |
Settings#

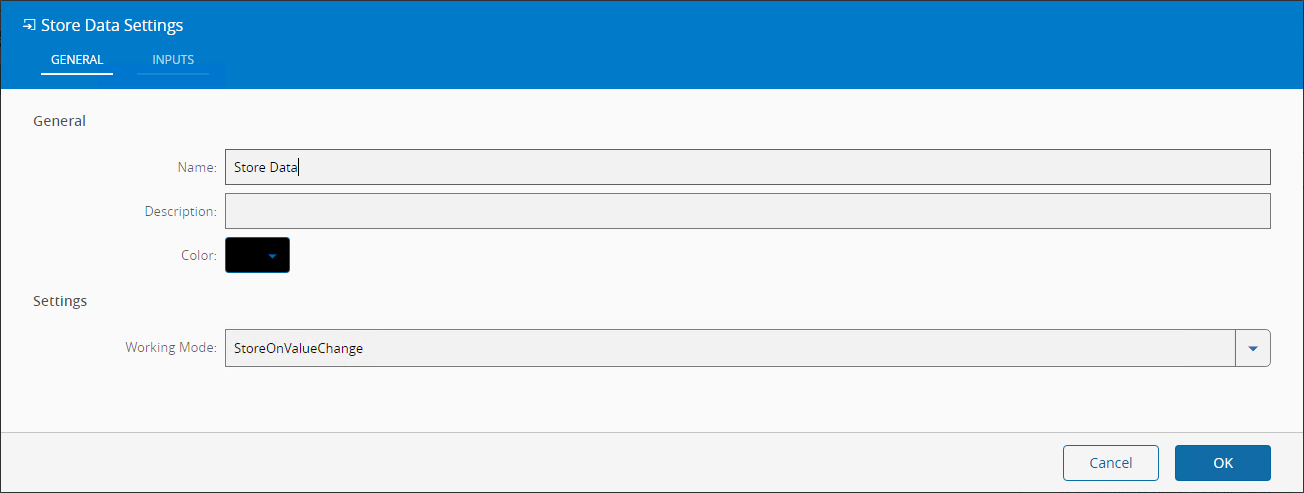

On the General Tab, you have the usual settings and the following setting:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Working Mode | enum | StoreOnValueChangeStoreOnActivate | StoreOnValueChange | Expected behavior to store the data |

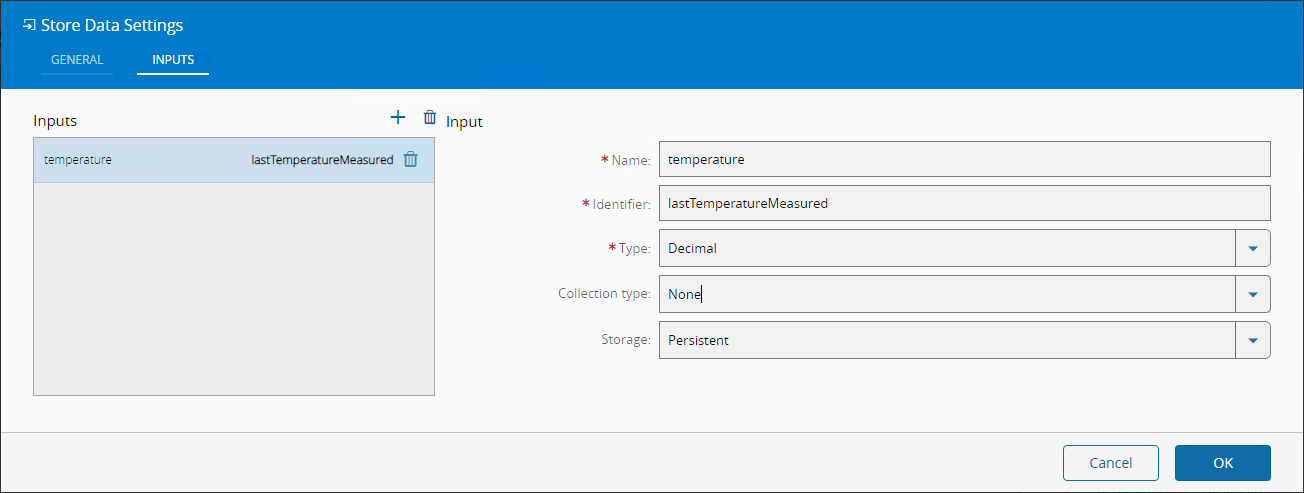

On the Inputs tab, each item that belongs to the custom list has the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Name | String | Name that will identify the stored value | ||
| Identifier | any | Unique identifier that will represent the value | ||
| Type | LongDecimalDateTimeBooleanStringInteger | Type of data expected to be stored | ||
| Collection Type | NoneArrayMap | None | Collection Type of data to store (not yet used) | |
| Storage | enum | PersistentTemporary | Retention type of the store |
Behavior#
If Working Mode is set to StoreOnActivate then the data will be stored only when the Activate input is triggered and all inputs will be stored at the same time.
If Working Mode is set to StoreOnValueChange then each and every time the input value is changed, it will be immediately stored.
If the Storage is set to Temporary, then the data will only be stored during the lifetime of the Automation Controller process. The moment it is closed or restarted, the data will be lost.
The Identifier is supposed to be unique throughout the entire controller. Duplicate identifiers will remain with the latest values, no matter who wrote it.
Note
The data is persisted within a store unique for the Automation Controller Instance. This means that changing versions will not affect the data. Terminating an Automation Controller Instance will render the data inaccessible.
Remarks#
Writing <Null> into a Data Item will remove it from the store.
Make sure the identifiers are unique within the controller.
The persisted data will be stored in the persistence entry defined in the configuration file provided to the Automation Manager process command line.
