System Event#


This task listens to a subject and is prompted when an event occurs. It receives a Message Bus message and outputs its data.


Warning

This task is currently deprecated and will be removed in future versions.

Inputs#

Name Data Type IsTrigger Description
reply Object No A reply input object to send as answer to a SendRequest call
Activate any Yes Activates the listener for system events

Outputs#

Name Data Type Description
data Object Contents of the received message
timestamp DateTime Timestamp for when the message was received

Settings#

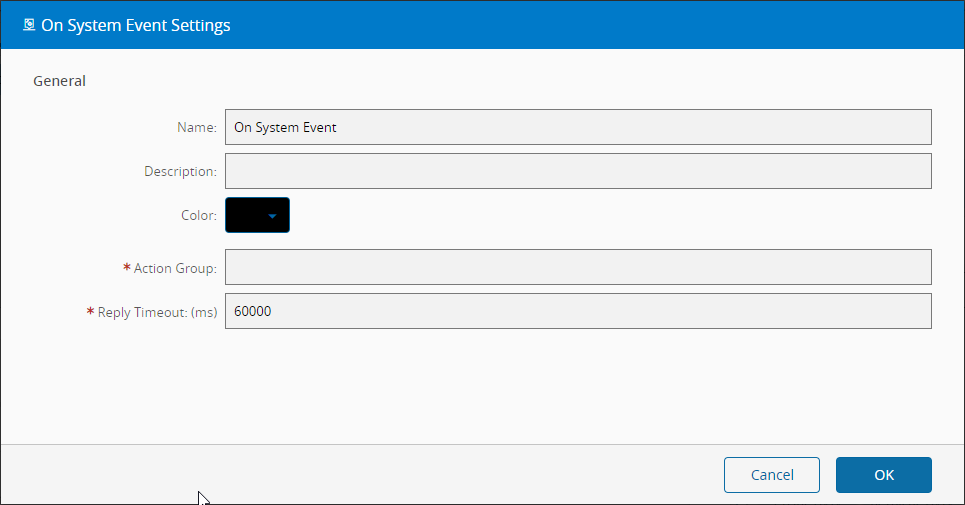

On the General Tab, you have the usual settings and the following settings:

Name Data Type Default Description
Action Group String The action group subscribed by this task
Reply Timeout Integer 60000 Time window for the reply to be emitted. After that the transaction is aborted

Behavior#

The task subscribes to a MES action group and listens for a system event. When an event is triggered it reads the Message Bus message and emits its data. If a reply does not occur in the reply timeout time, the transaction is aborted.

Remarks#

If a reply is needed will have a feedback system were it receives data and sends a reply to the reply input of the task.

This task uses a specific structure of context-based data called zone. More information on this topic can be read in the Zones page.

Example#

DEE action code to make a publish:

UseReference("Cmf.Foundation.BusinessObjects.dll", "Cmf.Foundation.BusinessObjects");
UseReference("Cmf.Foundation.BusinessOrchestration.dll", "");
UseReference("", "Cmf.Foundation.Common.Exceptions");
UseReference("", "Cmf.Foundation.Common");
UseReference("Cmf.Navigo.BusinessObjects.dll", "Cmf.Navigo.BusinessObjects");
UseReference("Newtonsoft.Json.dll", "Newtonsoft.Json.Linq");
UseReference("%MicrosoftNetPath%Microsoft.CSharp.dll", "");
var serviceProvider = (IServiceProvider)Input["ServiceProvider"];
IResource res = serviceProvider.GetService<IResource>();
res.Name = "Anneal-104";
res.Load();
var instance = res.GetAutomationControllerInstance();
if (instance == null)
   throw new Exception("Resource not connected to any IoT instance");
else
{
   instance.Publish("HelloWorld", "Value");
}

DEE action code to make a request and receive a reply:

UseReference("Cmf.Foundation.BusinessObjects.dll", "Cmf.Foundation.BusinessObjects");
UseReference("Cmf.Foundation.BusinessOrchestration.dll", "");
UseReference("", "Cmf.Foundation.Common.Exceptions");
UseReference("", "Cmf.Foundation.Common");
UseReference("Cmf.Navigo.BusinessObjects.dll", "Cmf.Navigo.BusinessObjects");
UseReference("Newtonsoft.Json.dll", "Newtonsoft.Json.Linq");
UseReference("%MicrosoftNetPath%Microsoft.CSharp.dll", "");

var serviceProvider = (IServiceProvider)Input["ServiceProvider"];
IResource res = serviceProvider.GetService<IResource>();
res.Name = "Anneal-104";
res.Load();
var instance = res.GetAutomationControllerInstance();
if (instance == null)
   throw new Exception("Resource not connected to any IoT instance");
else
{
   dynamic reply = instance.SendRequest("HelloWorld", "Request", 10000);
   throw new Exception(reply == null ? "Nothing received" : "**" + reply.reply + "**" );
}
