Get Recipe Details#
This task returns the Recipe Details from a given Recipe. Outputs an object with Panel/SubPanel/ComponentPlacement information.

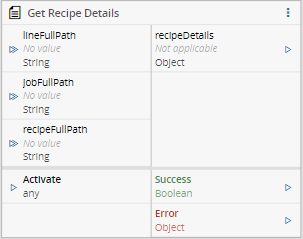

Inputs#
| Name | Data Type | IsTrigger | Description |
|---|---|---|---|
| Activate | Any | Yes | Activate the task |
| lineFullPath | string | No | Line Full Path eg: Virtual Lines\\Virtual Line 01 |
| jobFullPath | string | No | Job Full Path eg: Demo Jobs\\Job ASM ProcessExpert Testboard V10 |
| recipeFullPath | string | No | Recipe Full Path eg: Demo Recipes\\Recipe ASM ProcessExpert Testboard V10 |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| recipeDetails | Object | Recipe Details |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |

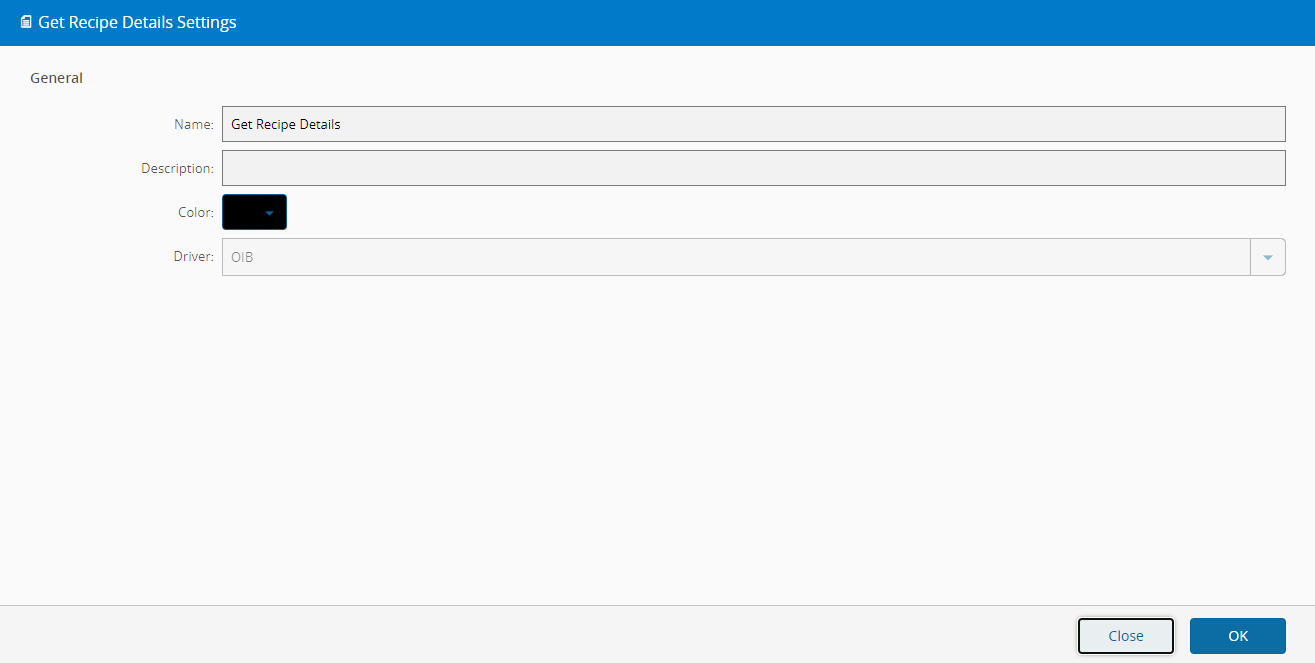

Settings#
On the General tab, you have the usual settings.
Behavior#
Call the Task with an OIB Line FullPath, JobFullPath and RecipeFullPath and the task will send a command to the OIB SiplacePro, in the reply of the command there will be Panel/SubPanel/ComponentPlacement information.
Remarks#
None.
