Create Sampling Plan#

🔒 SamplingPlan.Create

🔒 SamplingPlan.CreateTemplate

🔒 SamplingPlan.CreateFromTemplate

Overview#

This operation is used to create a Sampling Plan. A template can also be created using a similar procedure and there is also the possibility of using a template to create the new object as well. This selection can be done in the main entity menu.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • The Sampling Plan does not currently exist in the system.

Sequence of Steps#

Step 1: General Data#

  1. Provide a name for the Sampling Plan.
  2. Optionally, provide a description of the Sampling Plan.
  3. Select the Sampling Plan type (for classification purposes only). The list of possible values is taken from the lookup table SamplingPlanType.

  4. Specify the Default Sampling by specifying:

    • Type (CounterBased, CounterAndTimeBased, TimeBased)
    • CounterFrequency (for CounterBased, CounterAndTimeBased), a value of 10 means every tenth lot
    • TimeFrequency (for CounterAndTimeBased, TimeBased), a value, in hours

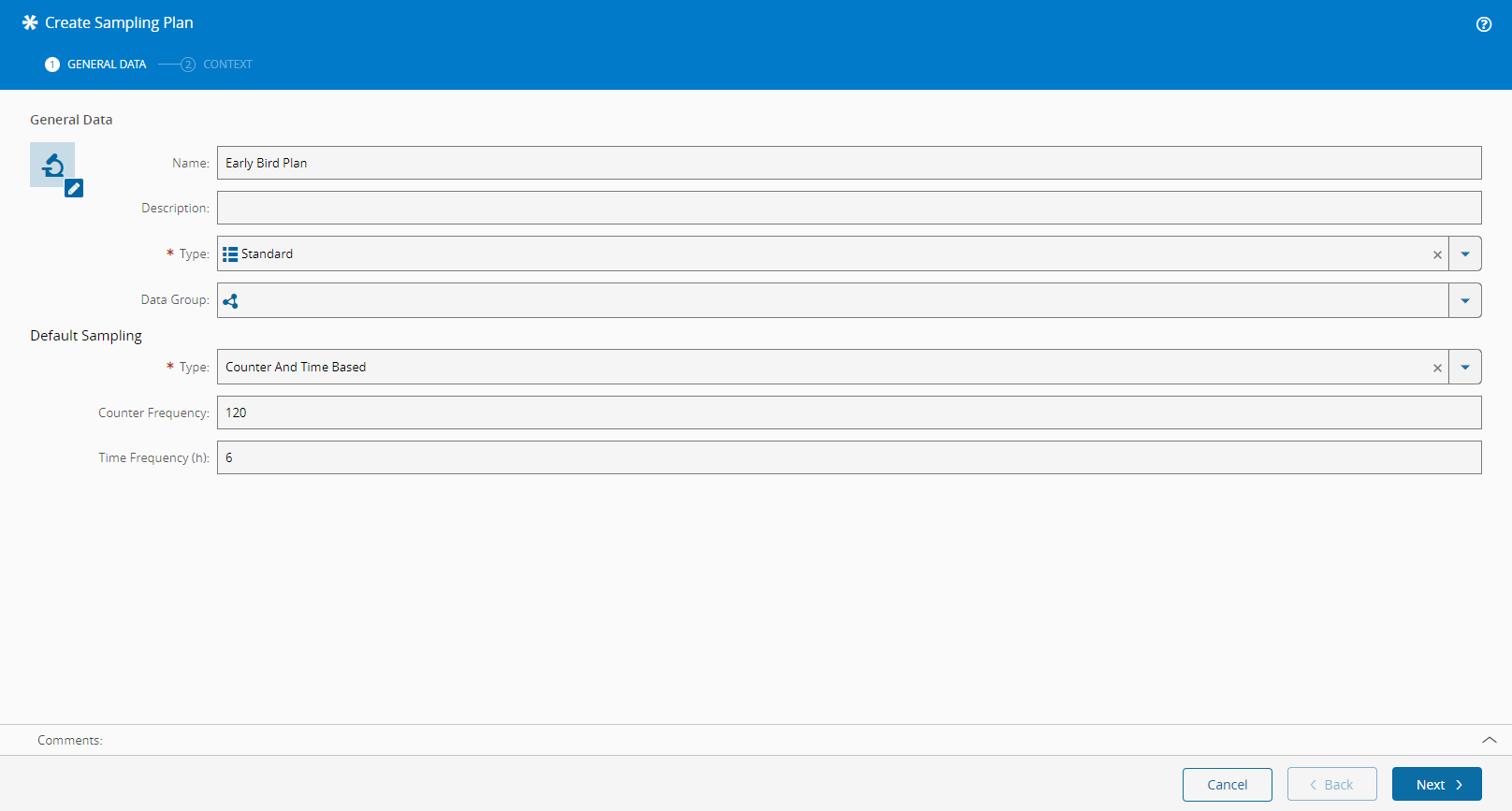

create_sampling_plan_step_one

Step 2: Context#

  1. Specify the context information for the Sampling Plan. At minimum it must have one context defined. Possible contexts are:

    • MaterialProduct - Product of the Material
    • MaterialProductGroup - ProductGroup of the Product of the Material
    • MaterialProductMaturity - maturity of the Material Product
    • MaterialRecipe - the last used Recipe of the Material
    • MaterialResource - Resource of the Material
    • MaterialStep - Step of the Material
    • MaterialStepMaturity - maturity of the Material Step
    • MaterialType - type of Material
    • MaterialProductionOrder - Production Order of the Material

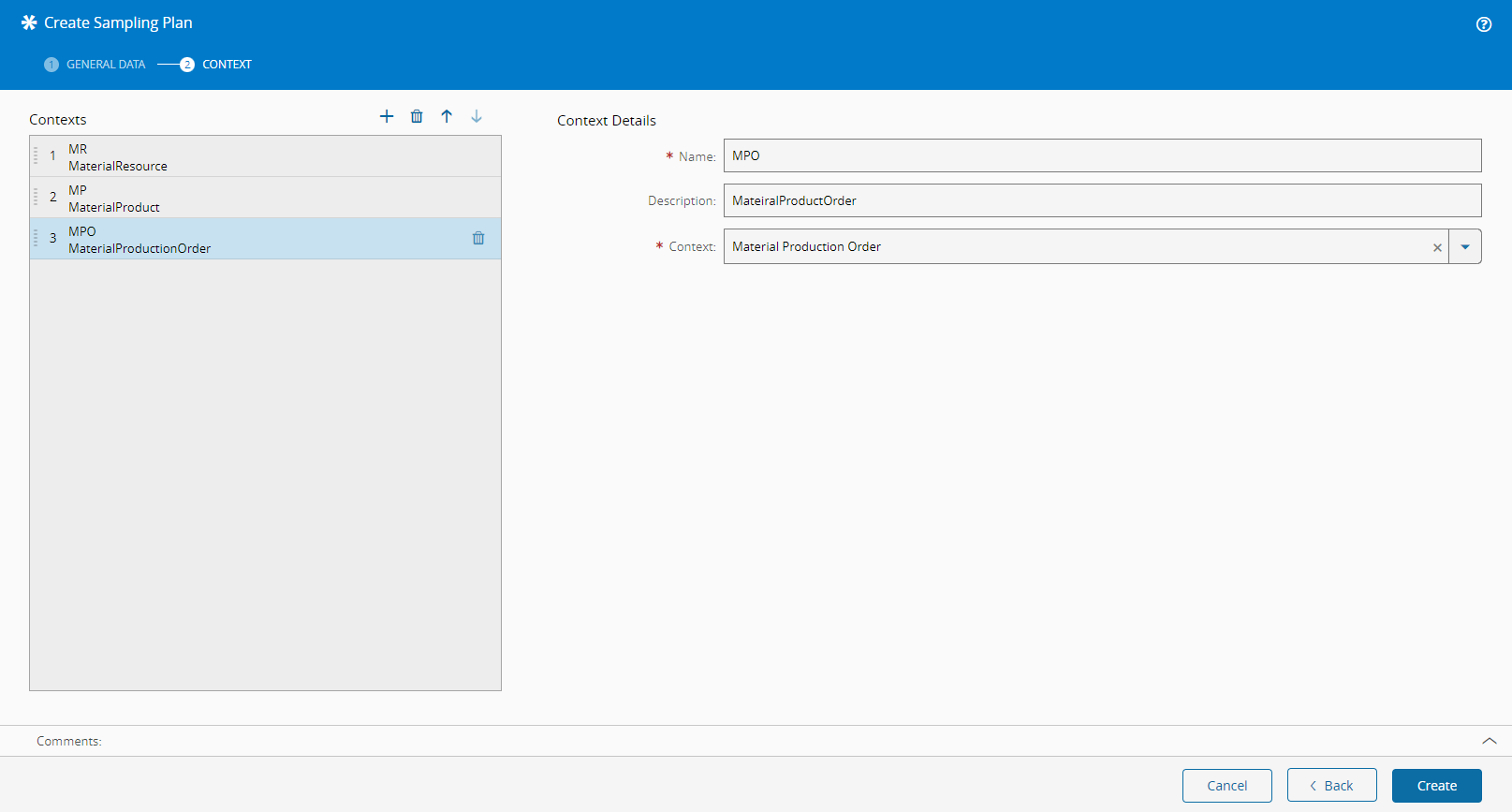

create_sampling_plan_step_two
