Manage Sampling Plan#

🔒 SamplingPlan.ManageInstances

Overview#

This operation allows the user to manage Sampling Plan instances.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • Sampling is properly licensed in the system
  • Sampling Plan exists and it's Active

Sequence Of Steps#

  1. Select an appropriate Sampling Plan, navigate to the Instances section and press the Manage button.

  2. Add as many instances as desired (press in the top right of the grid to add a new entry and to remove an existing entry), providing the following information for each item:

    • Material Type (values retrieved from the MaterialType lookup table)
    • Sampling Type. The possible values are:
      • CounterBased
      • CounterAndTimeBased
      • TimeBased

    • Depending on the Sampling type selected above, specify:

      • Sampling Counter Frequency (for CounterBased, CounterAndTimeBased)

      Warning

      If set, must be >= 0 (0 means disabled)

    • Current Sampling Counter (for CounterBased, CounterAndTimeBased)

      Warning

      If set, must be >= 0 and < Sampling Counter Frequency

    • Sampling Time Frequency (for CounterAndTimeBased, TimeBased), a value, in hours

      Warning

      If set, must be >= 0 (0 means disabled)

    • Last Sampling Date (for CounterAndTimeBased, TimeBased)

  3. Optionally, enter a comment.

  4. Select Update to complete the operation.

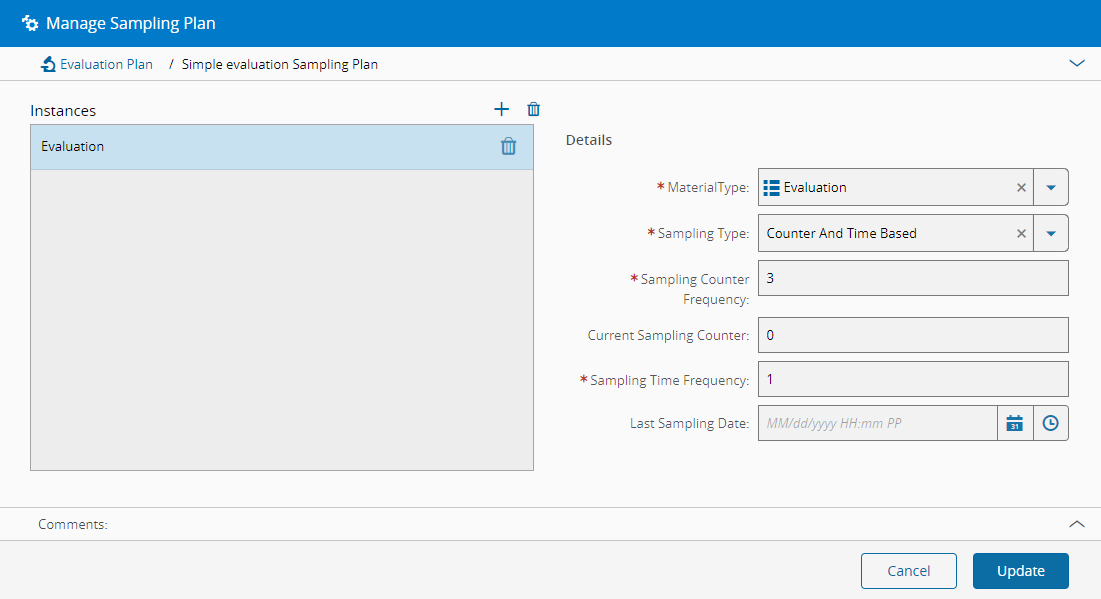

ManageSamplingPlan
