Set Equipment Properties#
This task is used to change a property value in the equipment, therefore it's associated to a particular driver.
Inputs#
| Name | Data Type | Description |
|---|---|---|
<custom list> | <custom> | Input properties |
| Activate | any | Request the equipment to set new values to the configured properties |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |
Settings#

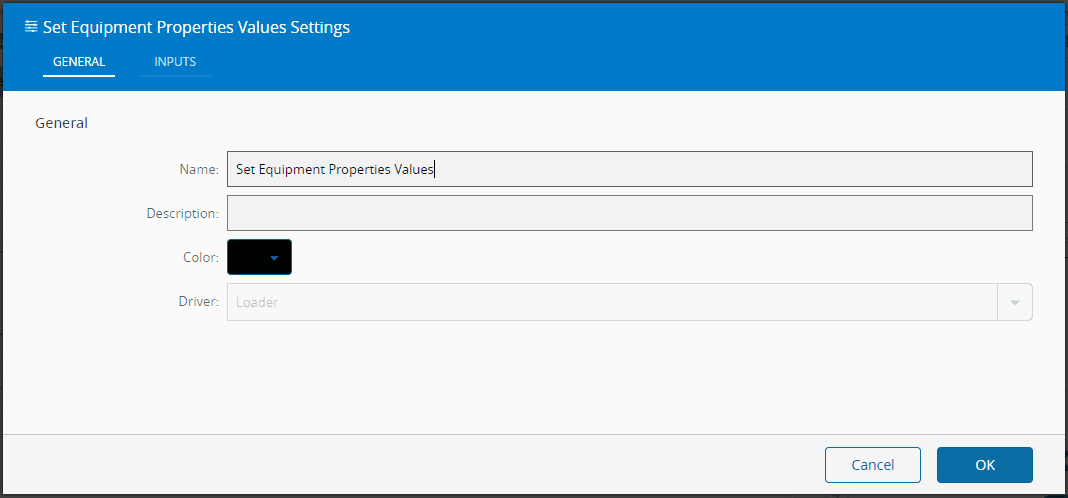

On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Default | Description |
|---|---|---|---|
| Driver | String | Chosen Driver | It shows the chosen driver (cannot be changed) |

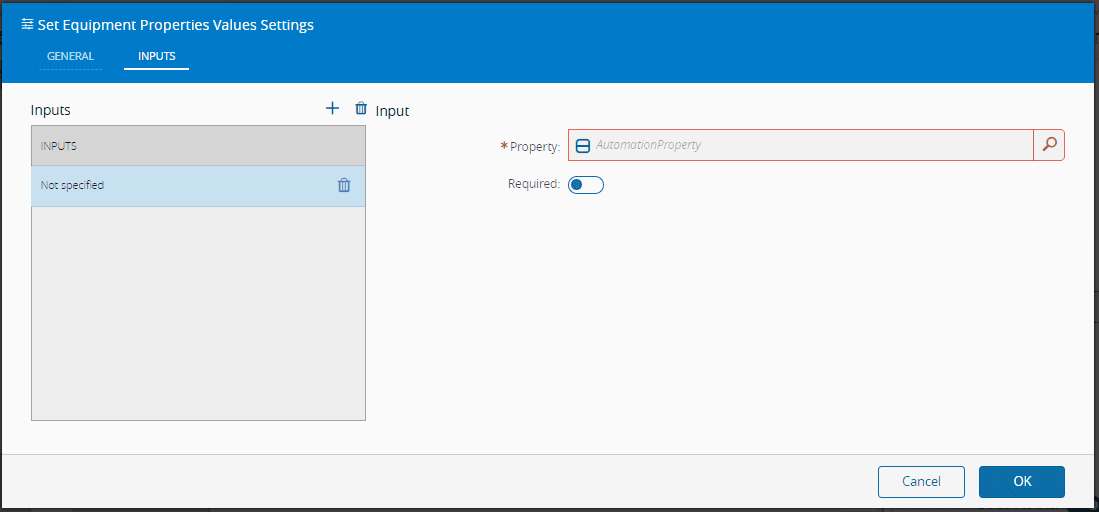

On the Inputs Tab, you have the following settings:
| Name | Data Type | Default | Description |
|---|---|---|---|
| Equipment Property | <EquipmentProperty> | A driver definition property | |
| Required | Boolean | false | If required to activate the task |
 |
Behavior#
In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller). When the task is activated the given input values are sent to the equipment.
Remarks#
All the communication with the equipment is handled by the driver in the backend.
