View Setup#

🔒 Resource.ViewSetup

🔒 Resource.ViewLineSetup

Overview#

This operation is used to view the set up for the processing of one Material at one Resource. This is only a visualization facility.

Note

This use-case can only be triggered from the Resource View as it requires both the context of a Material and a Resource.

Info

When the Material is in a Line Flow, the Resource.ViewLineSetup security feature will be used.

Setup#

No special setup is required other than to meet the preconditions of the transaction.

Preconditions#

  • The applicable Resource exists, it is Active and the Processing Type is Process.
  • The selected Material must exist and be Active, Queued or Dispatched, at the applicable Resource, and must be TopMost.

Sequence of Steps#

Step 1: Resource#

  1. Select a Resource and then select View Setup.
  2. The Resource details will be displayed. Review the information and then Close.

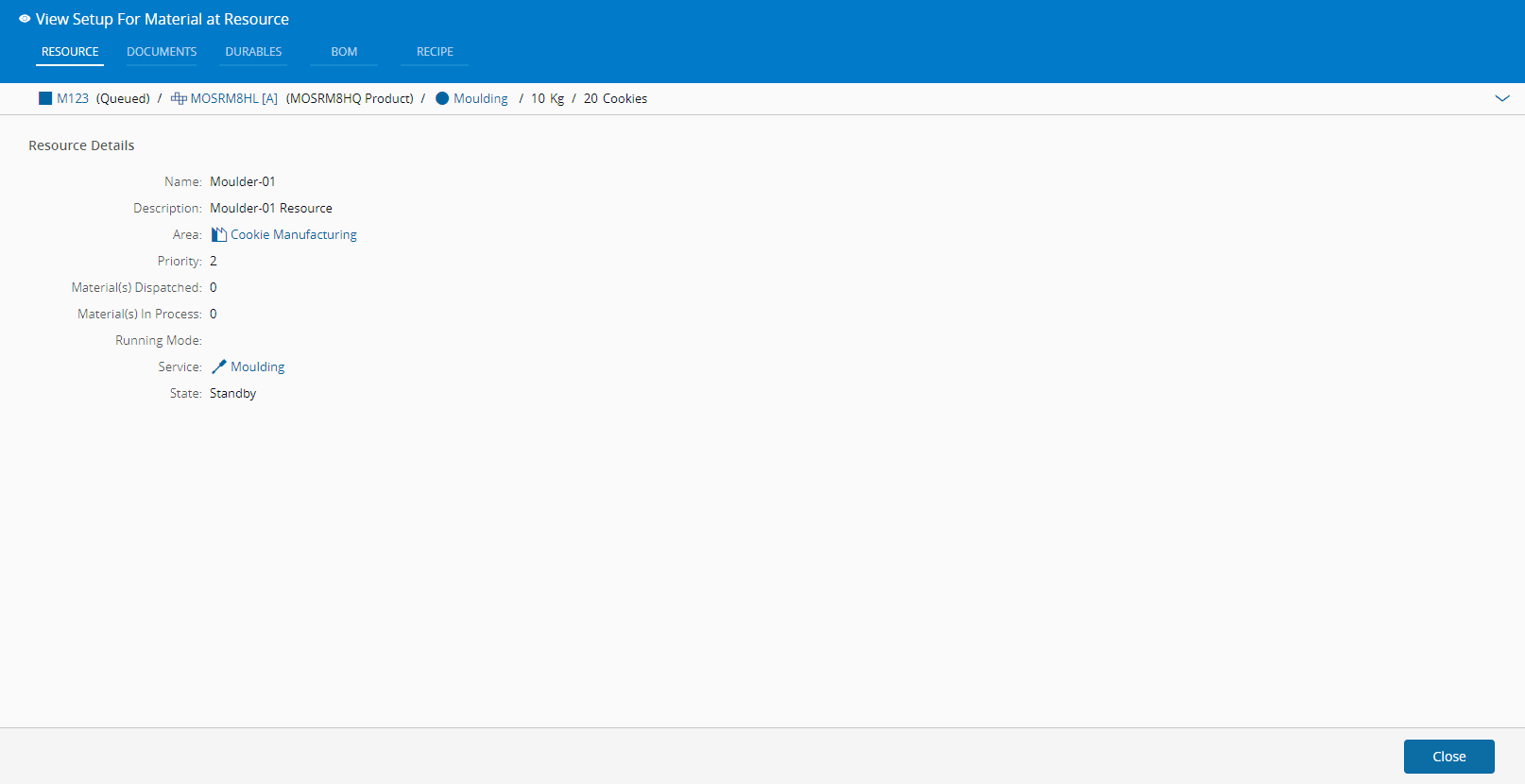

view_resource_setup

Step 2: Documents (only if there are Documents associated with the Resource)#

  1. To open a document, you need to select it.

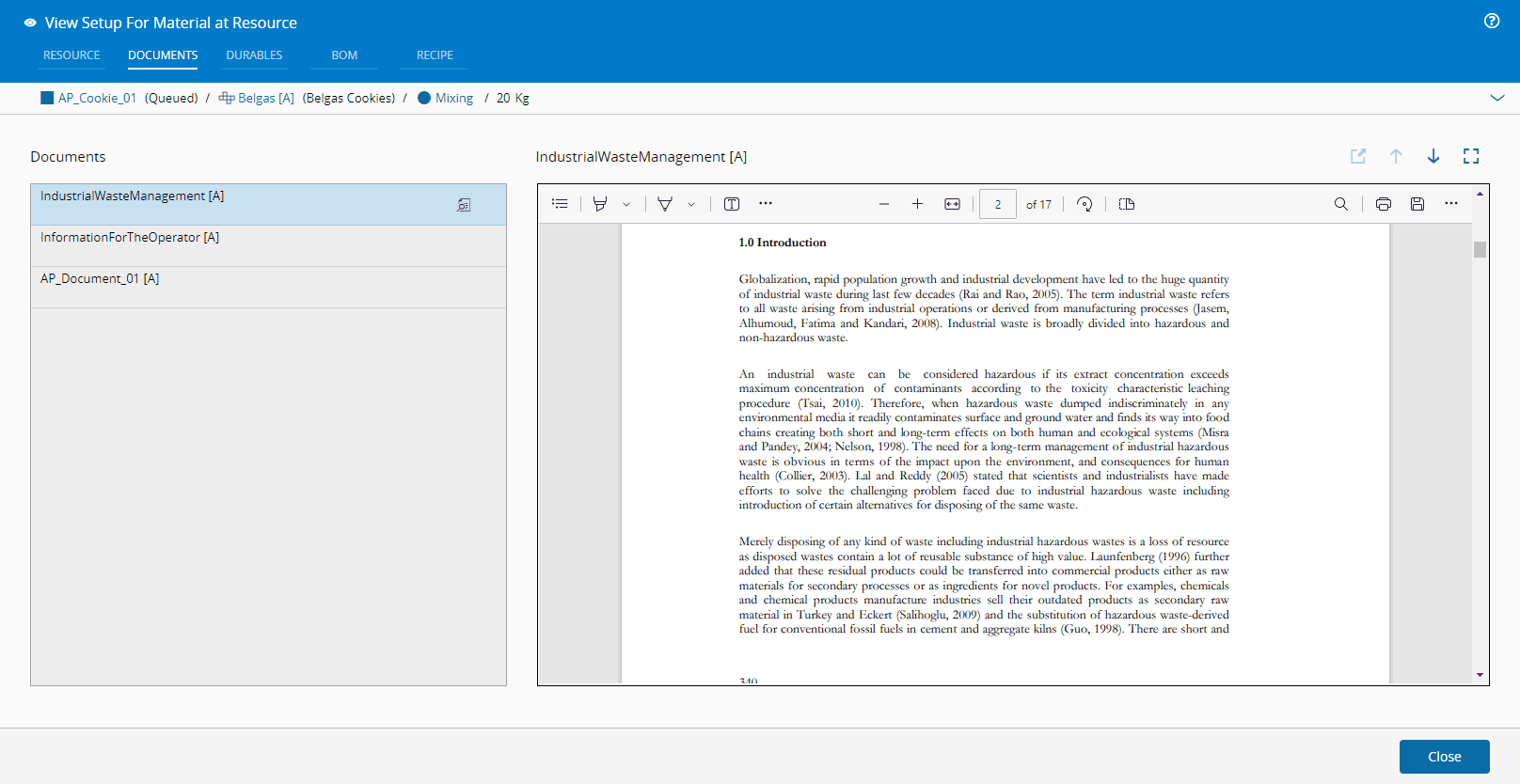

view_setup_documents

Step 3: Durables (only if there are Durables required for the Material at the Step)#

  1. In this step, you can view the details of the current Durables.

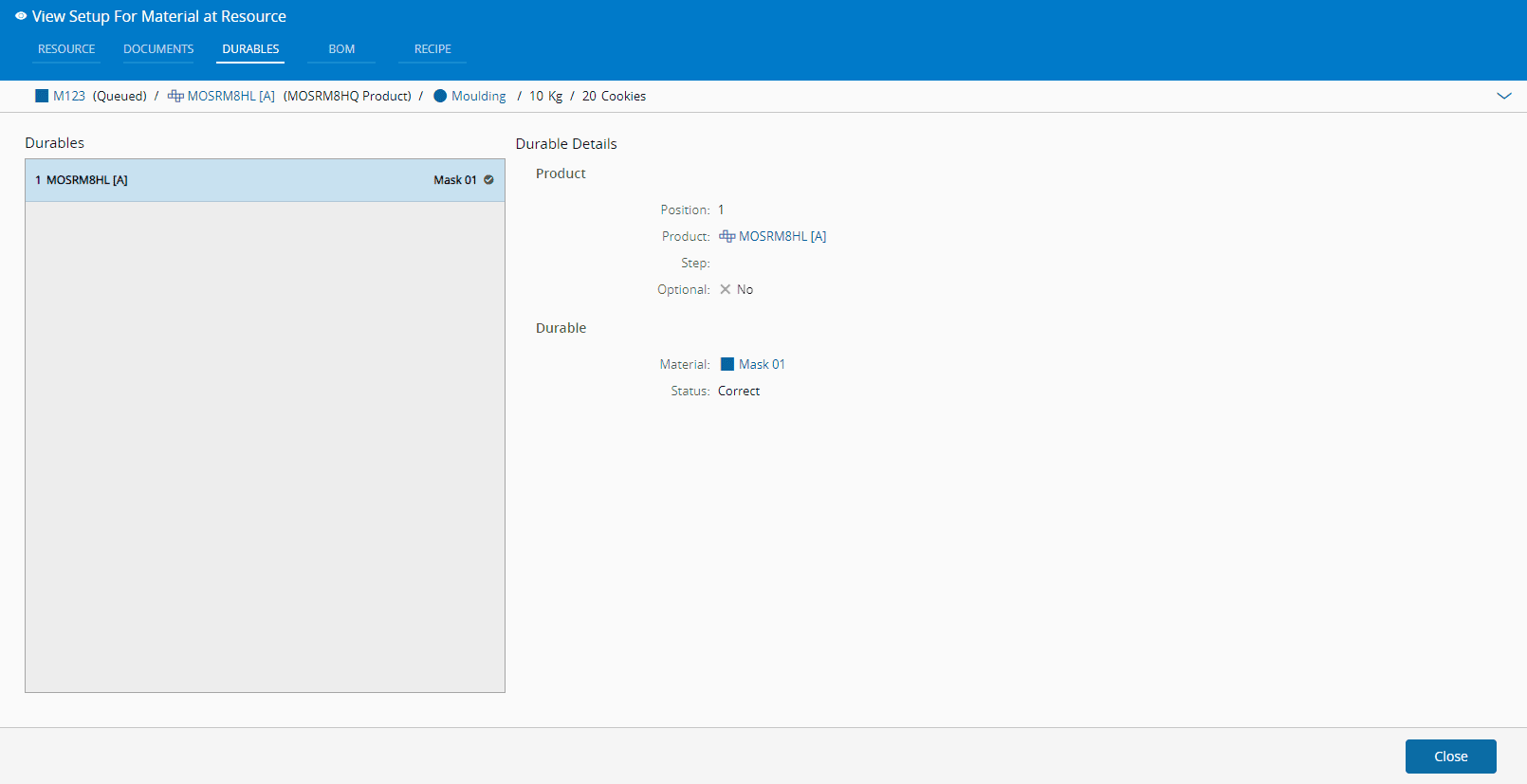

view_setup_durables

Step 4: BOM (only if there is a BOM required for the Material at the Step and only if Material is TopMost)#

  1. This step provides information about the current BOM, if any.

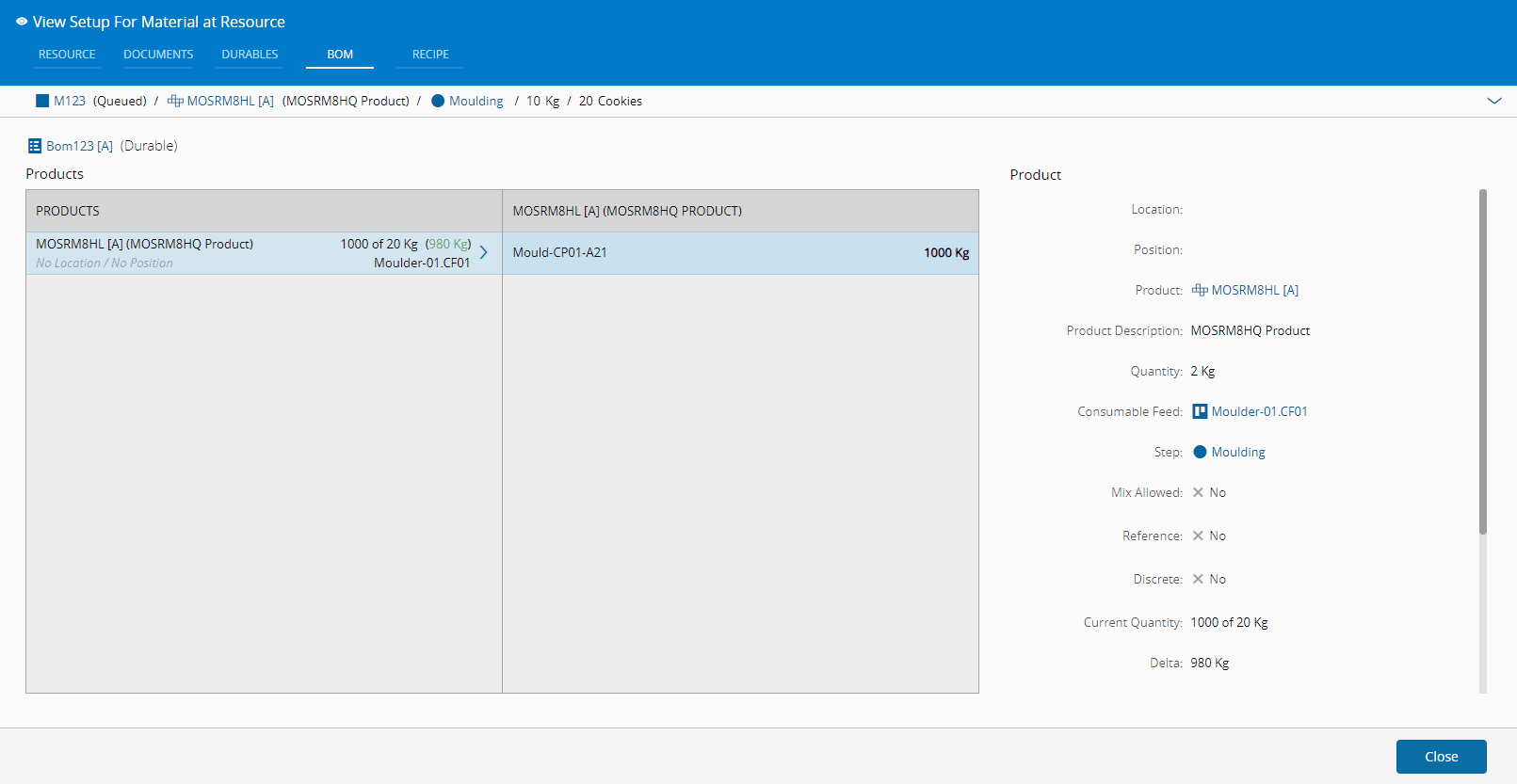

view_setup_bom

Note

If there is a BOM of scope Materials associated to a Material that has characteristics, the BOM will be displayed with the characteristics of the Material.

Info

BOMs are configured in the Step BOM Context.

Step 5: Recipe (only if the Resource on which the Material is being tracked-in is configured to enable Recipe Management)#

  1. This step is used to visualize the Recipe along with its parameter information.

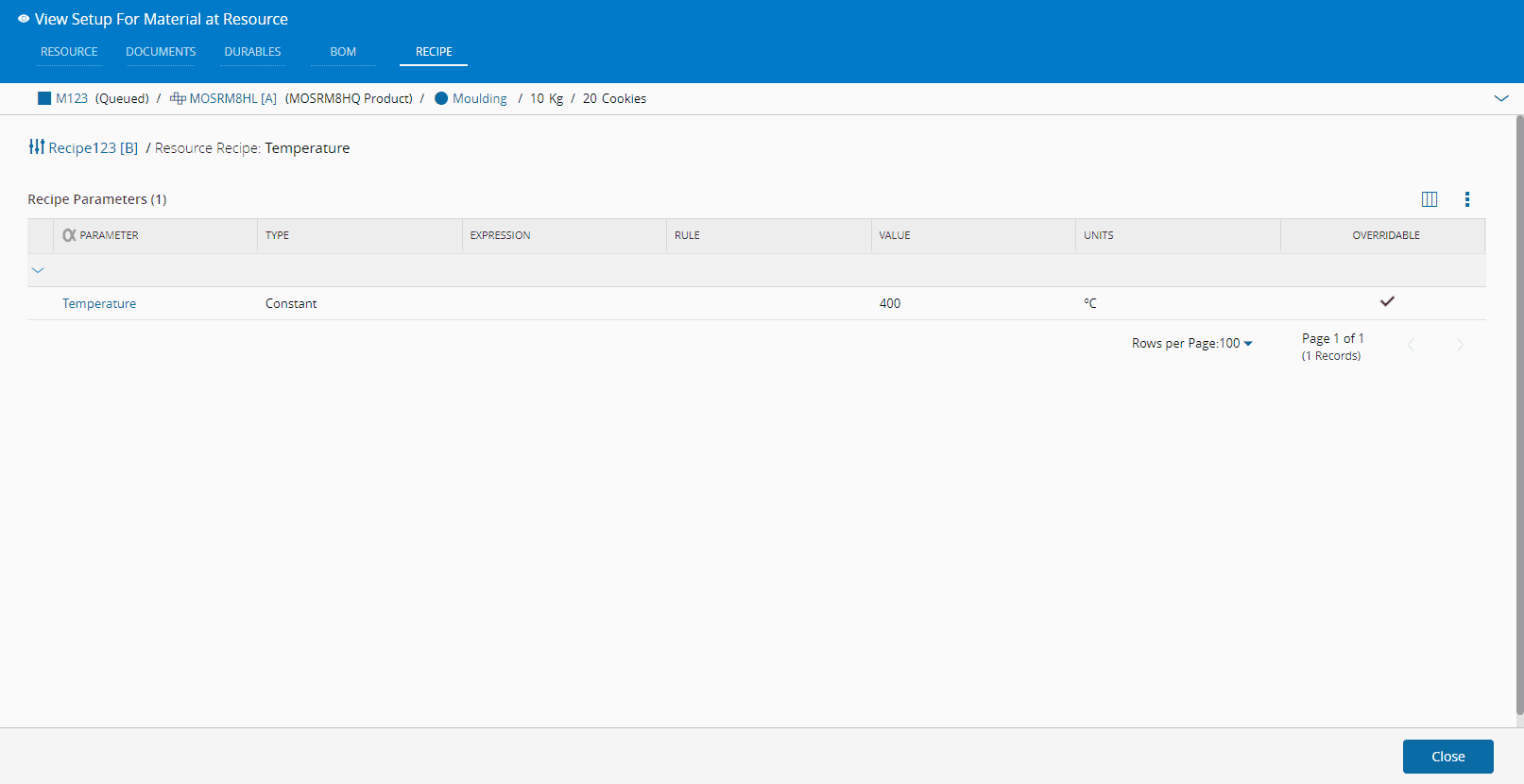

view_setup_recipe

Step 6: Instruments#

The system displays all the Parameters to be measured, showing which ones have at least one available instrument and which ones do not. A list of all attached instruments to the Resource is also displayed.

Note

Recipes are configured in the Service Recipe Context.
