Parent Material E40
Parent Material Handing with E40#

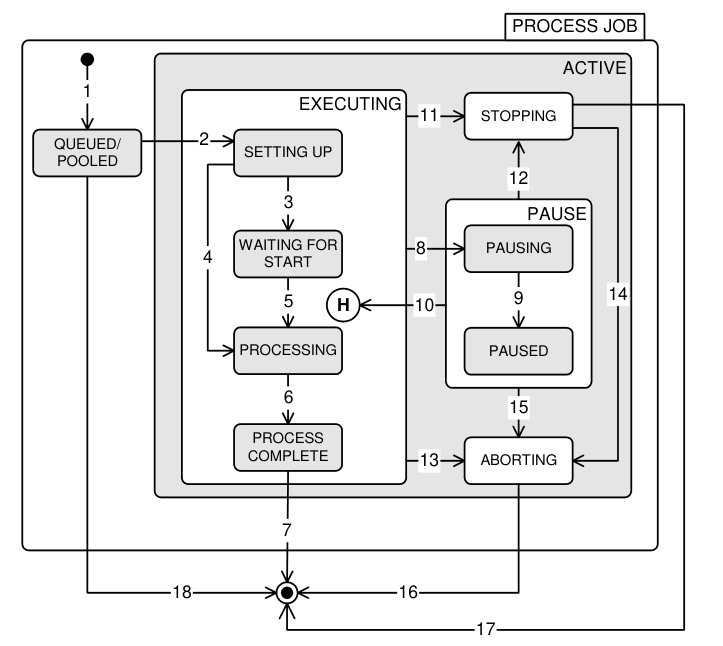

E40 defines a Process Job state model as following:
Currently the following transactions of the state model should be used to trigger the changes using the following workflows:
| Transaction | Transaction Description | Workflow | Action Description |
|---|---|---|---|
| E40 -> 4 | Setting Up to Processing | ProcessStarted_01_EventTosProcessStartedReceived | Changes Parent Material State to In Progress |
| E40 -> 5 | Waiting for Start to Processing | ProcessStarted_01_EventTosProcessStartedReceived | Changes Parent Material State to In Progress |
| E40 -> 6 | Processing to Process Complete | ReadyToUnload_01_EventReceived | Changes Parent Material State to Completed, executes Material Out |
Basic Tips#
Process Job Id variable should be used as the input for the Generic Workflows Process Start and Process Complete corresponding input.
