SECS/GEM Integration Tutorial#

Estimated time to read: 21 minutes

This tutorial covers the integration of a secs/gem interface to update the resource state (using SEMI E10 model) in MES. Updating the state in MES will allow OEE calculation.

SECS/GEM Communication Standard#

Overview#

SECS/GEM (SEMI Equipment Communication Standard / Generic Equipment Model) is a standardized communication protocol used extensively in the semiconductor industry to enable interoperability between semiconductor manufacturing equipment and factory host systems. Developed and maintained by SEMI (Semiconductor Equipment and Materials International), SECS/GEM allows for real-time equipment monitoring, control, data collection, and process automation.

SECS/GEM is built upon several key SEMI standards:

• SEMI E37: High-Speed SECS Message Services (HSMS) - the primary communication protocol.
• SEMI E37.1: HSMS-SS (Single Session) - a simplified version of HSMS designed for point-to-point communication.
• SEMI E4: SECS-I (SEMI Equipment Communications Standard - I) - an older protocol using serial communication.
• SEMI E5: SECS-II - defines message structures and data formats.
• SEMI E30: GEM - outlines the Generic Equipment Model, defining equipment behavior, capabilities, and state models.

Transport Protocols#

SECS/GEM supports two primary communication methods:

HSMS (High-Speed SECS Message Services)#

• Standard: Defined in SEMI E37 and E37.1.
• Transport: TCP/IP over Ethernet networks.
• Mode: Full-duplex communication using socket connections.
• Performance: High-speed, low-latency, and scalable, suitable for modern semiconductor fabs.
• Connection: Uses a client-server model. Typically, the host acts as the client, and the equipment acts as the server.
• Session Control:
  • Establishes a persistent connection between host and equipment.
  • Supports message acknowledgment and ensures data integrity.

SECS-I (SEMI Equipment Communications Standard - I)#

• Standard: Defined in SEMI E4.
• Transport: RS-232C serial communication (or RS-422/485 for extended range).
• Mode: Point-to-point, half-duplex communication.
• Performance: Lower speed and shorter range compared to HSMS, but still used for legacy equipment.
• Message Framing: Uses start and end-of-block characters, checksums, and message headers to ensure reliable data transmission.

Message Structure and Data Formats#

SECS/GEM messages are based on the SECS-II standard (SEMI E5), which defines both the message structure and supported data types. Each message is identified by:

• Stream (S): Represents a category of related messages.
• Function (F): Identifies a specific message within a stream.

For example, S1F1 is a "Are You There?" request, and S1F2 is the corresponding "On-Line" reply.

Supported Data Types#

• Integer: 1, 2, 4, or 8 bytes (signed or unsigned).
• Floating Point: 4 or 8 bytes (IEEE 754 format).
• ASCII: Variable-length character strings.
• Boolean: 1 byte (true or false).
• Lists: Hierarchical, nested lists that can contain other data elements or lists.

Message Acknowledgment#

SECS/GEM uses a request-reply mechanism to ensure message delivery. Each primary message (request) is followed by a secondary message (reply) confirming receipt or providing requested data.

GEM (Generic Equipment Model) Functionality#

The GEM standard (SEMI E30) defines the behavior and capabilities that equipment must provide, ensuring consistency and interoperability across different vendors. Key features include:

Host-Initiated Control#

• Remote Commands: Start, stop, pause, resume, and abort equipment operations.
• Recipe Management: Upload, download, and select recipes for production processes.
• Correlation with Streams:
  • Stream 2 (S2): Equipment Control messages, such as S2F41 (Remote Command Request) and S2F42 (Remote Command Acknowledge).
  • Stream 7 (S7): Process Program Management, including S7F1 (Process Program Send) and S7F5 (Process Program Request).

Event Notification#

• Event Reports: Automatic notification of predefined events, such as process milestones, alarms, and state changes.
• Custom Events: User-defined events for specific equipment behavior.
• Correlation with Streams:
  • Stream 6 (S6): Event Reports and Data Collection messages, such as S6F11 (Event Report) and S6F12 (Event Report Acknowledge).

Data Collection#

• Trace Data Collection: Periodic sampling of process parameters, sensor readings, and equipment status.
• Collection Events: Triggered data collection based on specific events or conditions.
• Variable Access: Real-time access to equipment variables, including both static configuration data and dynamic process data.
• Correlation with Streams:
  • Stream 6 (S6): Data Collection messages, including S6F1 (Data Collection Initialization Request) and S6F2 (Data Collection Acknowledge).
  • Stream 9 (S9): Data Acknowledgment messages, such as S9F1 (Data Message Not Allowed) and S9F9 (Unrecognized Device ID).

Alarm Management#

• Alarm Detection: Real-time monitoring of equipment status to detect abnormal conditions.
• Alarm Reporting: Immediate notification to the host when alarms occur.
• Alarm Acknowledgment: Host acknowledgment to confirm receipt of alarm notifications.
• Correlation with Streams:
  • Stream 5 (S5): Alarm messages, including S5F1 (Alarm Report) and S5F2 (Alarm Acknowledge).

Equipment State Models#

• Control State Model: Defines the equipment's control mode (e.g., Local, Remote, or Offline).
• Processing State Model: Represents the current operational state of the equipment (e.g., Idle, Processing, or Error).
• Correlation with Streams:
  • Stream 1 (S1): Equipment Status messages, such as S1F3 (Equipment Status Request) and S1F4 (Equipment Status Data).

For Connect IoT an event is an S6F11.

Automation Manager#

The Automation Manager entity represents a server process that will run and control a number of instances. This can be seen as an Operating System that will execute several processes. Each of the processes will be responsible to either connect to an interface of an equipment (network address, shared folder, etc) using a protocol driver, or execute the logic intended to model the behavior of the automation (what to do when the equipment raises an alarm, send a stop command, etc).

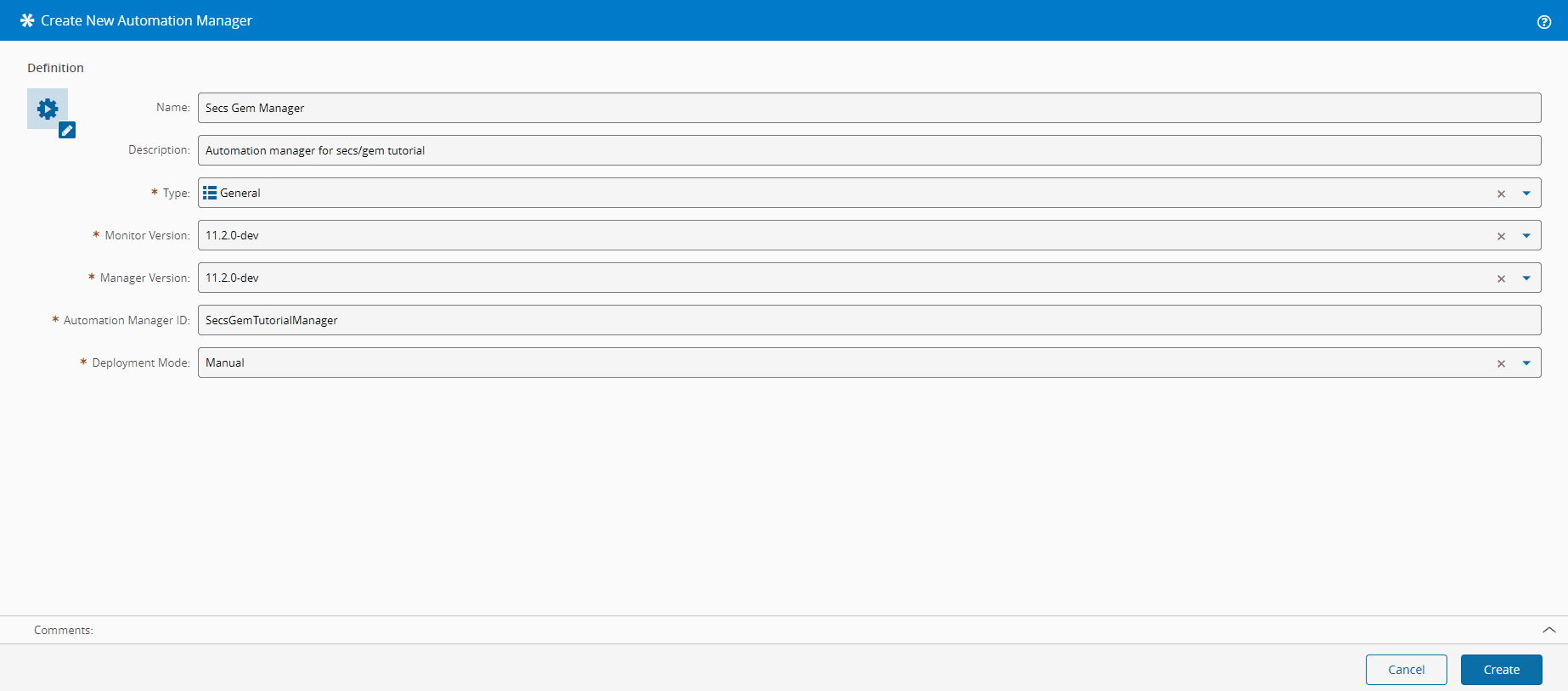

Go to Automation > Automation Manager and select the New button.

Enter the name, description, type and provide a unique name (in this example SecsGemTutorialManager) as the Automation Manager ID.

Select the Create button.

After creating an Automation Manager, download the automation manager. In order to do that:

Select the Download button.

Select the Authenticate With Current User radio button.

Select the Download button. This will download a .zip file.

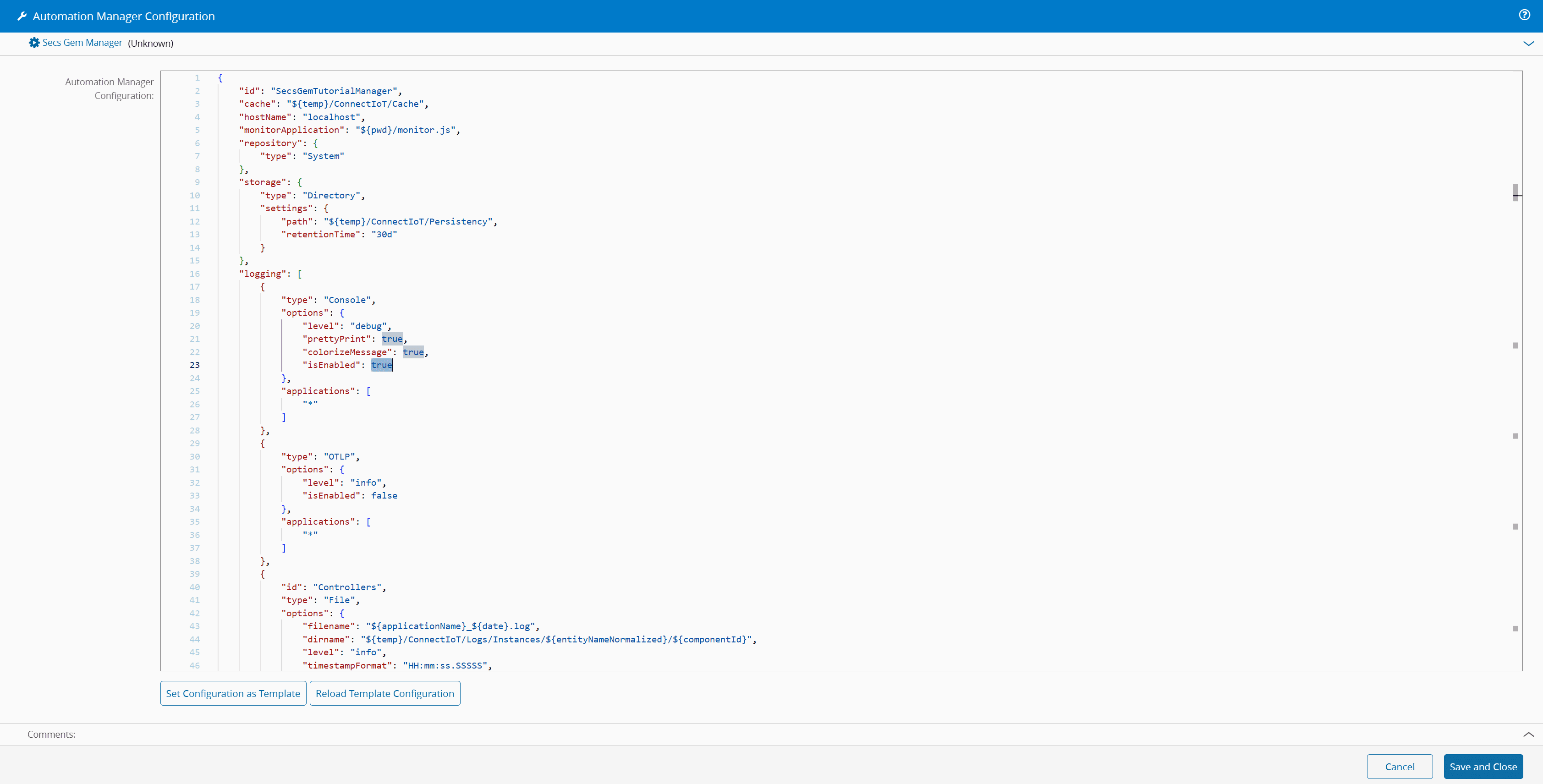

Select the Configuration in the automation manager page.

We will be using the console logging transport, change the isEnabled to true.

Automation Protocol#

The Automation Protocol entity represents the technical specification of the protocol communication interface, implemented by the corresponding communication driver package. It holds the protocol parameters, the protocol data types and extended data meaningful to the protocol implementation. The default values for the protocol parameters are imported directly from the communication driver package, but they can be overridden as well.

Go to Business Data > Automation Protocol and select the Newbutton.

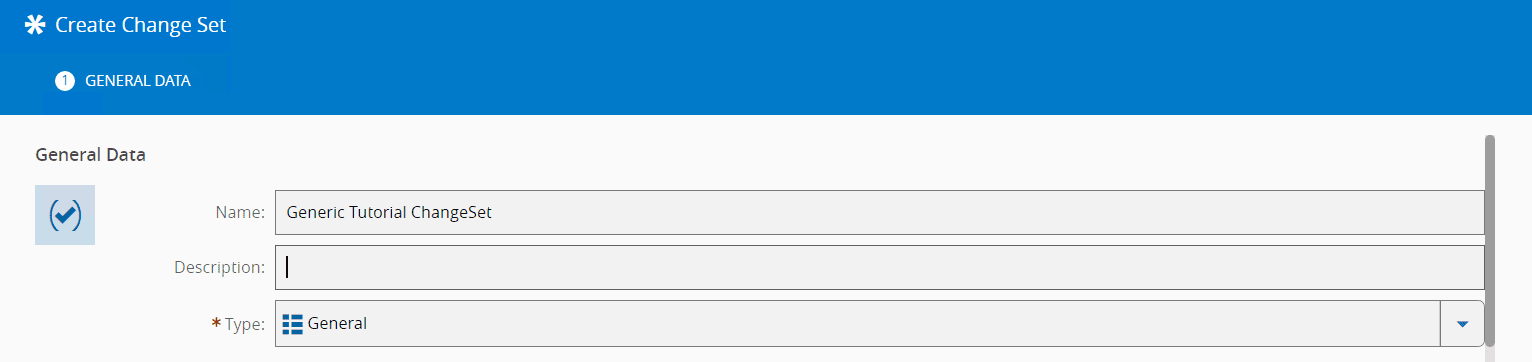

Select the Create button to create a new ChangeSet or select an existing one. If creating a new one, enter the name, type and select the Create button.

Select the Next button.

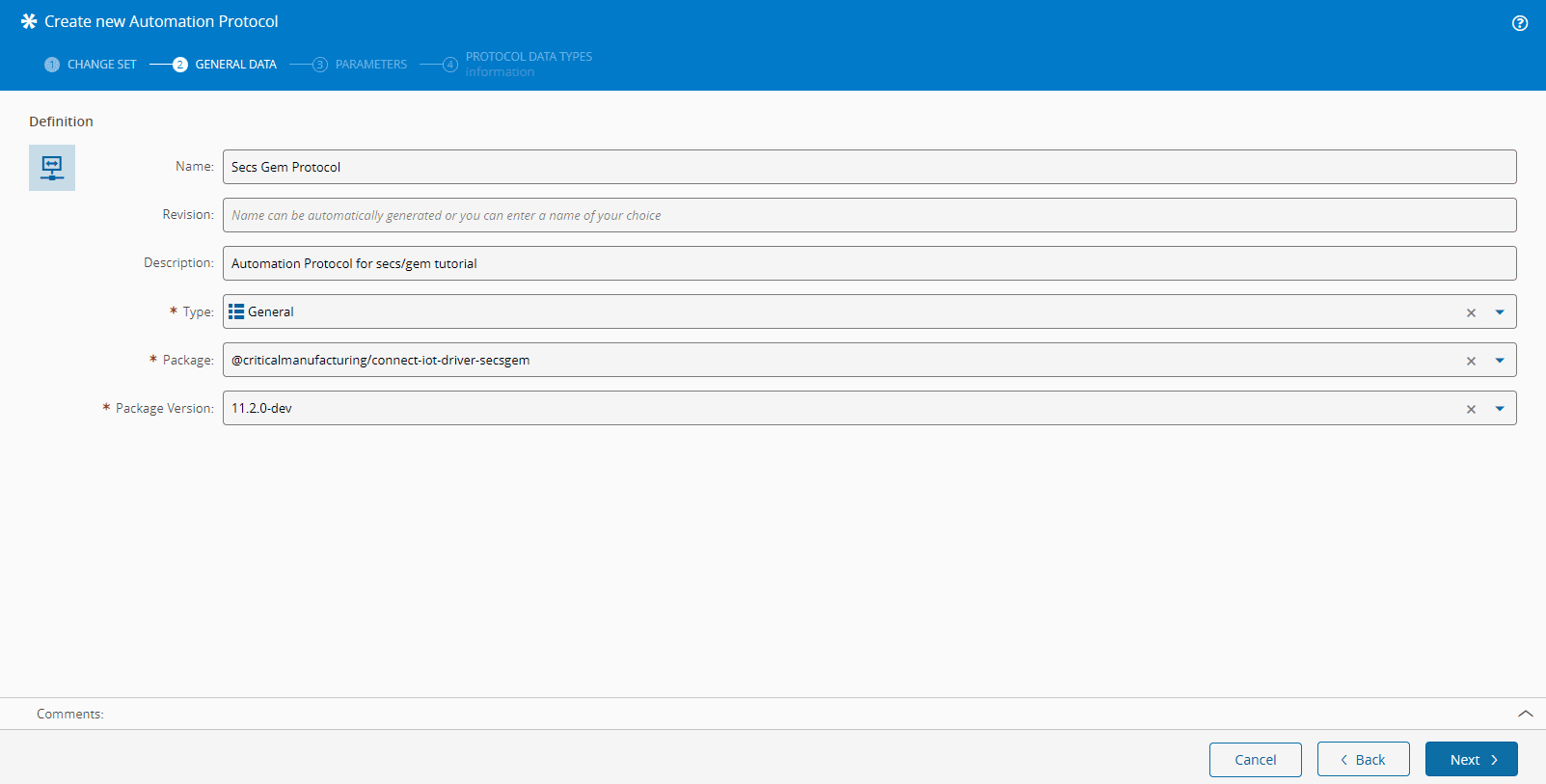

In the general data, provide:

• A name that represents the automation protocol;
• A description;
• The type (for classification purposes);
• @criticalmanufacturing/connect-iot-driver-secsgem as the package name;
• The package version.

Select the Next button.

Set the default values for the SECS/GEM protocol parameters.

Select the Next button.

Select the Create button.

The Automation Protocol state becomes Created.

Automation Driver Definition#

The Automation Driver Definition entity represents the characteristics of a particular equipment type interface according to the vendor specification. A list of properties, events, the relation between them, commands and command parameters, must be chosen according to the requirements of the integration to implement.

This tutorial, will require only one property (SVID in SECS/GEM) and one event (CEID in SECS/GEM) to detect the equipment changing its process status.

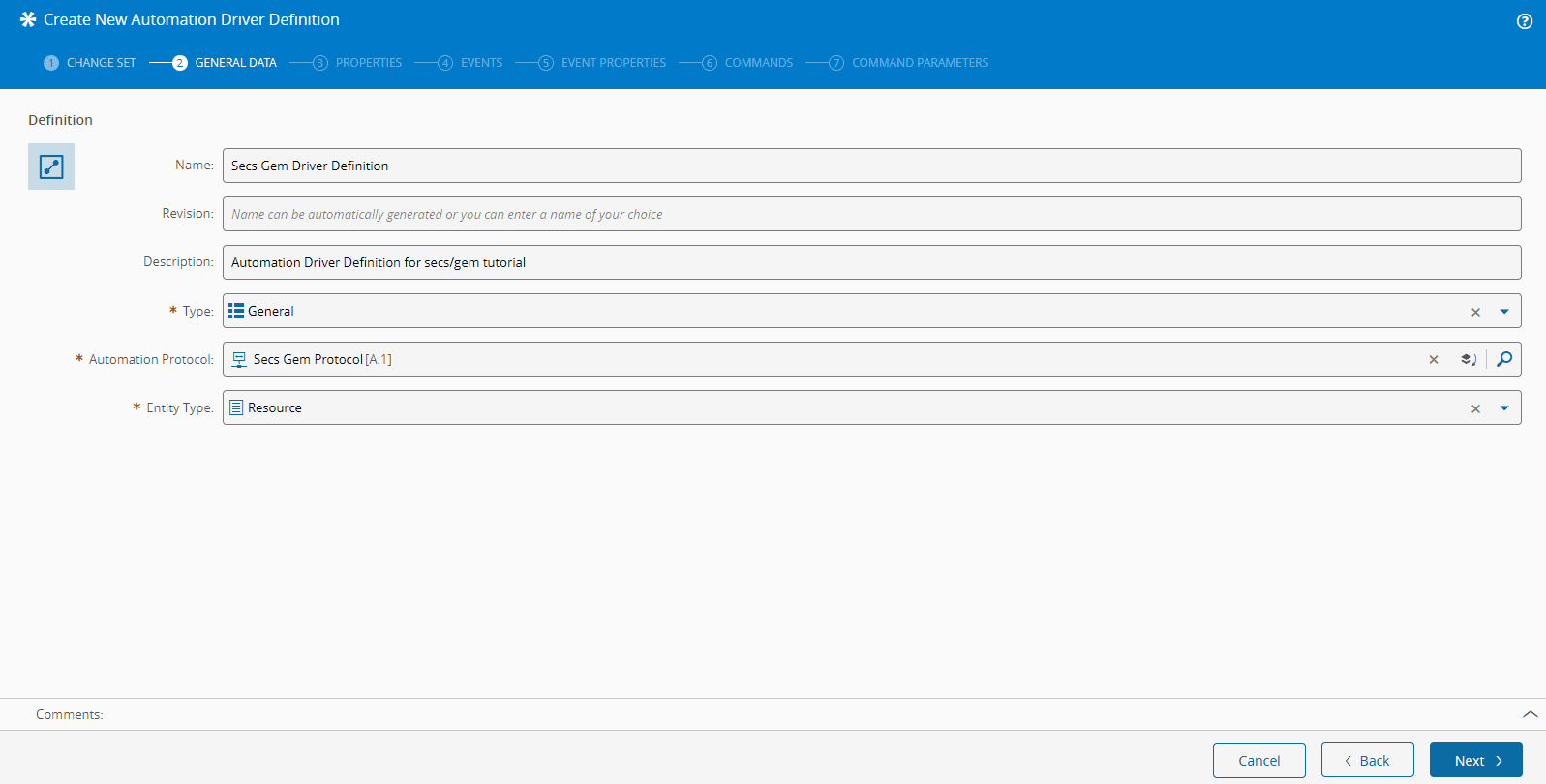

Go to Automation > Automation Driver Definition and select the New button.

Select or create an existing ChangeSet. Select the Next button.

In the general data, provide:

• A name that represents the automation driver
• A description
• The type (for classification purposes)
• The name of the previously created Automation Protocol - Secs Gem Protocol.1
• The Resource type as the entity type for the new Automation Driver Definition.

Select the Next button.

Let's assume that according to the specification, the VID representing the equipment status is 2011, of data type U1 (Format) and it is a Status variable (SV).

Table: VID Property

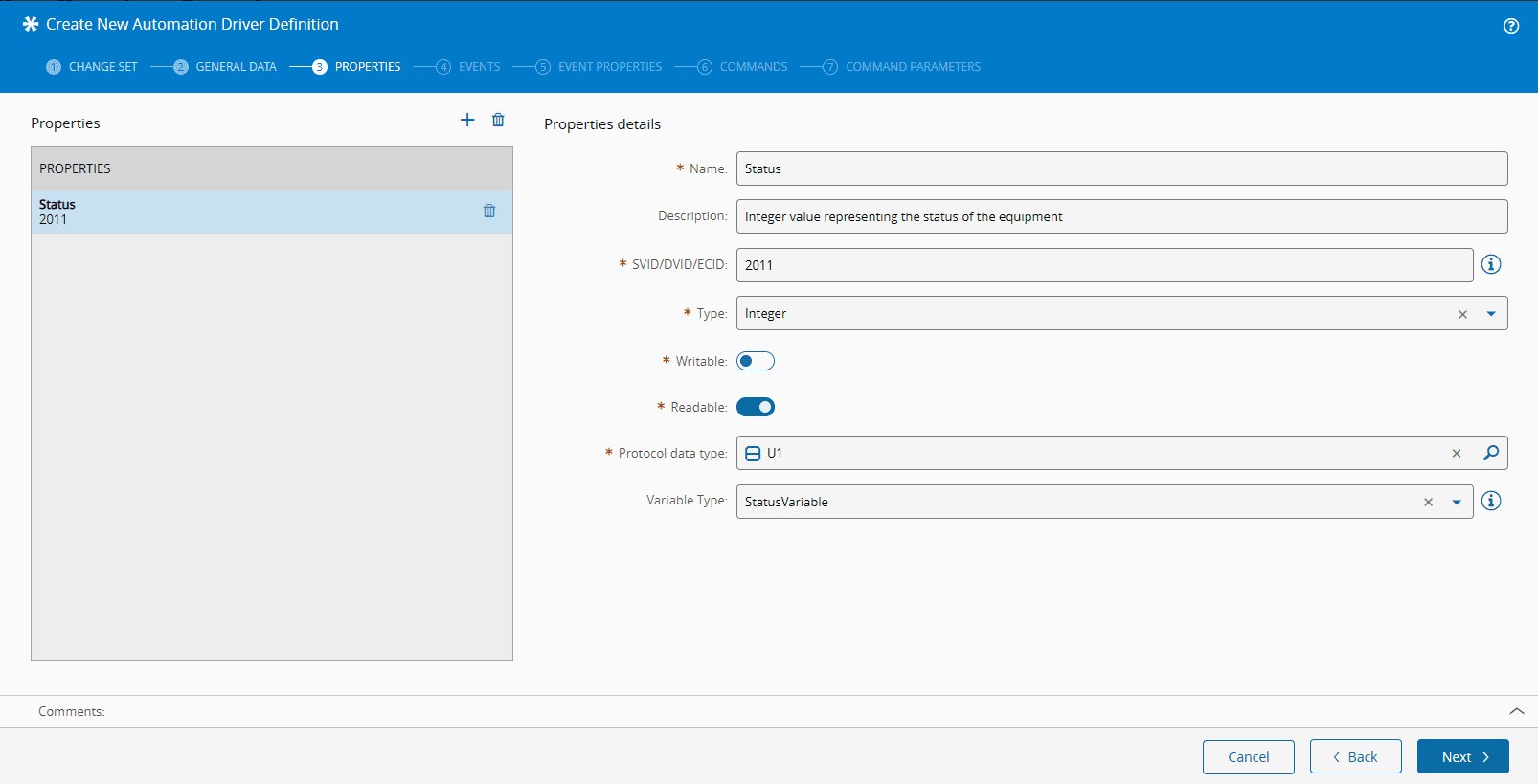

Add a new entry to the list of Properties by selecting the + button.

In the property details, provide:

• A name that represents the variable name;
• A description;
• The device id which is the SVID in SECS/GEM;
• The type of data of the variable;
• The writable and readable flags (in this case, we cannot change the value);
• The data type of the variable in SECS/GEM format;
• Finally, the SECS/GEM variable type (Status variable, data variable or constant) ;

Select the Next button.

Let's assume that according to the specification, the CEID representing the equipment changing status event is 1000.

Table: CEID Property

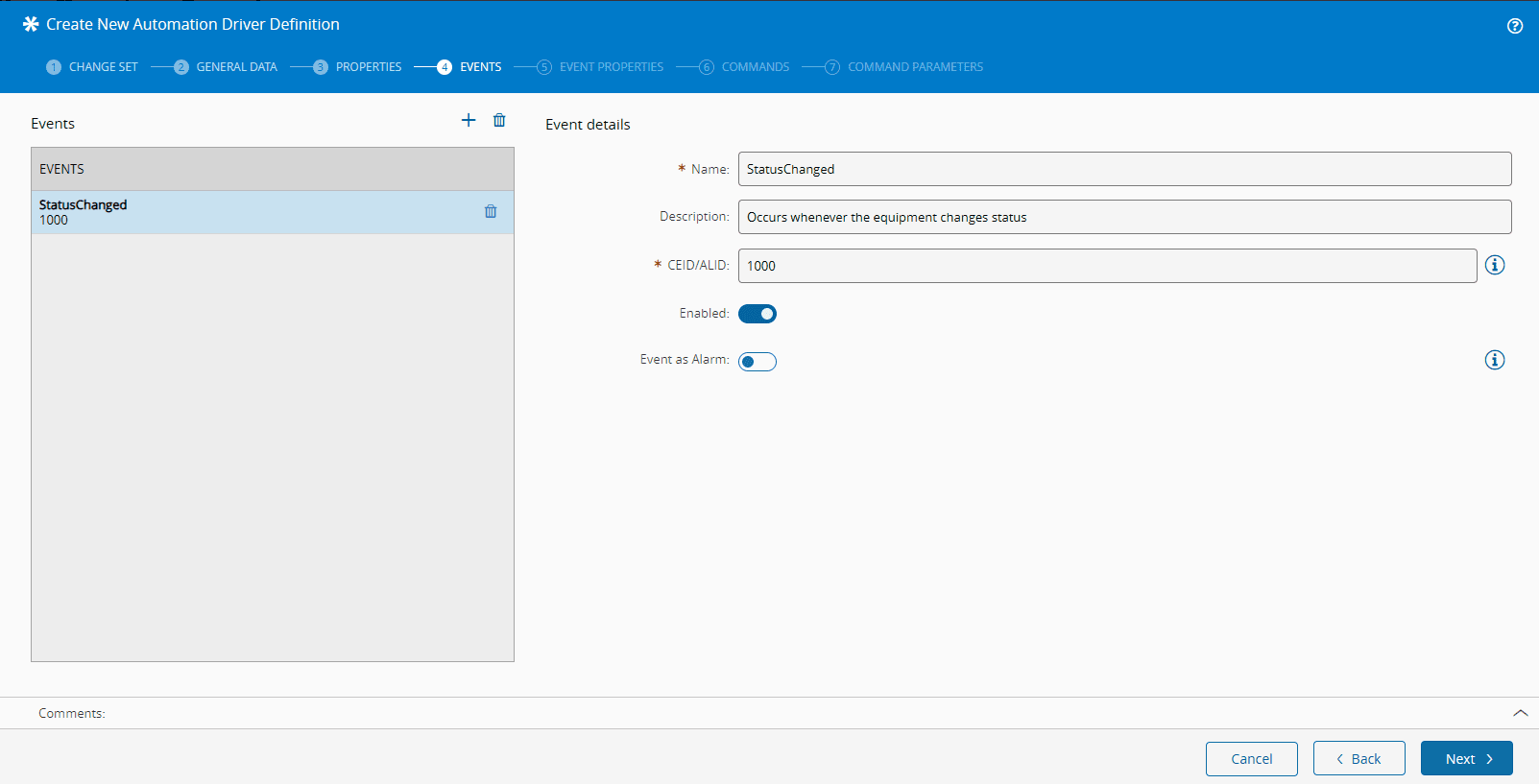

Add a new entry to the list of Events by selecting the + button.

In the event details, provide:

• A name that represents the event name;
• A description;
• The device id which is the CEID in SECS/GEM;
• The enabled flag (in this case, turn it on. If off, the event will be ignored);
• The event as alarm flag (identify this event as an alarm in SECS/GEM. In this case, turn it off);

Select the Next button.

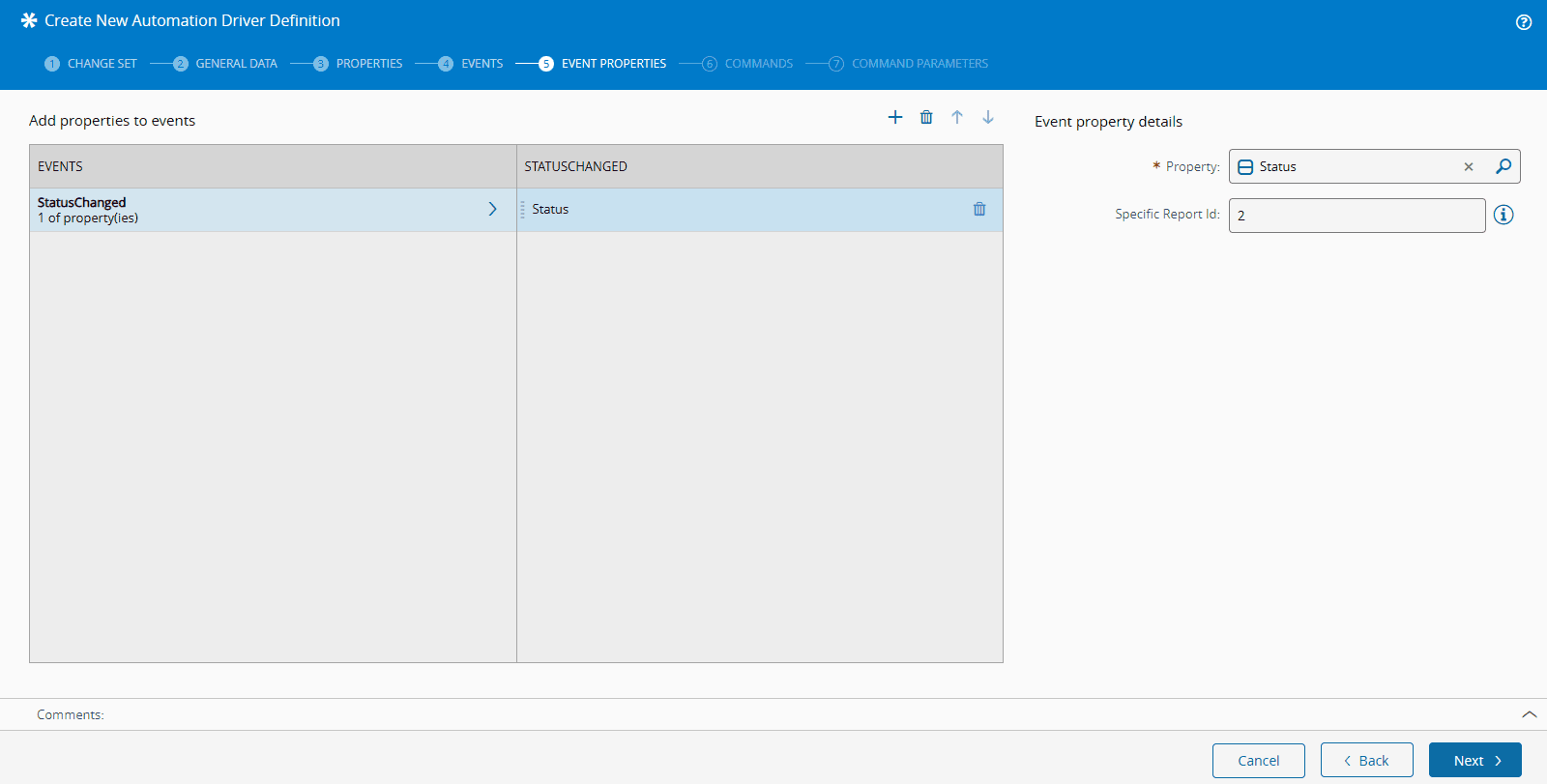

In the following step, we combine the information between events and properties. The list of configured events is available on the left side. For each event, add the associated properties on the right side according to the vendor specification. If a specific report id is also provided by the specification (RPTID in SECS/GEM) , you should set it as well.

Let's assume that according to the specification, the RPTID associated to the event StatusChanged is 2.

Table: Status changed event

Select the Next button.

This tutorial does not focus on the equipment commands, so skip the Commands panel by selecting the Next button.

Skip the Command Parameters panel as well by selecting the Create button.

The Automation Driver Definition state becomes Created.

Automation Controller#

The Automation Controller will orchestrate the behavior between the equipment and the MES system. In this tutorial it will detect the change of the equipment status property and map it to a SEMI E10 Resource State, according to the following table:

Table: Mapping SEMI E10 Resource State to a property

Go to Automation > Automation Controller and select the New button.

Select or create an existing ChangeSet. Select the Next button.

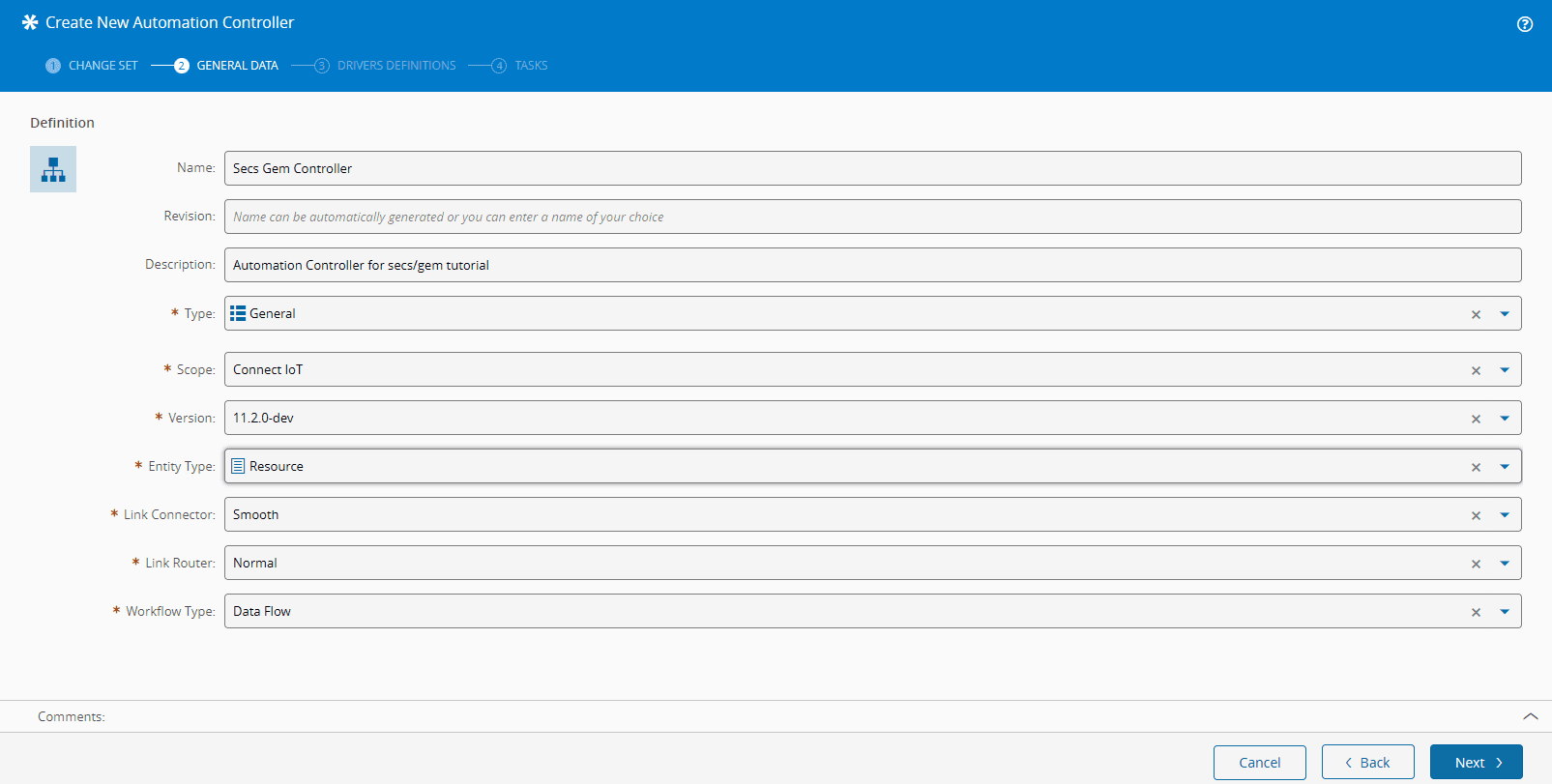

Provide a name, description, type, controller package version and set Resource as the entity type for the new Automation Driver Controller.

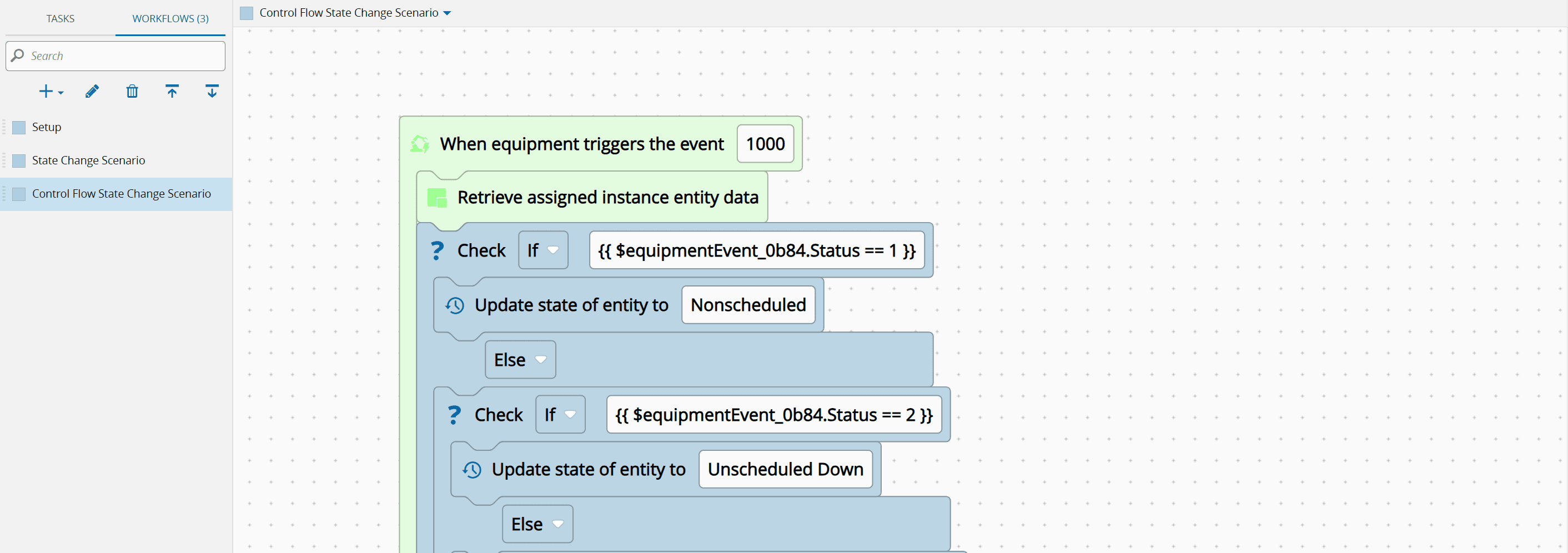

For this tutorial we will use Data Flow, Connect IoT also supports Control Flow as a different engine of ingestion of events and commands. You can also customize how your workflow behaves by configuring the link router and connector.

Select the Next button.

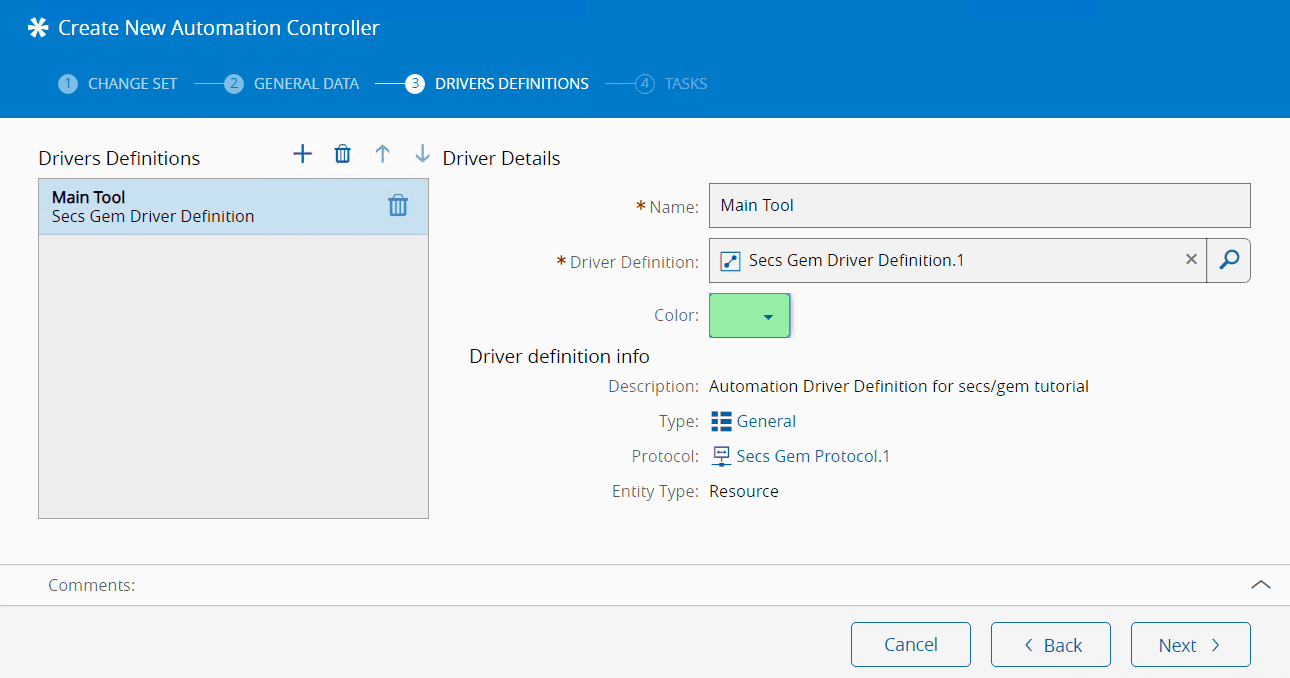

In the drivers definitions panel, add a new driver definition by selecting the + button. Provide a friendly name for it, select the previously created Automation Driver Definition and choose a color to paint the tasks that will be associated to this driver definition.

Select the Next button.

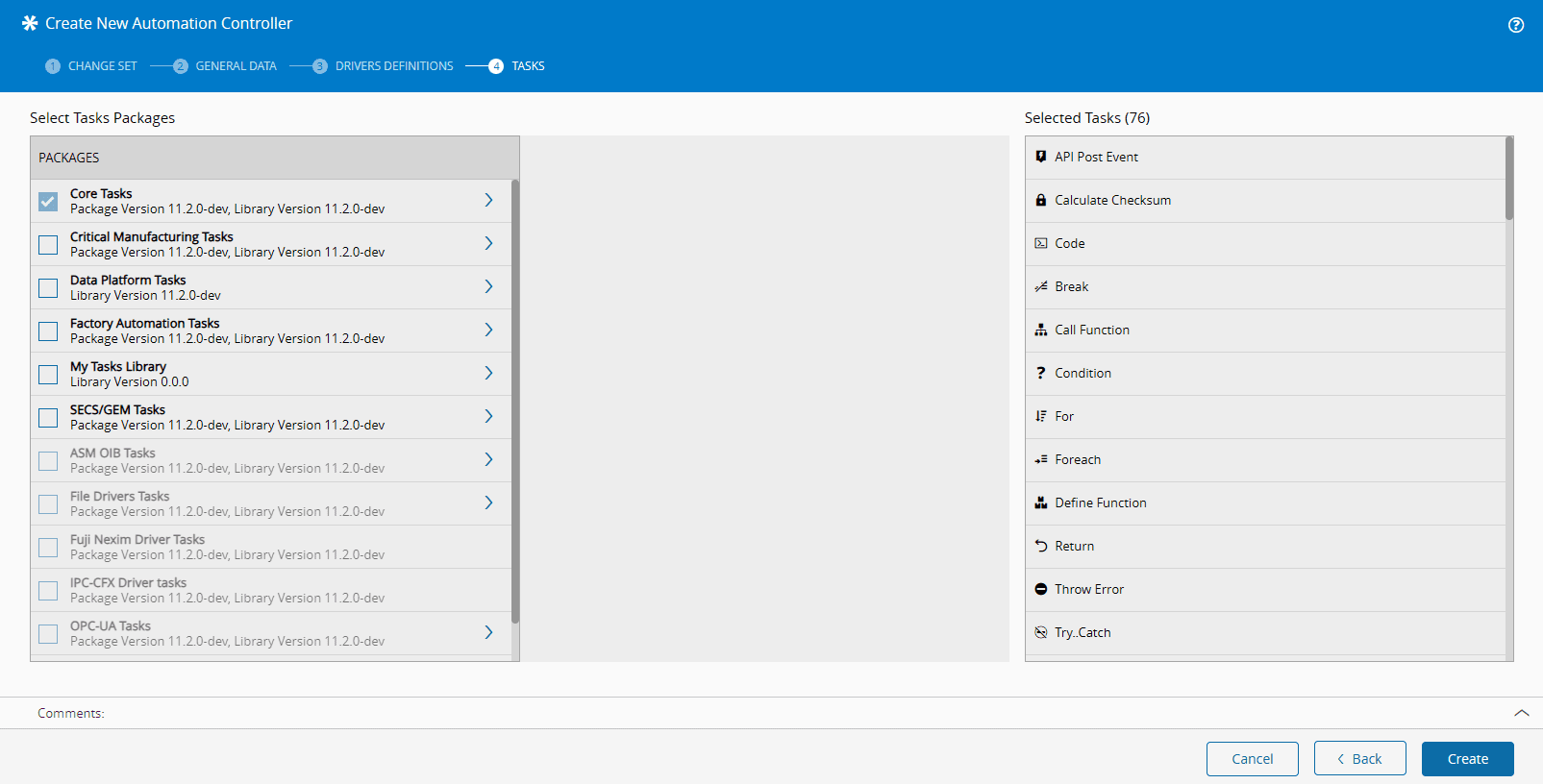

In the tasks panel, select the task packages that will be relevant for the integration itself and available in the workflow designer. For this tutorial, the Core Package - connect-iot-controller-engine-core-tasks - is enough.

• If a package matches the mandatory filters, it will be selected in the package list and cannot be unselected. All others will be unselected;
• If a tasks package is listed with a dependency and doesn't match the filter, it should appear as disabled in the list of packages available for selection. Specific tasks follow the same rules, meaning that the system can have a configured package with some tasks that only work along with specific drivers and scopes;
• The GUI sorts the available package in the list by the following order:
  • Mandatory (and selected)
  • Available for selection
  • Disabled

Select the Create button.

The Automation Controller state becomes Created.

Automation Controller Workflow#

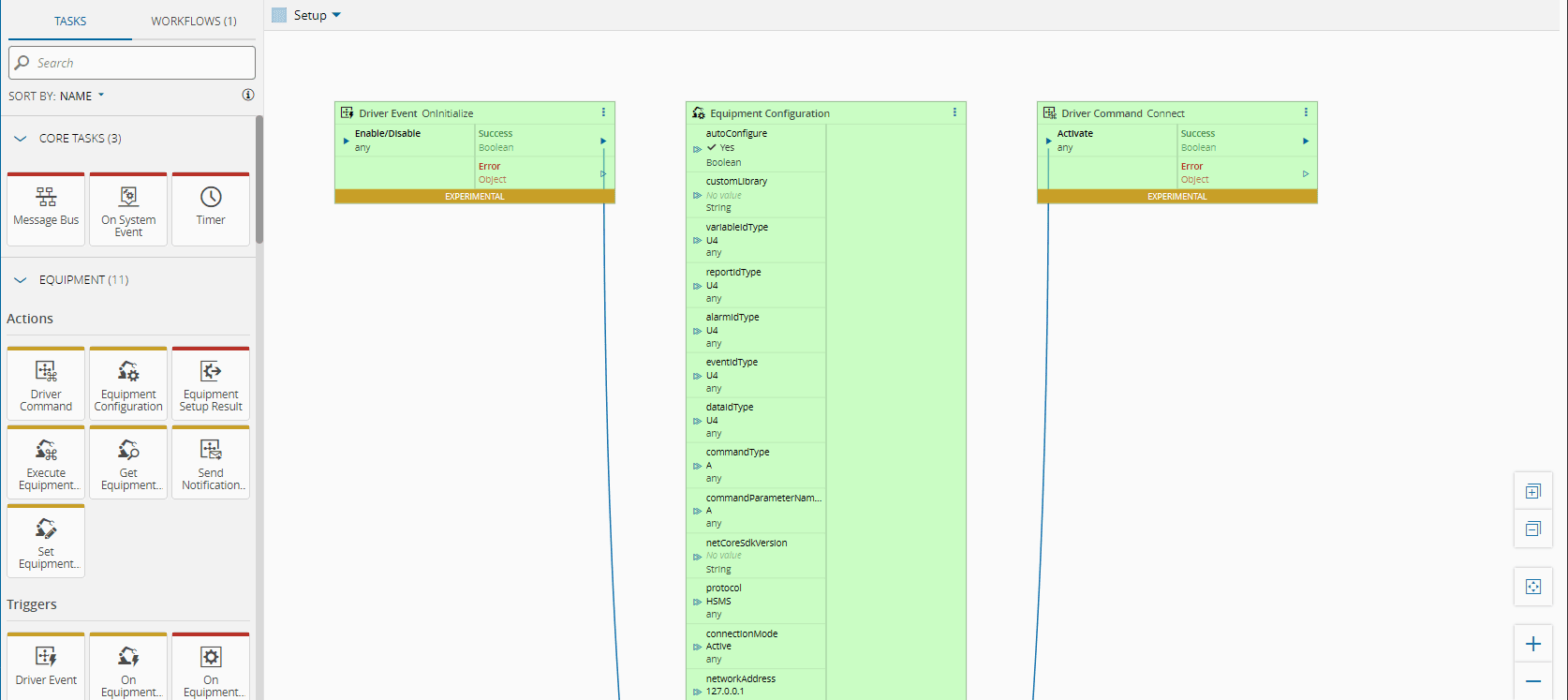

The workflow designer is where the user can define and orchestrate the integration business logic. The workflow template already comes ready to connect with a Setup page.

The Setup workflow page has three tasks within it:

• Driver Event - OnInitialize
• Equipment Configuration
• Driver Command - Connect

The Driver Event OnInitialize will signal the start of the driver lifecycle, then the equipment configuration will expect all the definitions related with the driver and when it's ready it will send a Driver Command to Connect.

State Change Scenario#

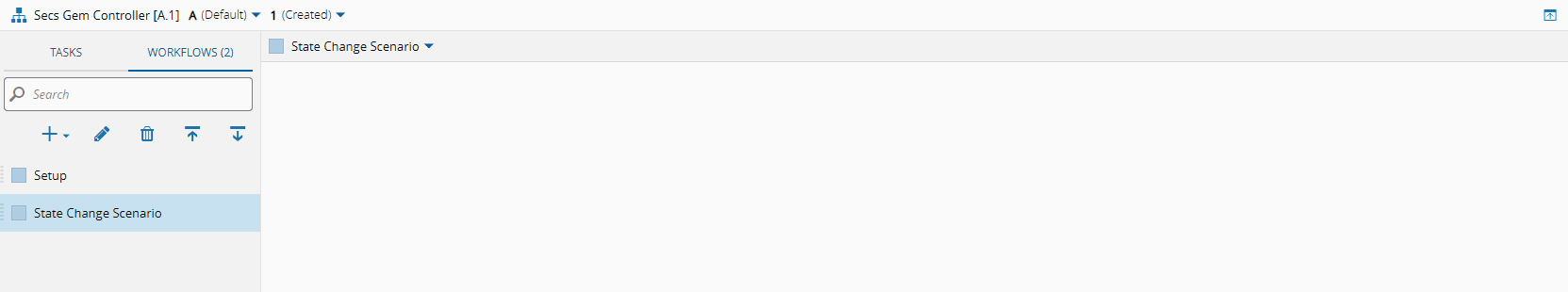

Create a new Page and give it a meaningful name. For example, State Change Scenario.

You should save the changes in order to not lose them. Just select the Save button at the top ribbon. You may save the changes whenever needed from now on, after performing any change within the workflow.

Drag and drop the following tasks to the State Change Scenario page designer:

• Entity Instance (will represent the MES Resource entity in runtime)
• On Equipment Event (Will be triggered when the state changes in the equipment/simulator)
• Switch (Will decide the final Semi E-10 state name)
• Adjust State (Will change the state of the resource in MES)

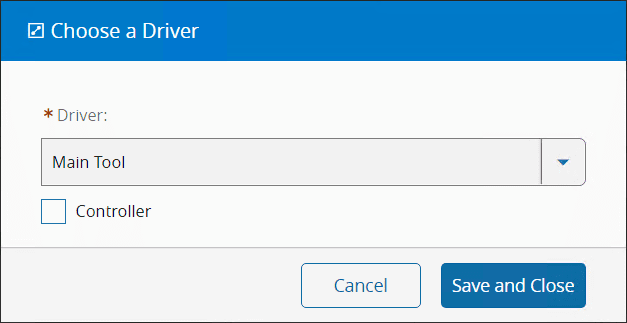

When adding the Entity Instance task, it will be asked for you to choose between the entity associated to one of the drivers or the entity associated to the controller. Choose the Main Tool driver and select the button Save and Close.

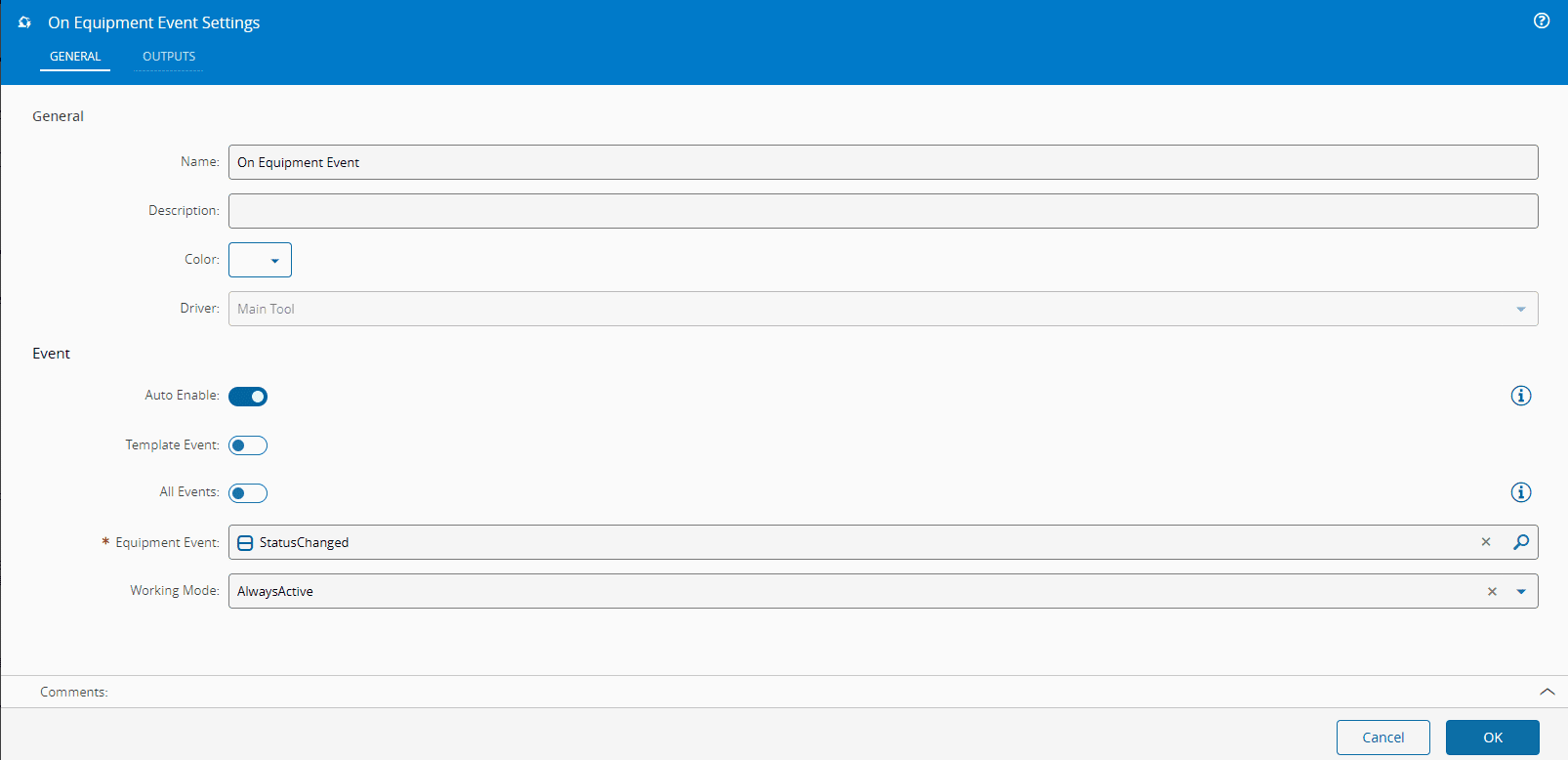

Go to the Settings of the On Equipment Event task and select the event StatusChanged. Select the OK button.

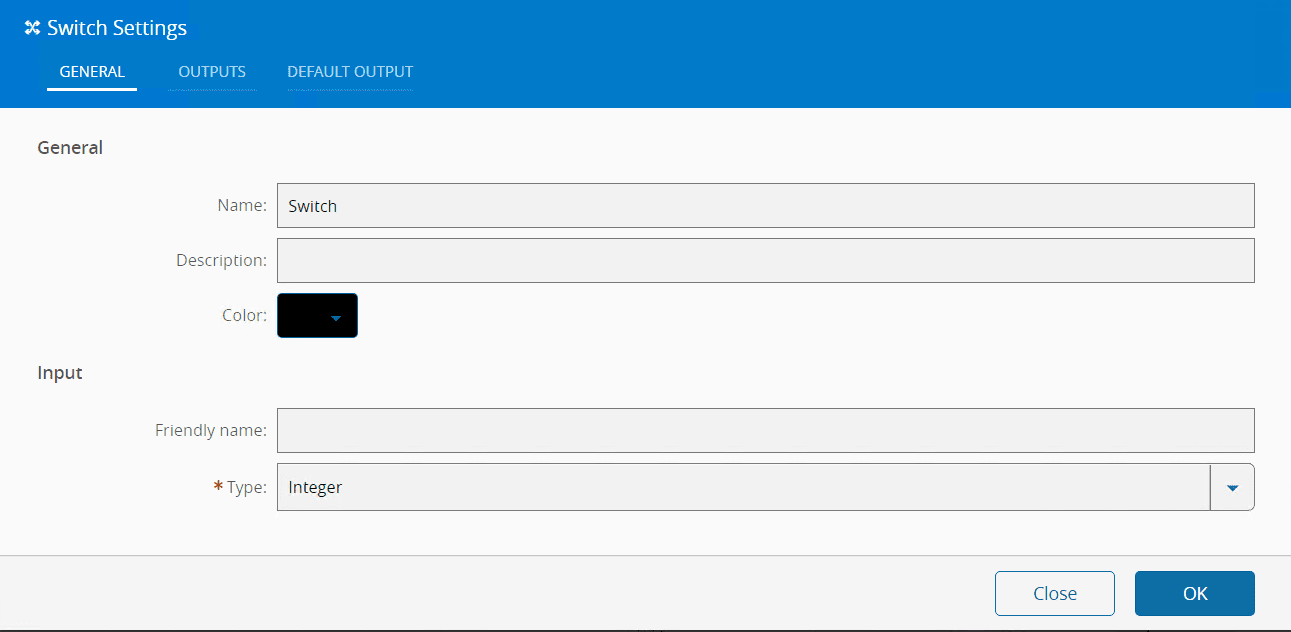

Go to the Settings of the Switch task and set the Input Type to Integer.

Select the OK button.

In the Outputs panel, add 6 output entries. For each one, configure the Name, Equals to, Type and Value, as shown below. All output types are String and the Equals to goes from 1 to 6.

Select the OK button.

Now we can link the tasks together, in order to produce the desired result of detecting the change of the equipment status and map it to a SEMI E10 Resource State in the MES for the resource entity that will be associated to this controller:

• Link the Status output of the On Equipment Event task instance to the valueinput of the Switch task instance;
• Link the Instance output of the Entity Instance task instance to the entity input of the Adjust State task instance;
• Link each one of the outputs of the Switch task instance to both toState and Activate inputs of the Adjust State task instance.

It should look like this.

So, basically what will happen behind the scenes, is that whenever the driver process detects the trigger of an event defined in the Automation Driver Definition, it will forward it to the controller process. The controller process by its turn will check if the event configured in the On Equipment Event matches the event sent by the driver. If so, the Switch task instance gets activated, and compares the Statusvalue with the switch case. When a match is found it activates the Adjust State task instance. The Adjust State task instance will update the SEMI E10 state for the given Resource Entity Instance in MES.

Automation Controller Instance#

Now that we defined the intended behavior through the Automation Controller, we need to associate it to an entity and a manager.

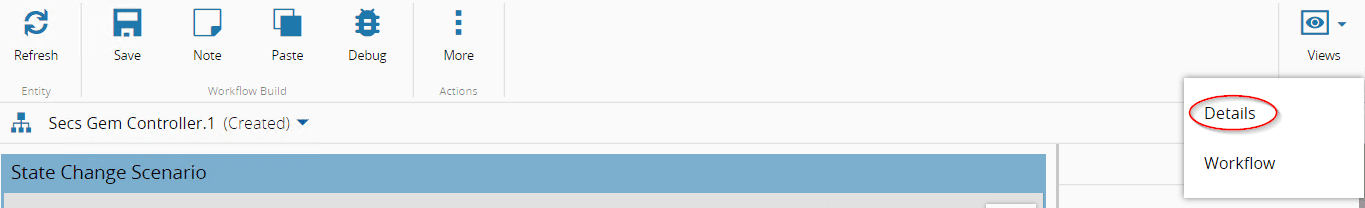

Go back to the workflow details. Go to Views > Details.

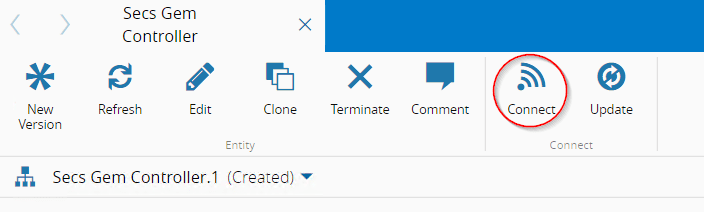

Select the Connect button at the top ribbon.

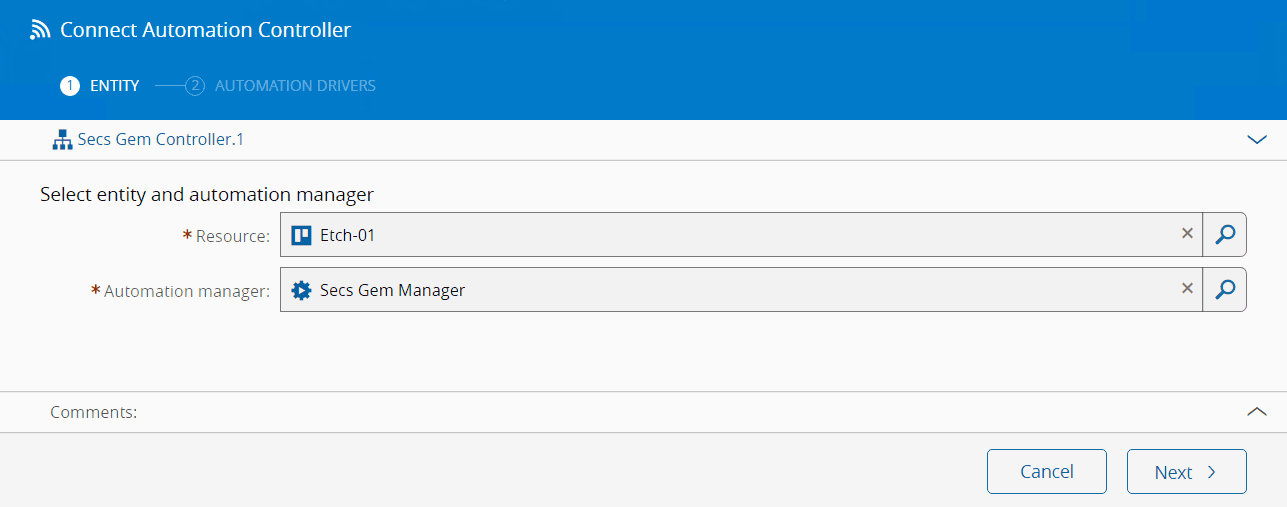

You must provide the resource and the automation manager this instance will be associated to. Choose the resource and select the automation manager previously created in this tutorial.

Select the Next button.

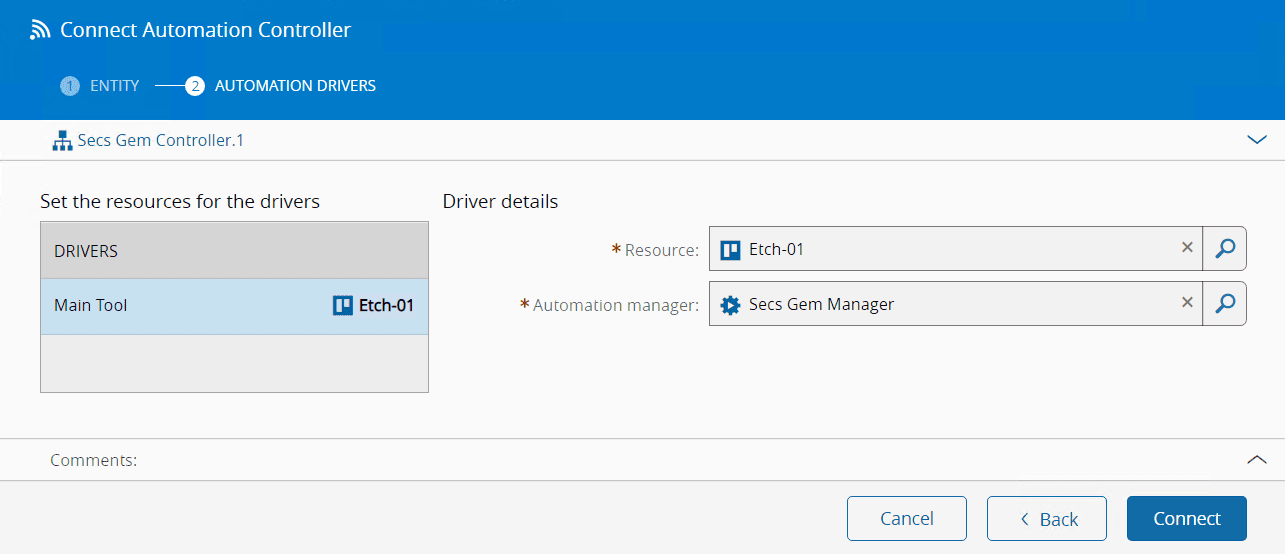

In the Automation Drivers panel select the Main Tool driver and choose the same resource chosen before for the controller (Etch-01 in this example).

Select the Connect button.

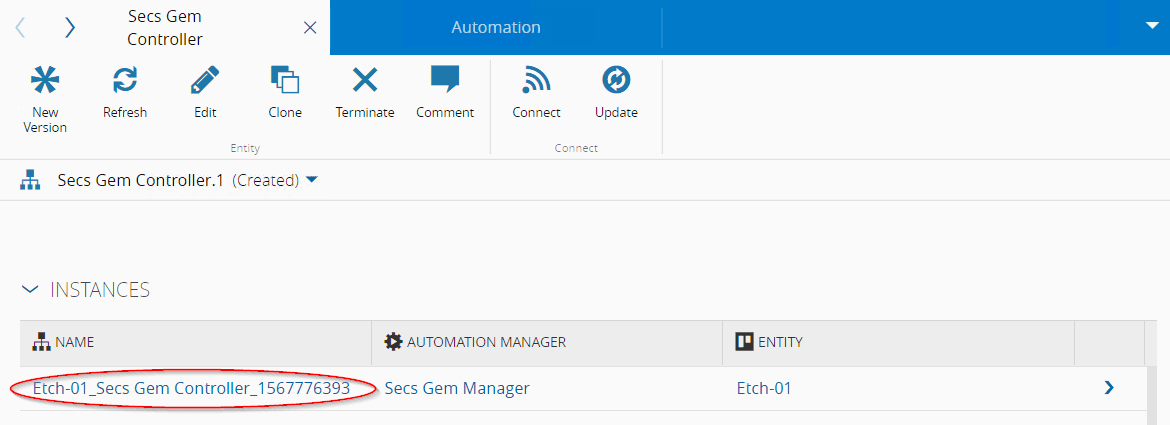

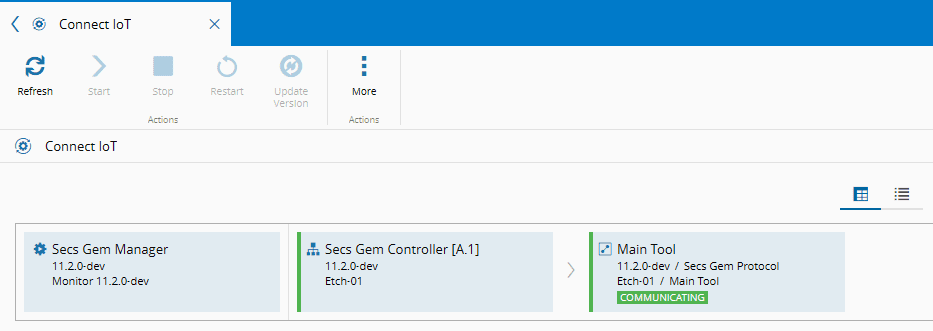

Now, if you scroll down you can find a summary of the instances for this controller. In this case, you will see the one that was just created.

You can also check for the controller instance and the associated driver instance if you go to the Automation > Connect IoT menu item. Here are listed all available instances in the system, grouped by the automation manager.

Now unzip the manager you have downloaded and start it. In order to start it you can got to the folder scripts and run the StartConsole.bat.

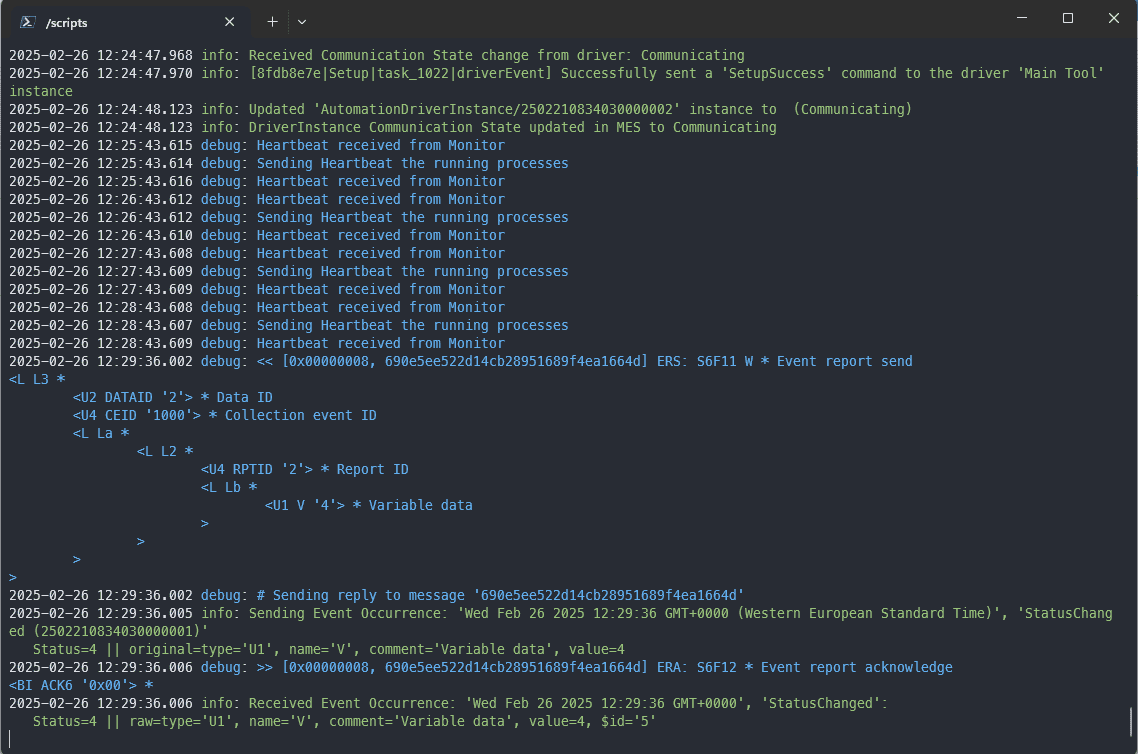

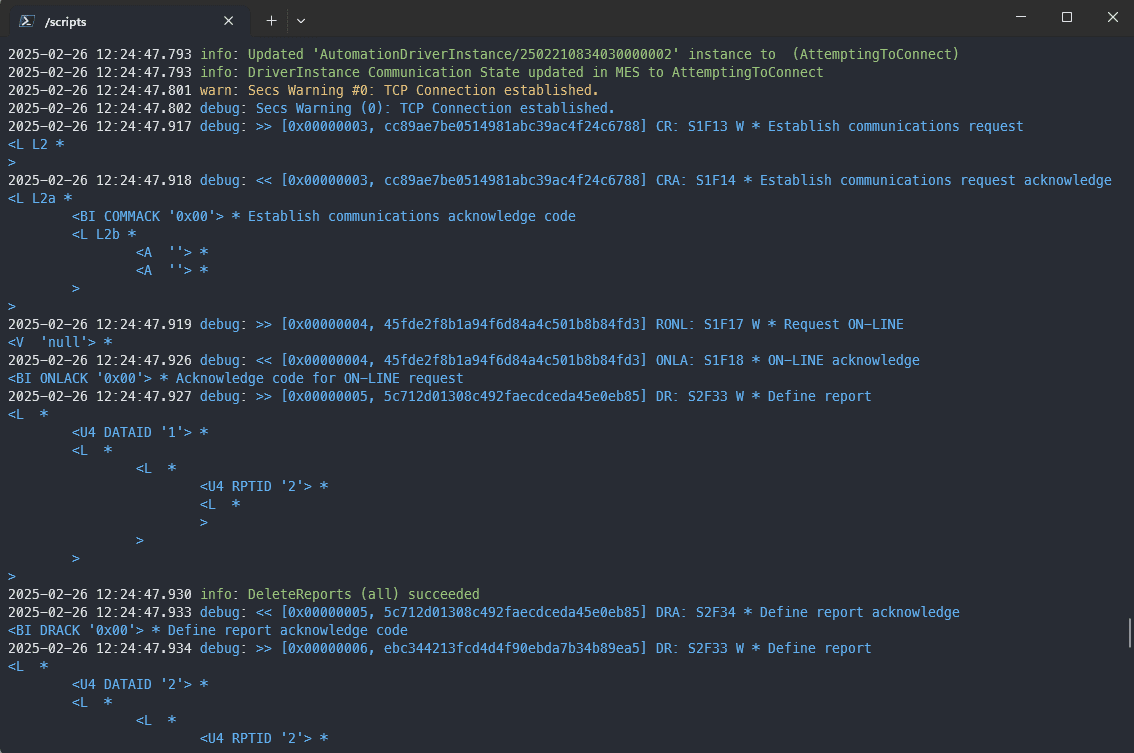

Now check the Automation Manager console. As the Automation Controller information was updated the process now gets again the list of instances to start and monitor. The Automation Monitor then asks the Automation Manager to start the processes for the Automation Controller instance and the Automation Driver instance.

Equipment Simulator Tests#

In order to test this integration tutorial, let's open the Secs/Gem Equipment Simulator Tool (you can download it from this location.

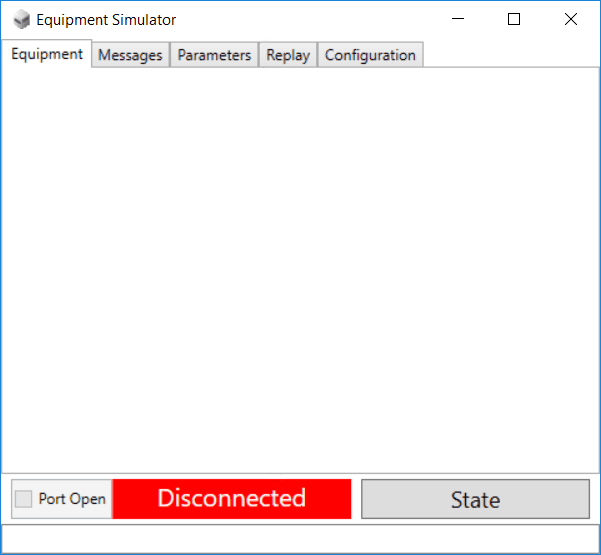

Run the GenericEquipmentSimulator.exe file. The following window will appear.

Notice that the simulator communication state is set to Disconnected.

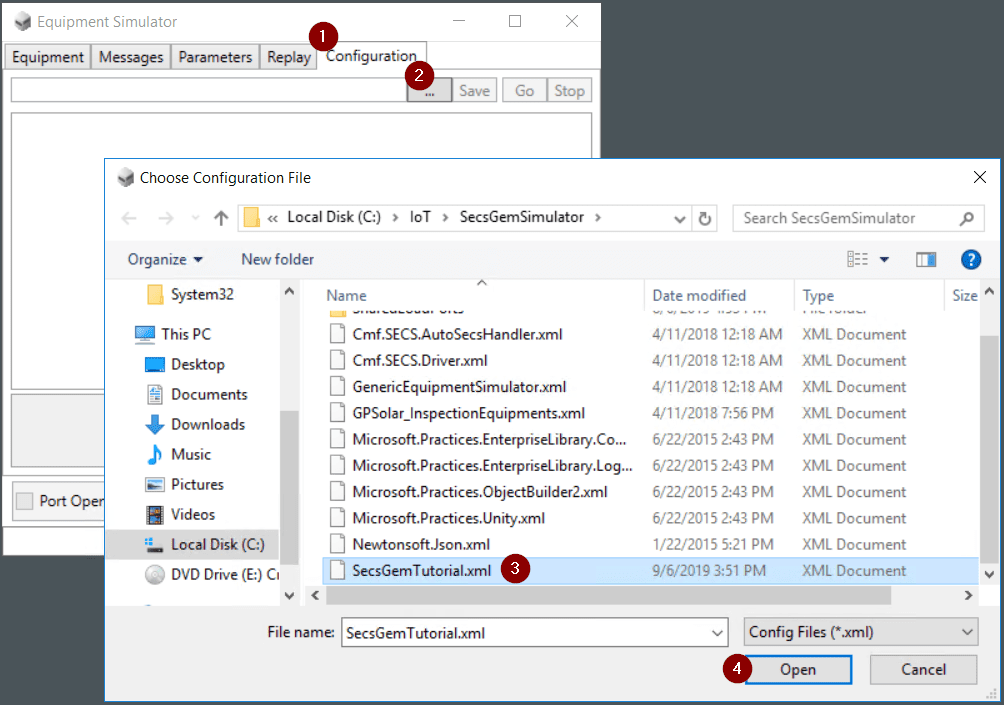

Go to the Configuration tab (1). Select the ...button (2) to open the simulation configuration file. Select the SecsGemTutorial.xml file and select the Open button.

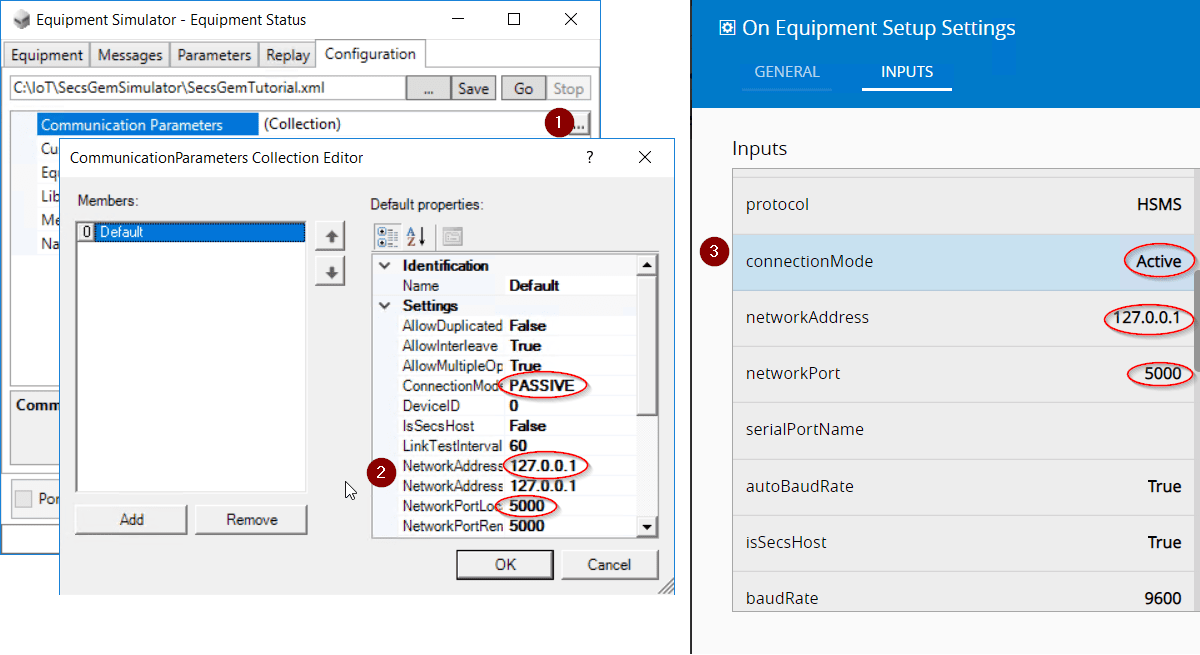

You must check the Communication Parameters (1) and validate if the communication settings (2) are compatible with the default settings (3) of the On Equipment Setup task instance configured in the workflow.

Once the parameters are validated, you can turn the simulator on by selecting the Go button.

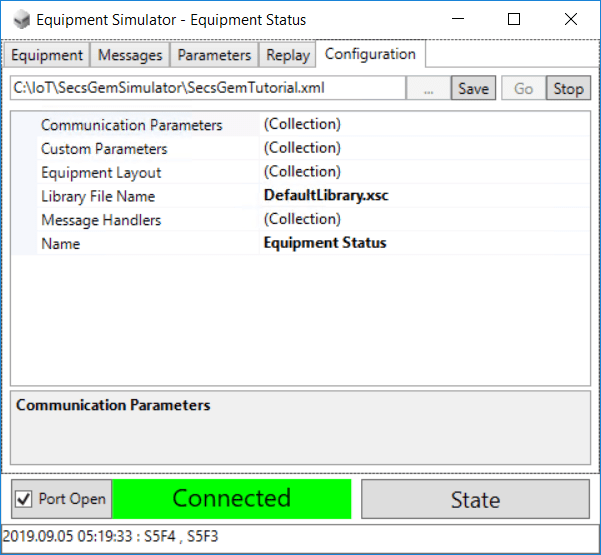

Notice that the simulator communication state changes from Disconnected to Connected.

It is also interesting to see all the lifecycle messages for secs/gem happening. We can see that there was an establish communication adn a go online, followed by a set of commands to define the reports.

Also notice that the communication state in the Automation tab in the MES system changes to Communicating for the driver instance.

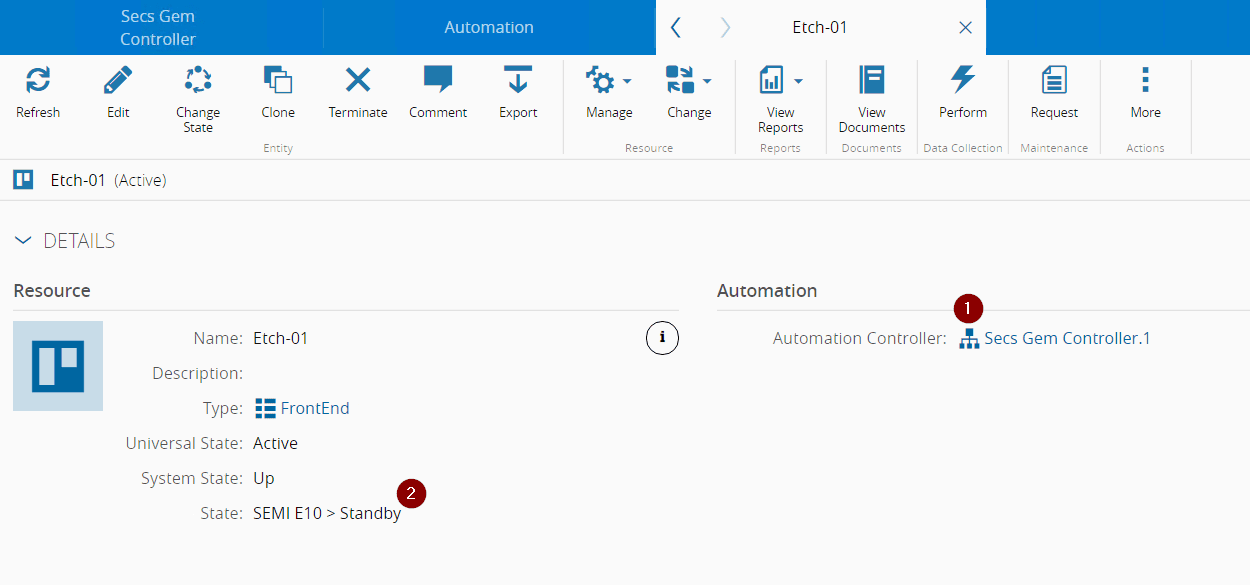

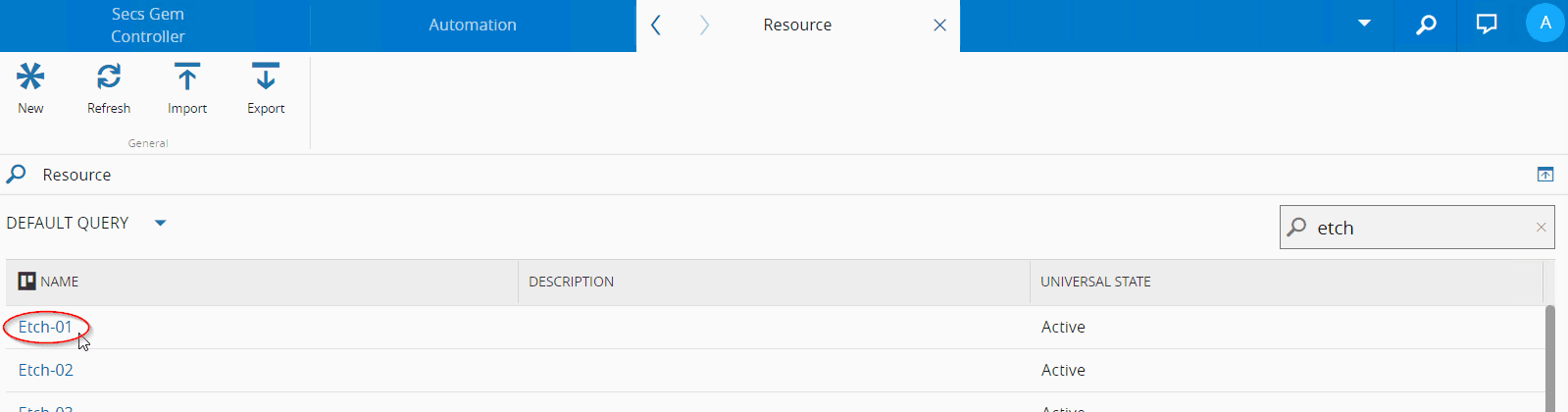

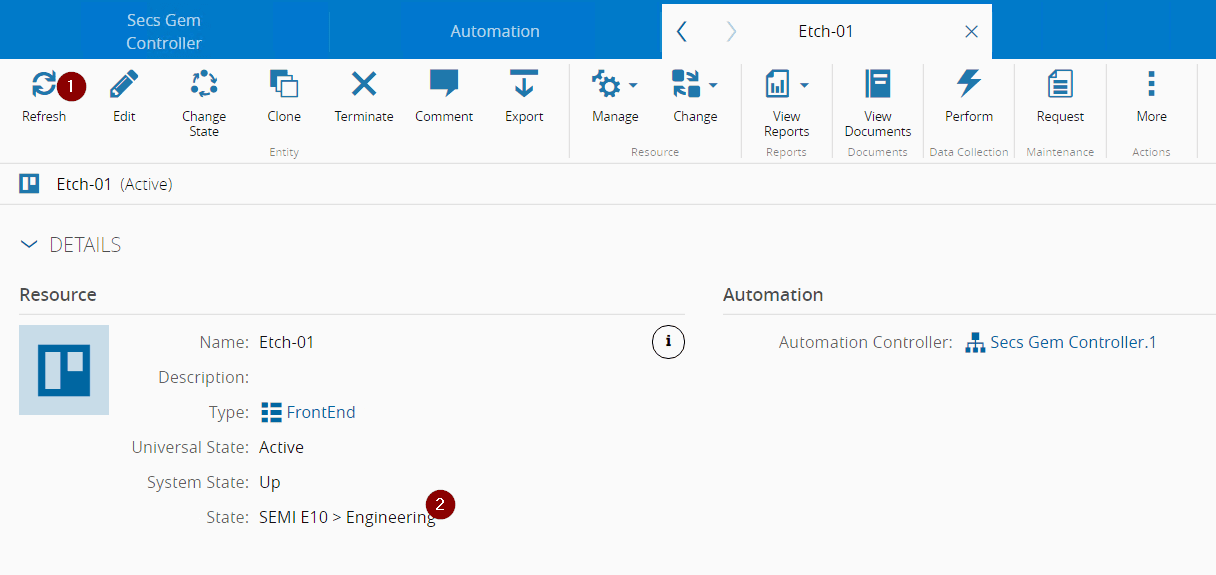

Go to Business Data > Resource and search for the resource. Select over the resource Etch-01to open its details.

You can see that the resource is associated to the Secs Gem Controller.1 Automation Controller (1) and that the current SEMI E10 state is set toStandby (2).

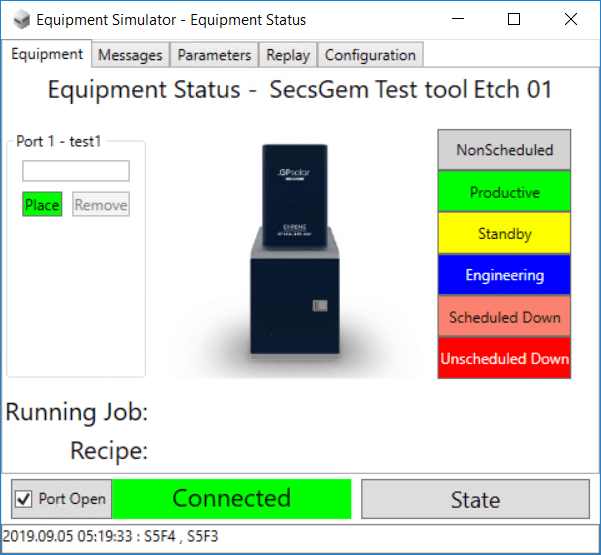

Let's switch to the Equipment tab in the Secs/Gem Equipment Simulator Tool.

There you can find six colored buttons, each one emitting the status changed event (CEID 1000) with the status variable (SVID 2011) value ranging between 1 and 6 according to the following mapping.

Table: Simulator Status Button

Let's select for example in the blue Engineering button and see what changes in the resource details.

Select the Refresh button (1) and notice that the SEMI E10 state changed to Engineering as well.

Also in the Automation Manager console, we can see what is going on. The value 4 is sent along with the event 1000, and the switch case handles it, outputting the Engineeringvalue.

You can try, by selecting the other buttons of the simulator, and then refreshing the resource details and checking the update of the resource state happening in the MES system.

Equipment Simulator Tests Control Flow#

A small example for control flow would be using a similar pattern with the use of the equipment event, adjust state and condition task.

Summary#

This tutorial is a simple showcase of a secs/gem integration. The secs/gem driver for Connect IoT supports a plentiful feature set but with a simple example it is easy to understand the fundamentals of how we can integrate a secs/gem interface.
