Creating a Protocol#

To create a Protocol, follow the sequence of steps shown below:

1. Associate a Change Set to the new Protocol being opened.
2. Configure Protocol properties and states.
3. Set Protocol as Effective.

Step 1: Associate a Change Set#

Since the Protocol entity is a versioned object, you must always start by associating a change set when you create this object.

Step 2: Fill out General Data#

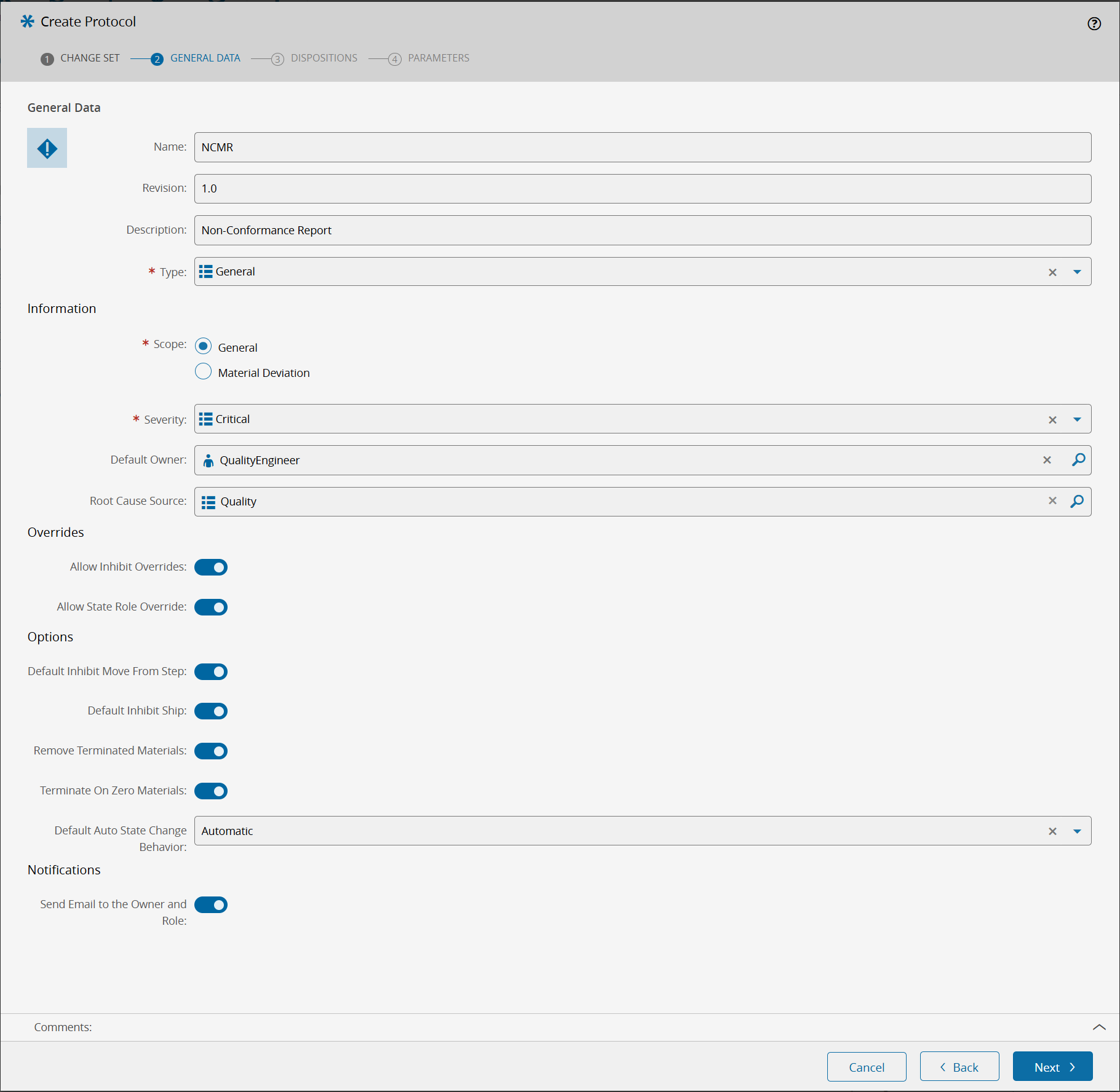

The General Data tab holds most of the Protocol properties. On this tab, you need to name the object being created in the system, define some mandatory properties, as well as which actions should be allowed or restricted in future instances. On the below image, you find an example where it was filled a set of values on the main Protocol Properties. The General Data is divided into multiple sections:

• General Data section, which holds the set of properties that defines the object identity and type;
• Information section, where it's defined the purpose of the protocol and its ownership;
• Overrides section, which allows the user to set the level of flexibility that he intends to have when execution the instances related with the Protocol;
• Options section, where user can configure the system to condition material transactions and system behaviors while executing the Protocol Instance;
• Notifications section, when enabled the system sends out notification to relevant users: the protocol initiator; the protocol owner; and members associated to the executor roles defined for each protocol state.

Watch the following video for a detailed explanation of the options described above.

Step 3: Define Dispositions#

When configuring the Dispositions tab, you can define which actions can occurr in a future instance. From the available configuration options, you can set values for:

• Allow Full Record Loss
• Allow Rework
• Allow Temporary Off Flow

The Protocol Dispositions can be commonly used among all Protocol states where dispositions are allowed. Watch the video below for a detailed explanation of each option.

Step 4: Set Parameters#

The Parameters tab is where you need to add all the parameters that you want to use in each Protocol state. These set of parameters are independent objects being created specifically for that Protocol use and that are not related with any existing object created from the Parameter entity.

Watch the video below to see how to set parameters for your Protocol.

Step 5: Configure Protocol States#

At this stage, you need to outline the different Protocol states which are representative of the workflow, as well as the different transitions between them.

The following video demonstrates how you can configure each Protocol state.

General Data#

The Protocol state configuration starts with the definition of the Protocol state name. Optionally, it is possible to restrict its execution to a specific executor role and to add an existing Checklist that can be part of the execution. Finally, if you want to have a different state change behavior from the one previously defined for the whole Protocol, you can do it at this stage.

Watch the video below to see this in action.

Tasks#

When configuring the Tasks tab, you can set the permission to create tasks when executing that Protocol state. If task creation is allowed, you can configure the Task Creation State in each Protocol state, as shown in the video below.

Dispositions#

In each Protocol state, you can define whether the Material disposition should be allowed, and if so, whether it requires approval and what should be its disposition mode: Allow, Approve, Execute or Require.

The following video explains the options mentioned above.

Parameters#

From the list of parameters that were previously added at the Protocol level, you should pick which ones you intend to use in a given Protocol state, as shown in the video below.

Step 6: Set Protocol Version as Effective#

Setting the Protocol version as Effective makes that object ready to be used in the system. From this moment, the Protocol can be configured in a given system context and a new Protocol Instance can be executed. For more information, see Set Version as Effective.
