Data Platform Components Monitoring#

Estimated time to read: 3 minutes

Overview#

In this tutorial we describe ways to monitor Data Platforms components that handle data ingestion, processing, aggregation and replication.

System Monitoring#

System Monitoring, in the Administration section, contains 6 probes that can be used to monitor Data Platforms components.

In the Status tab there are two probes:

  1. Online Replication Queue tells us how many messages are waiting to be published to Kafka, with information regarding what needs to be done for replicating data and building the Canonical Data Model (CDM) events; these messages are produced whenever a transaction is closed in CM MES.

  2. ODS Replication Queue provides the same information, only for messages created in ODS by the Initial Sync mechanism (which is used to run replication/CDM building for historical data).

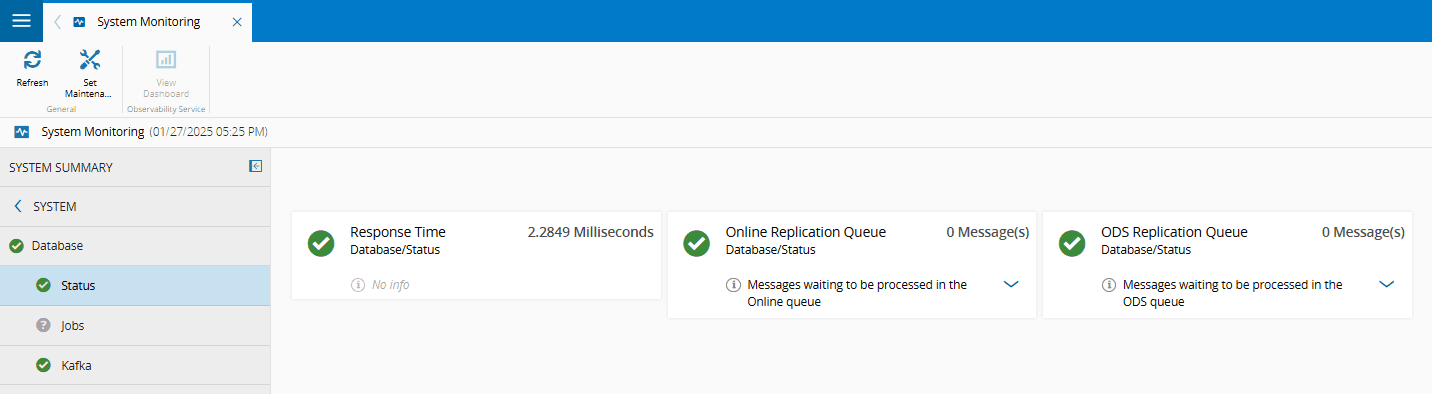

    Status Monitoring

In the Database -> Kafka tab there are four more probes:

  1. Kafka Lag tells us the lag building the replication documents.

  2. CDM Lag tells us the lag building the CDM documents.

  3. IoT Lag tells us the lag forwarding IoT events to the destination topics.

  4. Replication Lag tells us the lag materializing replication documents in the destination database.

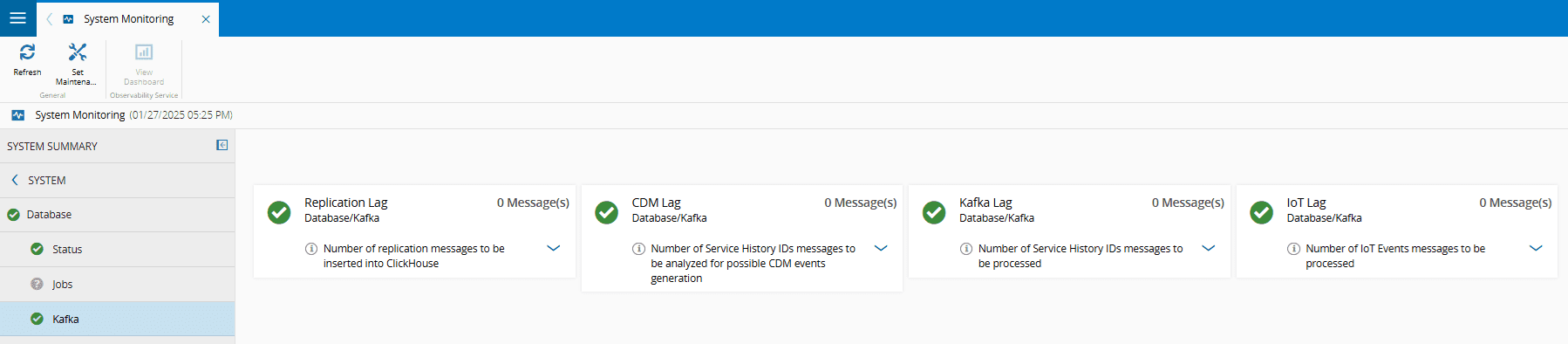

    Kafka Monitoring

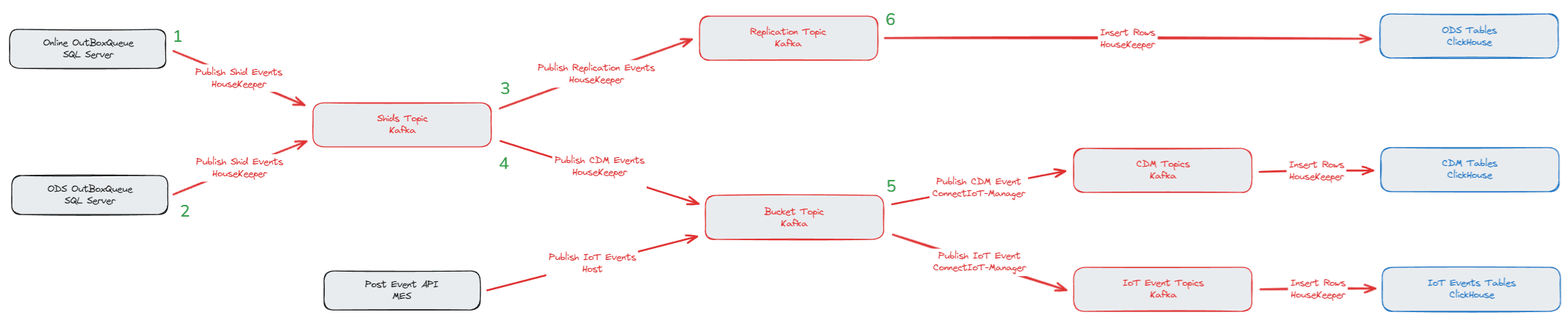

    The location of the probes is represented in this simplified flow chart, which can be used to help diagnose potential issues with Data Platform components:

    Data Platform Pipeline

A quick way to look at it:

  1. If Online Replication Queue shows a lot of messages waiting to be published, then it is possible that there is an issue with either Kafka or Data Platform component HouseKeeper.
  2. If ODS Replication Queue shows a lot of messages waiting to be published, then the diagnosis is the same, i.e., a potential issue with either Kafka or HouseKeeper.
  3. If Kafka Lag is too high, then there might be an issue with HouseKeeper, but it is more likely that either the MES SQL Server database is too slow, or more HouseKeeper instances are needed to keep up with the workload being generated by CM MES.
  4. If CDM Lag is too high, then the diagnosis is similar, i.e., an issue with HouseKeeper, a slow SQL Server, or the need for more HouseKeeper instances.
  5. If IoT Lag is too high, then there might be an issue with the component ConnectIoT-Manager.
  6. If Replication Lag is too high, then the mostly likely diagnosis is an issue with ClickHouse or HouseKeeper.

By looking at the status of these probes it should be easy to determine if the CDM building and the ODS replication are working as expected and without issues.

Data Orchestrator#

Another Data Platform process that can be monitored in CM MES is the aggregation of the Data Warehouse data sets. This can be done by navigating to the Data Orchestrator, in the Administration section:

Data Orchestrator

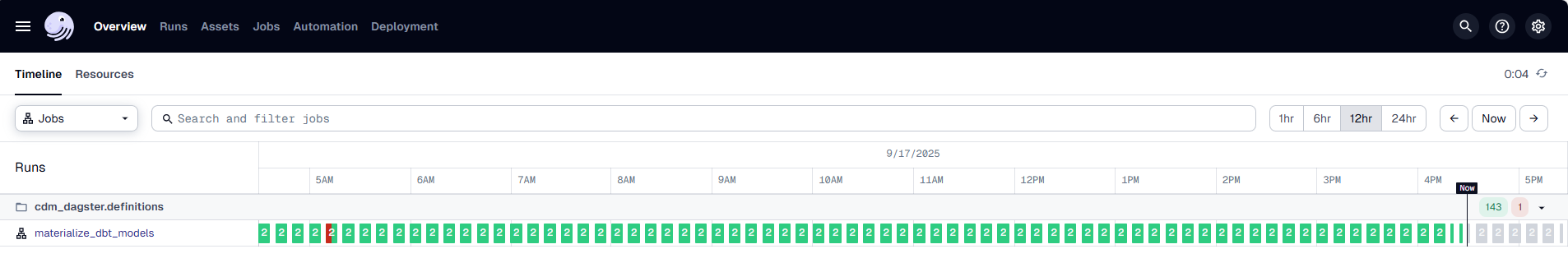

The Data Orchestrator is Data Platforms job runner. If you navigate to the Runs tab you can see the status of the job that aggregates the data in the Data Warehouse data sets, which goes by the name materialize_dbt_models and runs every 5 minutes:

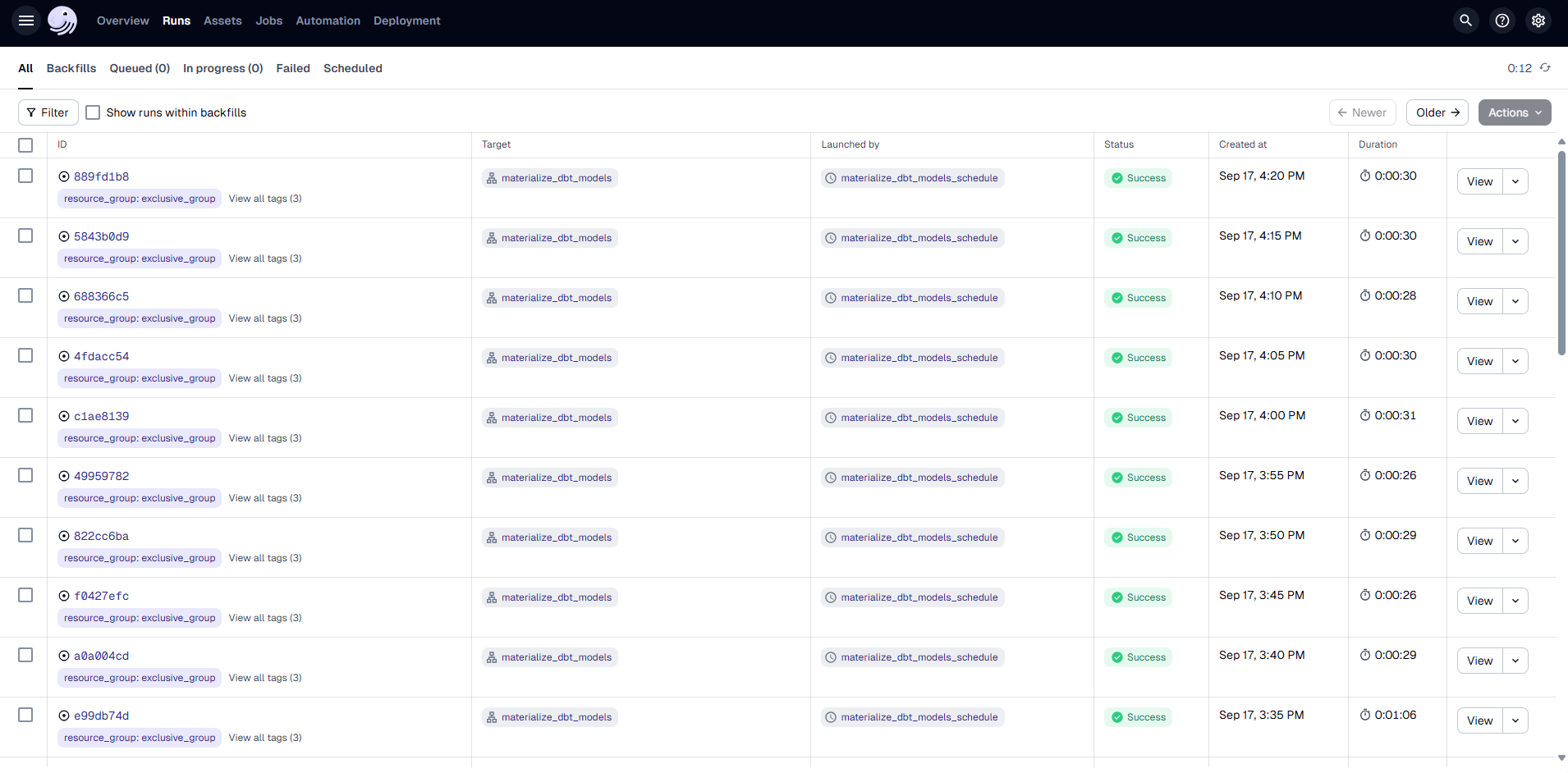

Data Orchestrator Job Runs

If you select View for a specific run, you can get details on the aggregations that were performed:

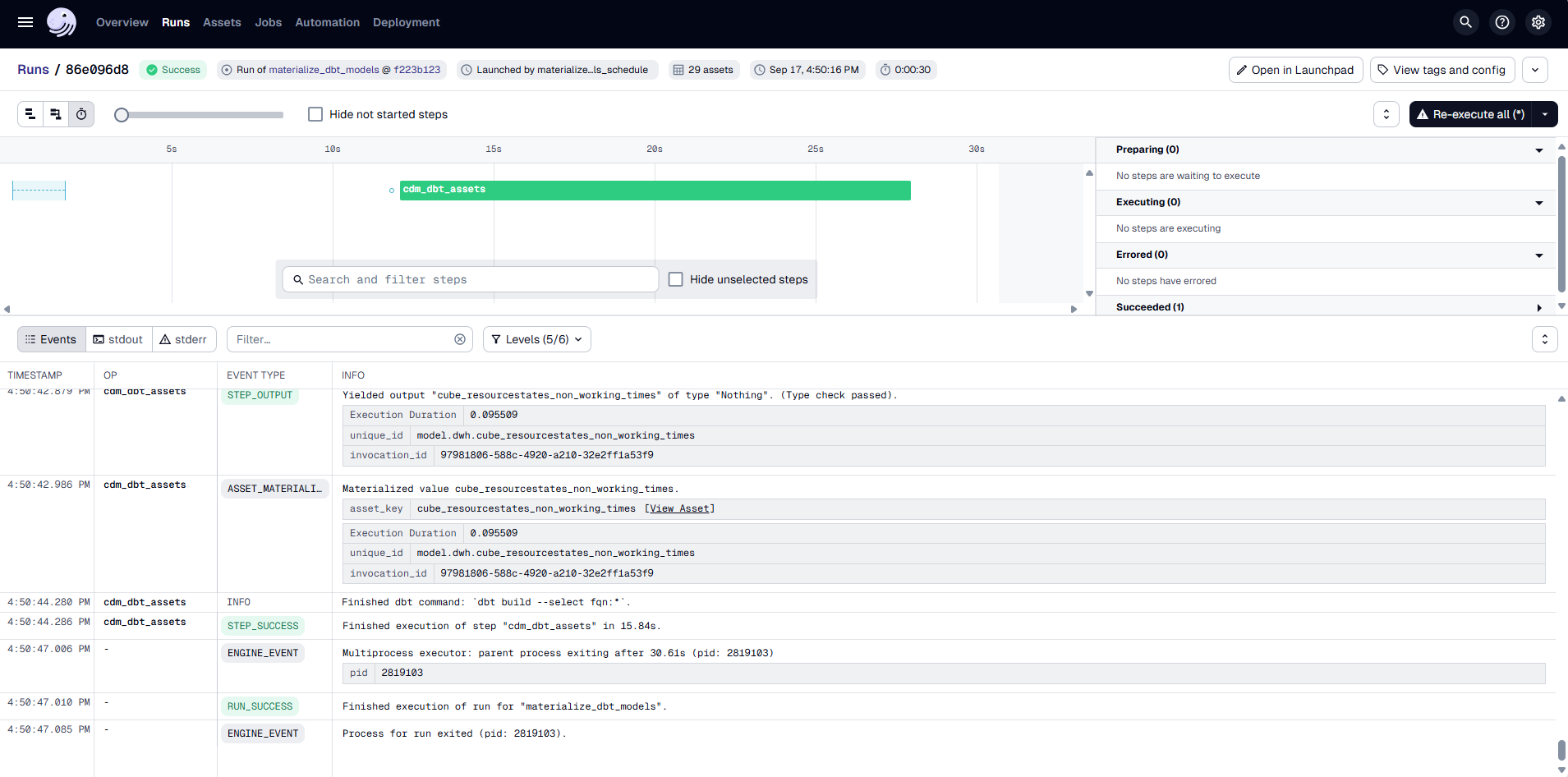

Data Orchestrator Run Log
