Real-Time Insights on Shop-floor Hierarchy#

Estimated time to read: 10 minutes

Overview#

Manufacturing experts understand processes, while technical experts understand data structures. Bridging this gap is crucial to turning raw data into actionable insights. To achieve this, Critical Manufacturing developed a Canonical Data Model (CDM) anchored in the ISA-95 standard. The CDM acts as a universal translator, aligning complex technical systems with real business needs.

ISA-95 provides the common terminology and hierarchical structure - enterprise, site, area, work center, and work unit - that manufacturing professionals already recognize. Building on this, the CDM shifts from a static, table-based approach to an event-driven model. Instead of fragmented technical entities, data is expressed as meaningful events - covering materials, resources, production, maintenance, and calendars - each event self-contained and carrying its full context.

This design delivers two key outcomes:

• Real-time visibility - operational dashboards update instantly as events occur, enabling immediate insights into production performance.

• Cross-plant comparability - standardized event structures allow benchmarking across facilities with different underlying systems.

The CDM also integrates with Unified Namespace (UNS) architectures. UNS replaces fragile point-to-point integrations with a centralized, hierarchical information model that becomes the single source of truth. Built on a Publish/Subscribe messaging pattern - commonly implemented with MQTT (Message Queuing Telemetry Transport) - UNS enables systems to publish data to standardized topics and consume only what they need, creating a flexible, event-driven communication layer.

In this tutorial, we will show you how to configure your MES to use CDM events and UNS, providing real-time insights into your shop-floor operations.

Preconditions#

When installing the MES environment:

• The IoT Data Platform Advanced module must be installed and available.
• The MES Analytics feature must be enabled.
• Light CDM Events must be enabled.
• The UNS must be enabled and the MQTT broker must be properly configured.
• The UNS Export Integration business scenario must be configured.

Steps to Implement Real-Time Insights#

Enable Light CDM Events and UNS#

CDM Events are the foundation of the Critical Manufacturing MES data strategy. Instead of relying on static database tables, CDM represents manufacturing activity as standardized, event-driven messages.

These events are continuously generated and distributed:

• The HouseKeeper service produces CDM events based on replication events and publishes them to Kafka.
• CDM events serve as the single source of data for reports and dashboards created with Grafana, Stimulsoft Reports, and CubeJS.
• When configured, CDM events can trigger automated workflows in the Data Platform.

Light CDM Events are a simplified variant, designed for real-time performance by including only the essential event properties. They provide a balance between efficiency and completeness, making them particularly well-suited for UNS integration.

To enable Light CDM Events and UNS:

1. Follow the steps in the Installation guide.
2. In the same section, enable the UNS container deployment.
3. Configure the MQTT broker connection.

Adding Additional Properties to Light Events#

Critical Manufacturing MES ships with several CDM Events. Among them, only three have the Has Light Variant property enabled:

• Material Operations
• Resource State Change
• Post Data Collection

For these events, the properties included in the light variant are documented in the MES Canonical Event Definition ⧉. If you need additional data beyond the default set, you can enrich light events by enabling extra properties.

To add an additional property to a CDM event, you should:

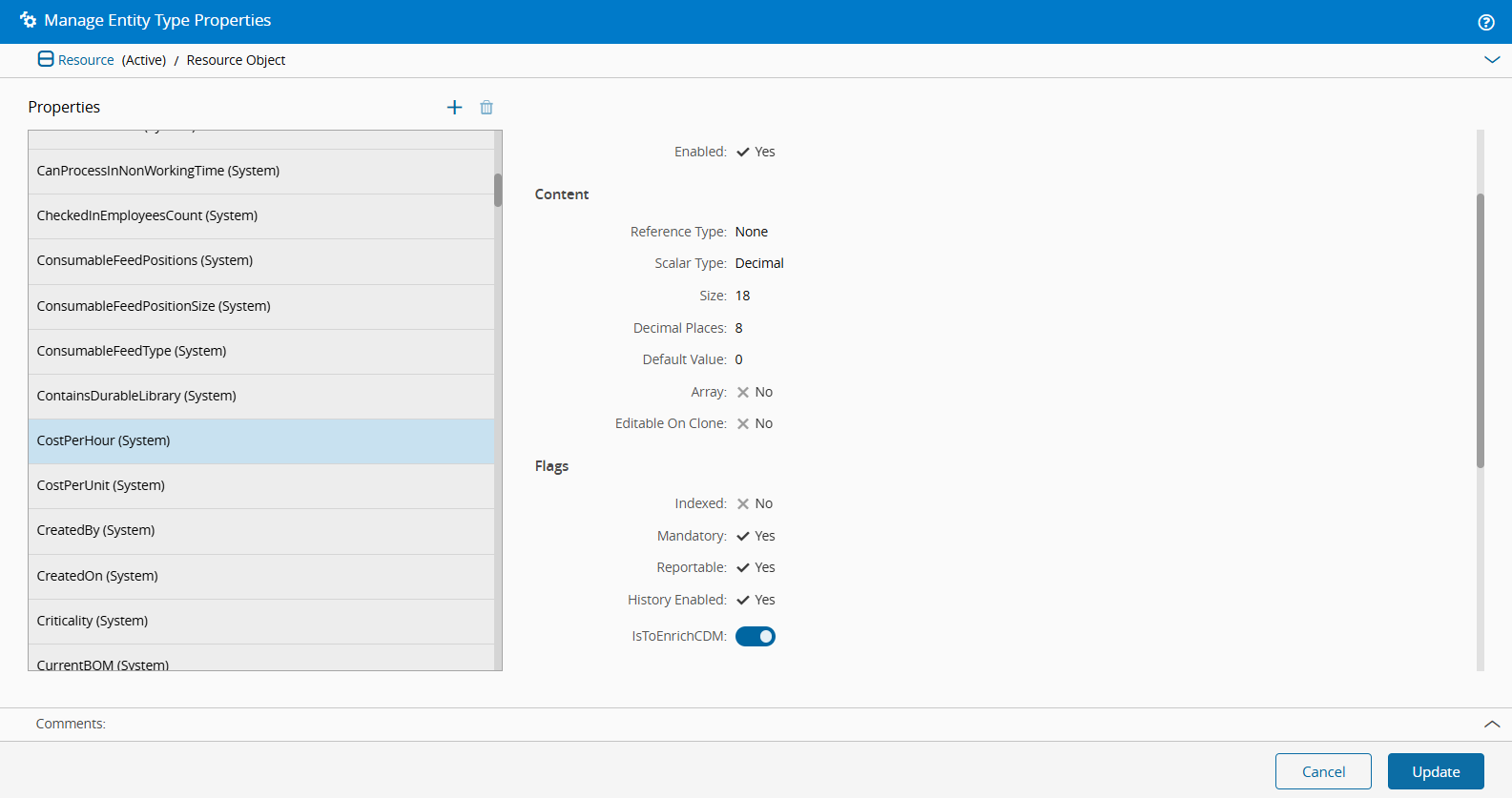

1. Navigate to Administration > Entity Type.
2. Select the relevant Entity Type (for example, Resource).
3. Open the Properties tab and choose the Manage button.

4. Locate the desired property (for example, CostPerHour) and enable the Is To Enrich CDM toggle.



5. Select Update.

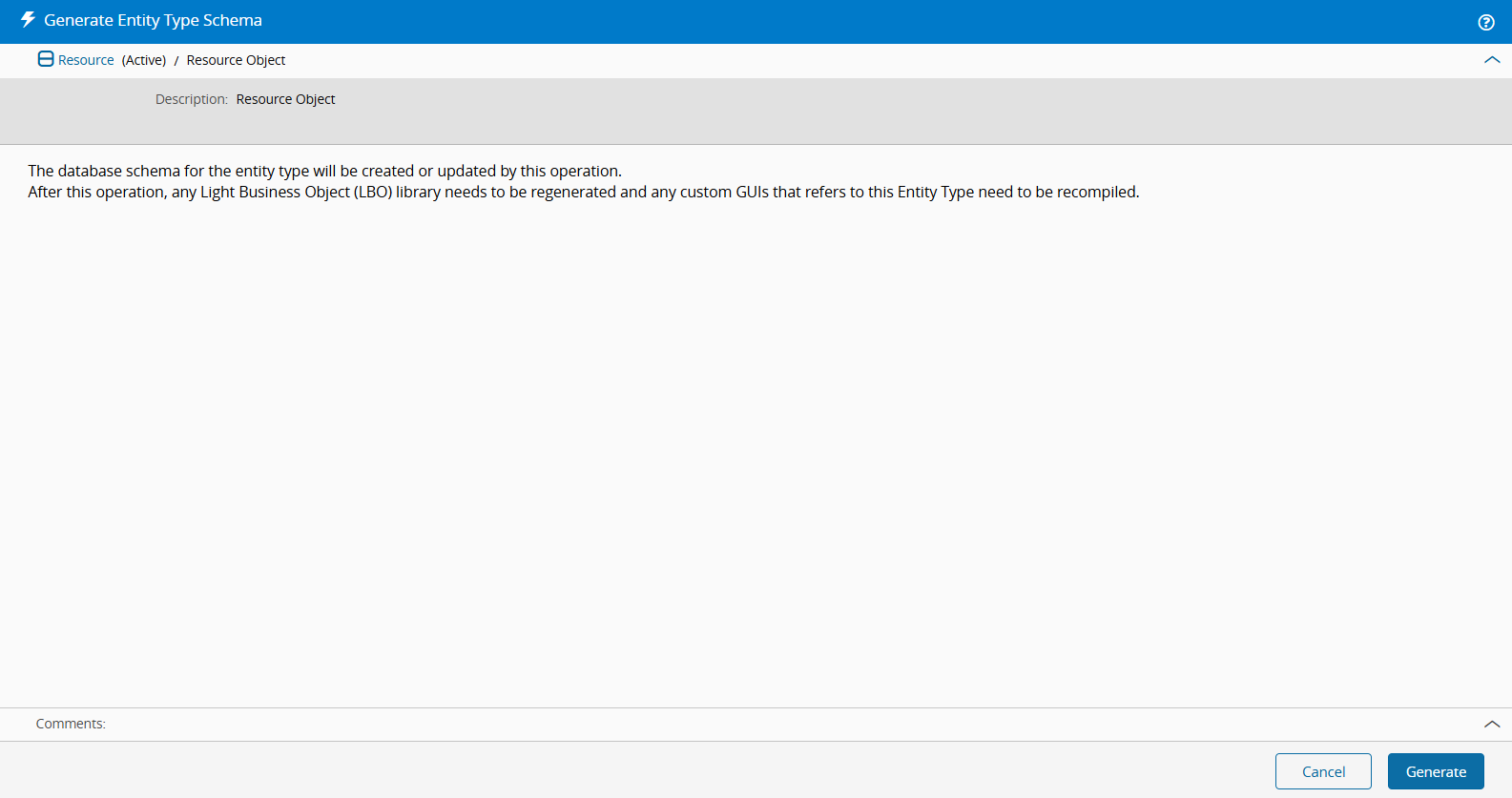

6. Select the Generate on the top ribbon, then select Generate again on the wizard that appears so the system will regenerate the schema so that the property is included in event generation.



Using Cortex to Create Automation Controller#

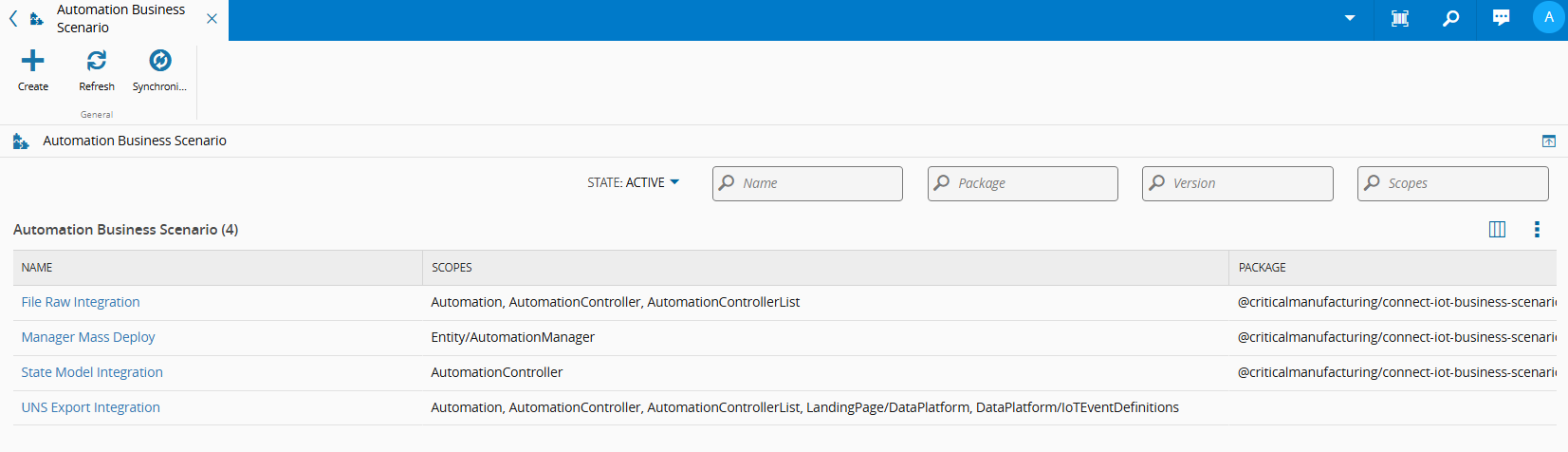

When creating an Automation Business Scenario, the first step is to select a scope. The scope determines which pages the Cortex chatbot can access for that business scenario.

For the UNS Export Integration business scenario, one of the available scopes is LandingPage/DataPlatform. To proceed:

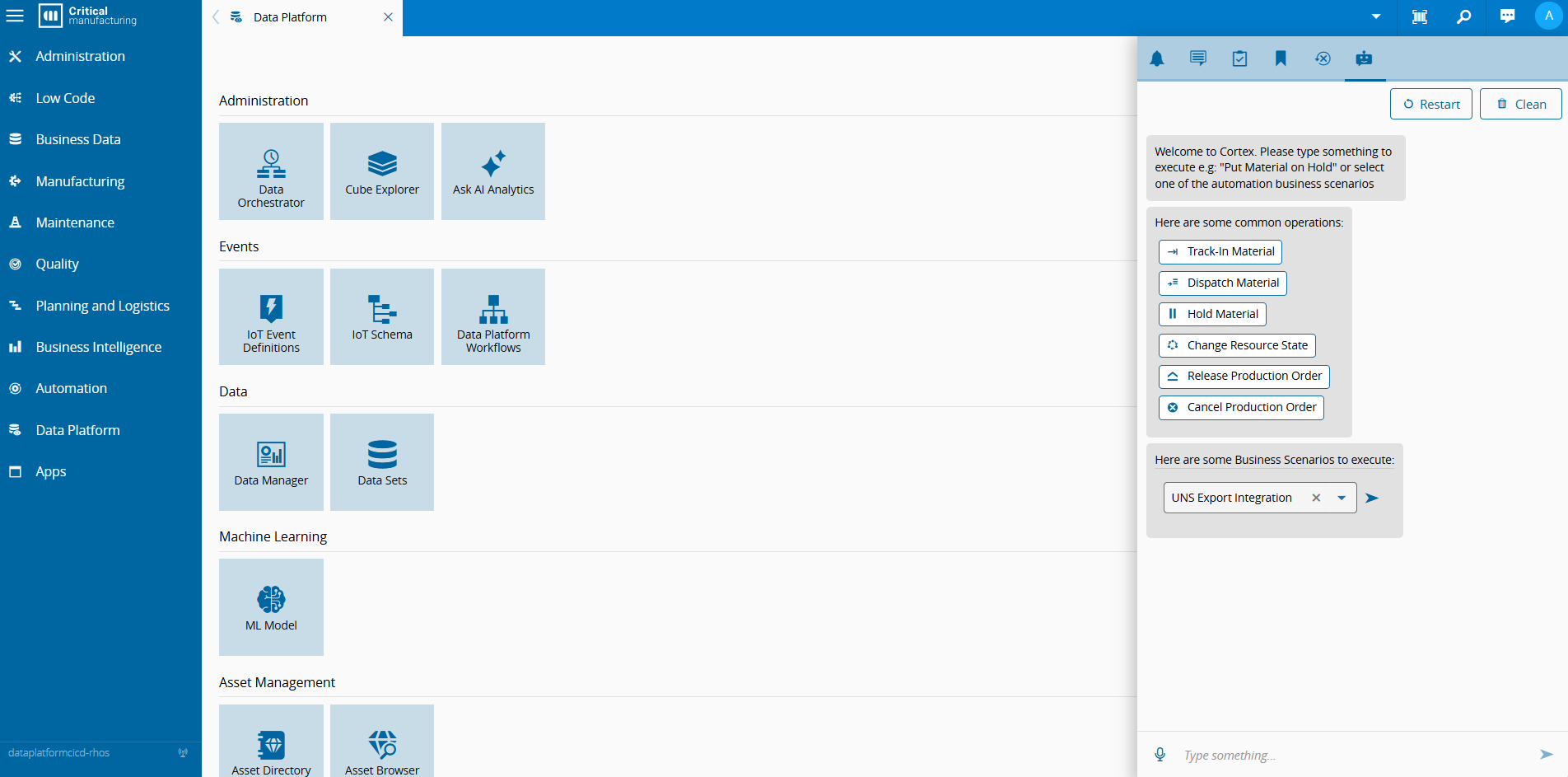

1. Navigate to the Data Platform menu entry.
2. Open the Activity Center and select the Chatbot tab.

In the chatbot, you can access which business scenarios are available for the current page. In this case, select the UNS Export Integration business scenario and confirm your choice with the icon.

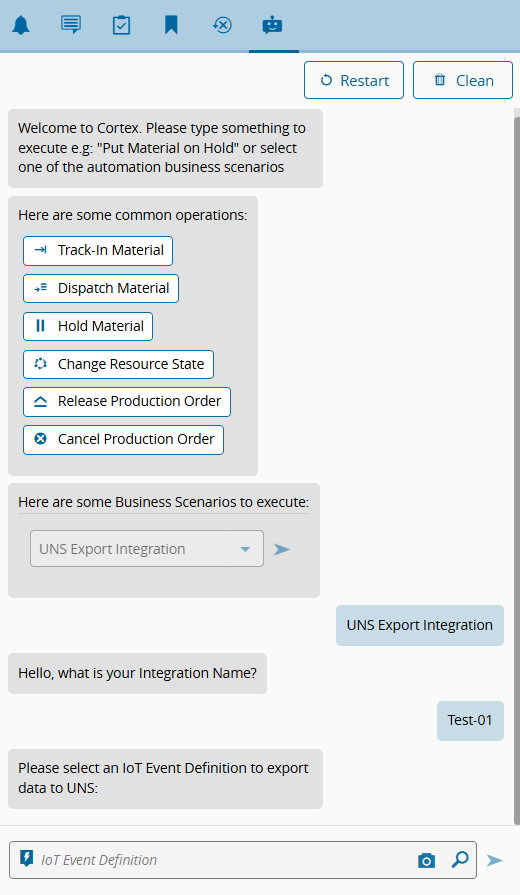

Next, the system prompts you to provide a name for the new Automation Controller. Choose a clear, descriptive name that reflects its purpose. For this tutorial, we will use Test-01.

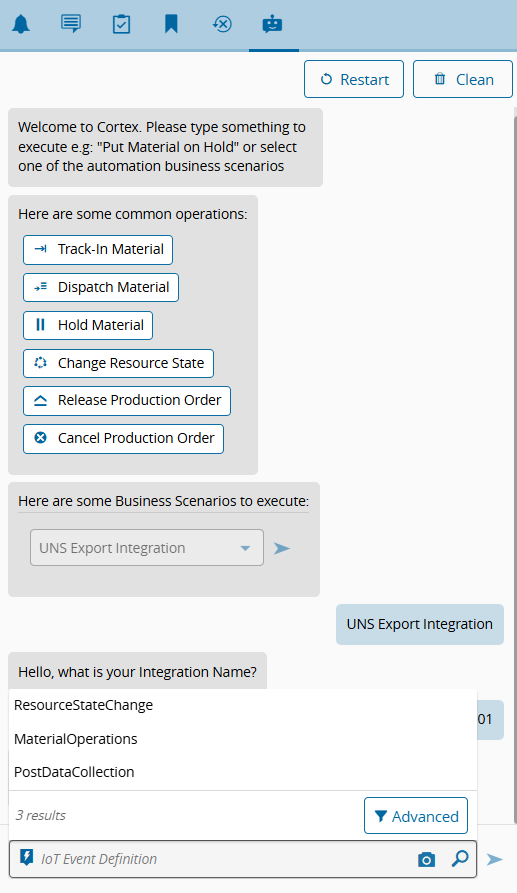

The system then asks you to select an IoT Event Definition. Only definitions with Has Light Variant enabled are displayed, as shown in the image below.

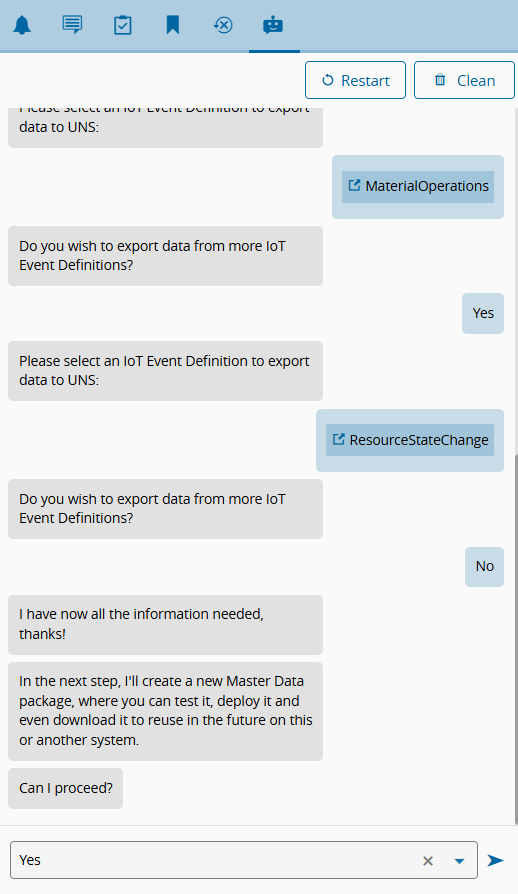

You may select more than one IoT Event Definition, and the system will guide you through this selection. In this tutorial, we chose the ResourceStateChange and the MaterialOperations.

When you have selected the desired IoT Event Definitions, select No when prompted to add more IoT Event Definitions. The system then confirms if it should create the Master Data Package. Choose Yes.

Once created, the system sends the Master Data Package and you can access it directly from the link provided.

Sending Data to MQTT Broker#

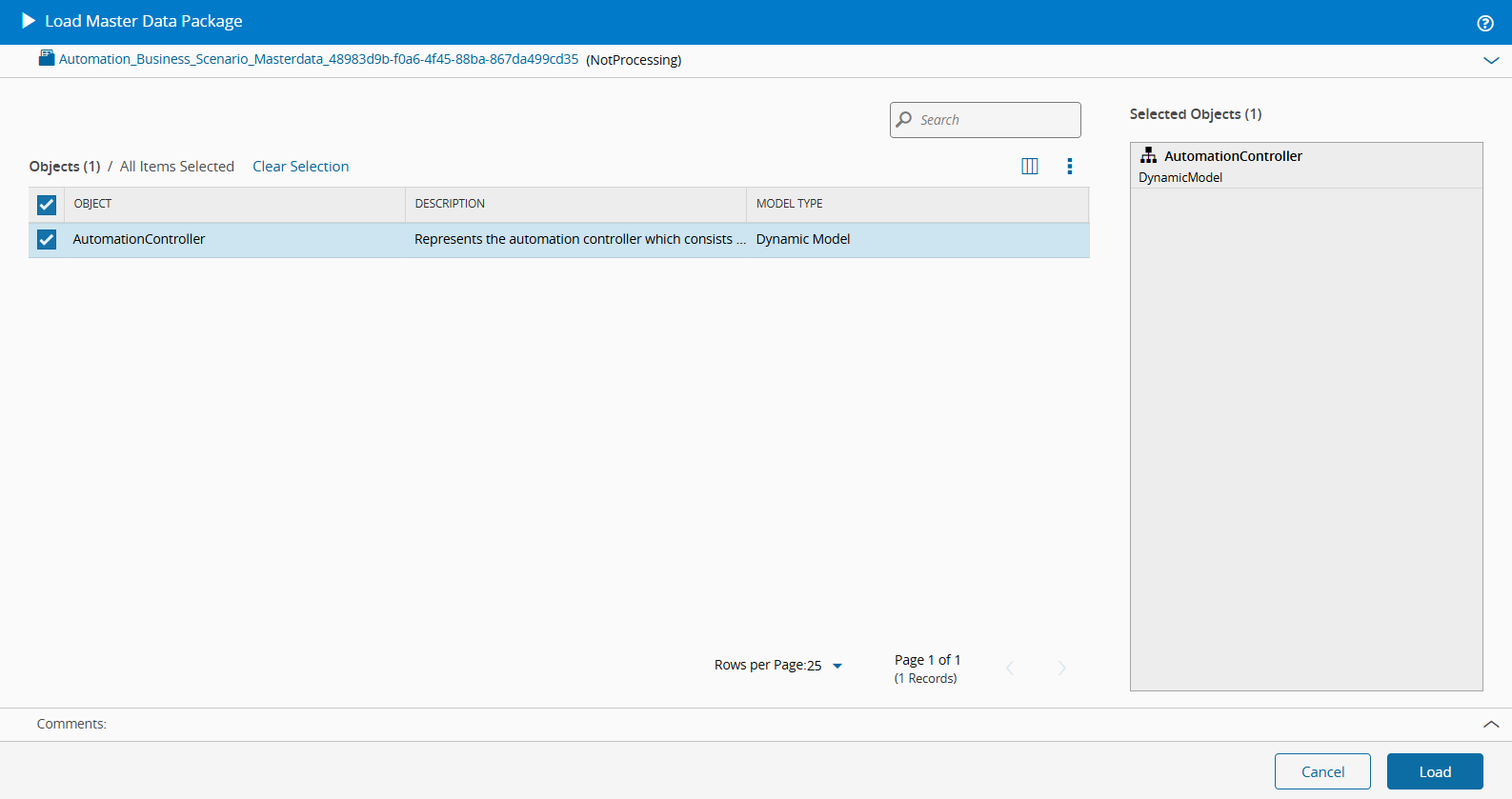

The next step is to load the master data package created. To do so, on the top ribbon, select Run and then Load.

Then, select the AutomationController object and select the Load button. Once the load is complete, the system displays a success message.

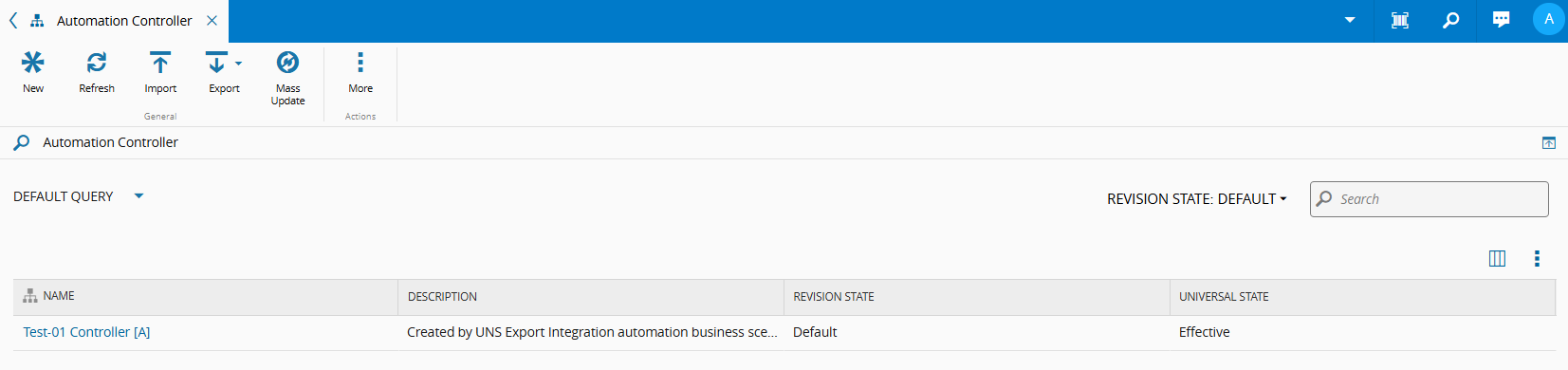

If you navigate to the Data Platform Workflows entity under the Data Platform menu, you will see the object created with the Master Data Package.

After the Master Data Package is loaded, the Automation Controller (Test-01 Controller) is ready to execute its workflow. The workflow follows three main steps:

• Trigger on job execution - starts automatically when a configured job begins execution.
• Execute custom code - passes the raw CDM event and transforms it into a valid MQTT topic.
• Send to MQTT - publishes the event using the UnsExportIntegration.SendToMqtt action, which forward the payload to a distributed listener connected to the MQTT broker.

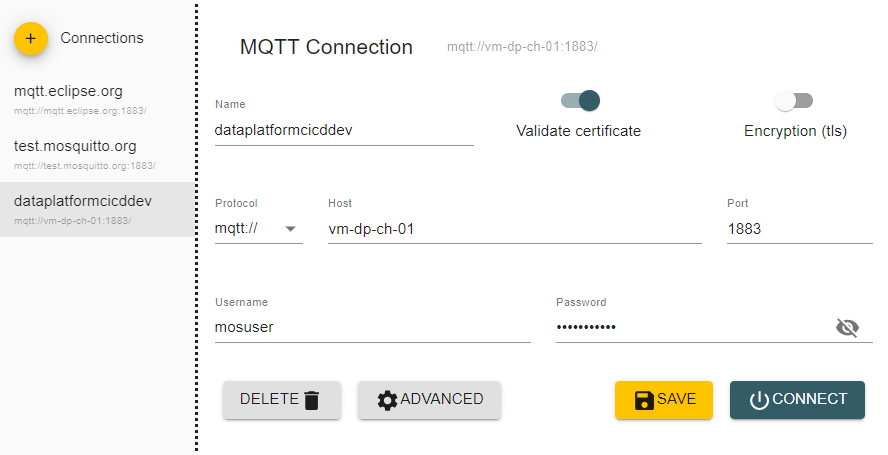

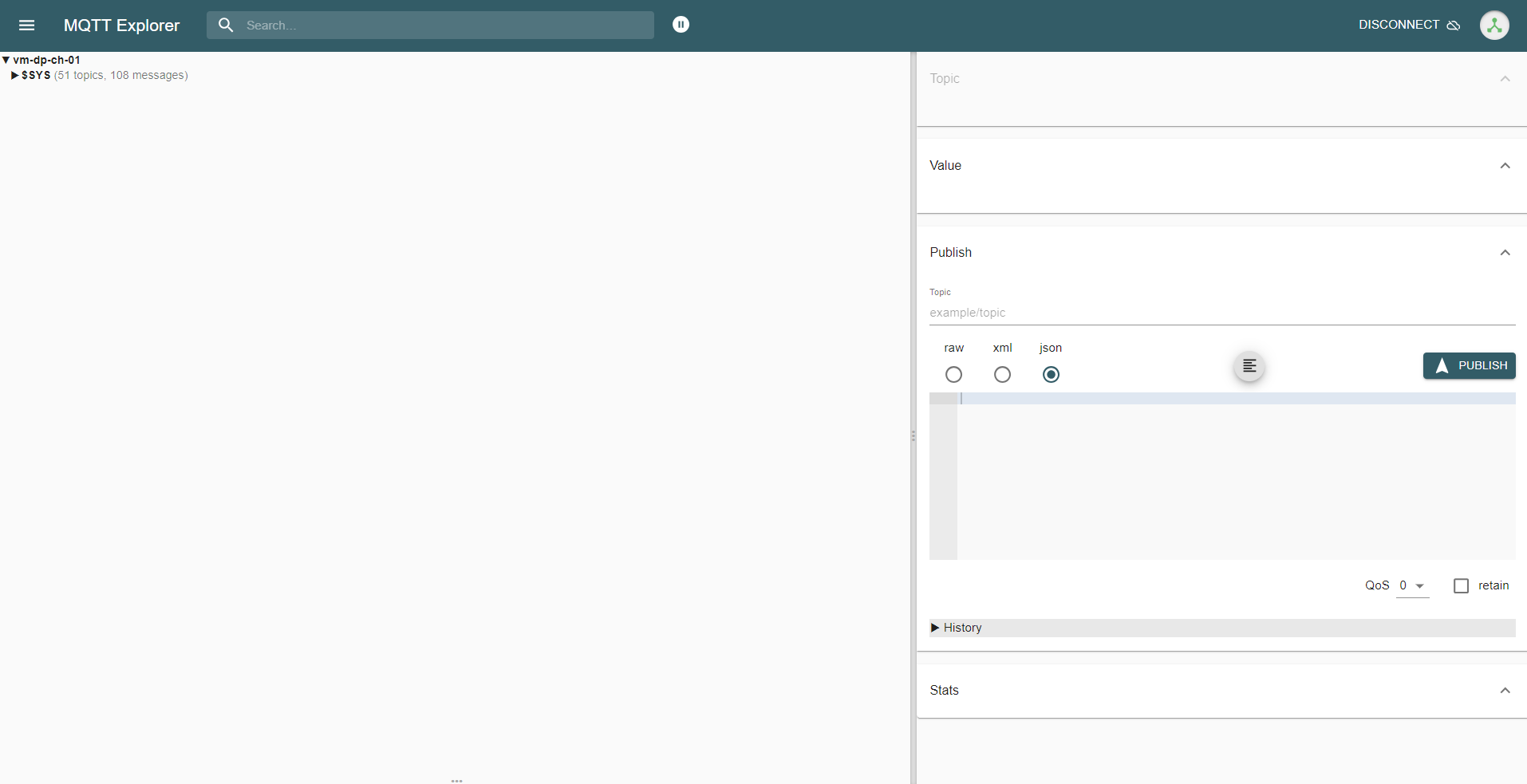

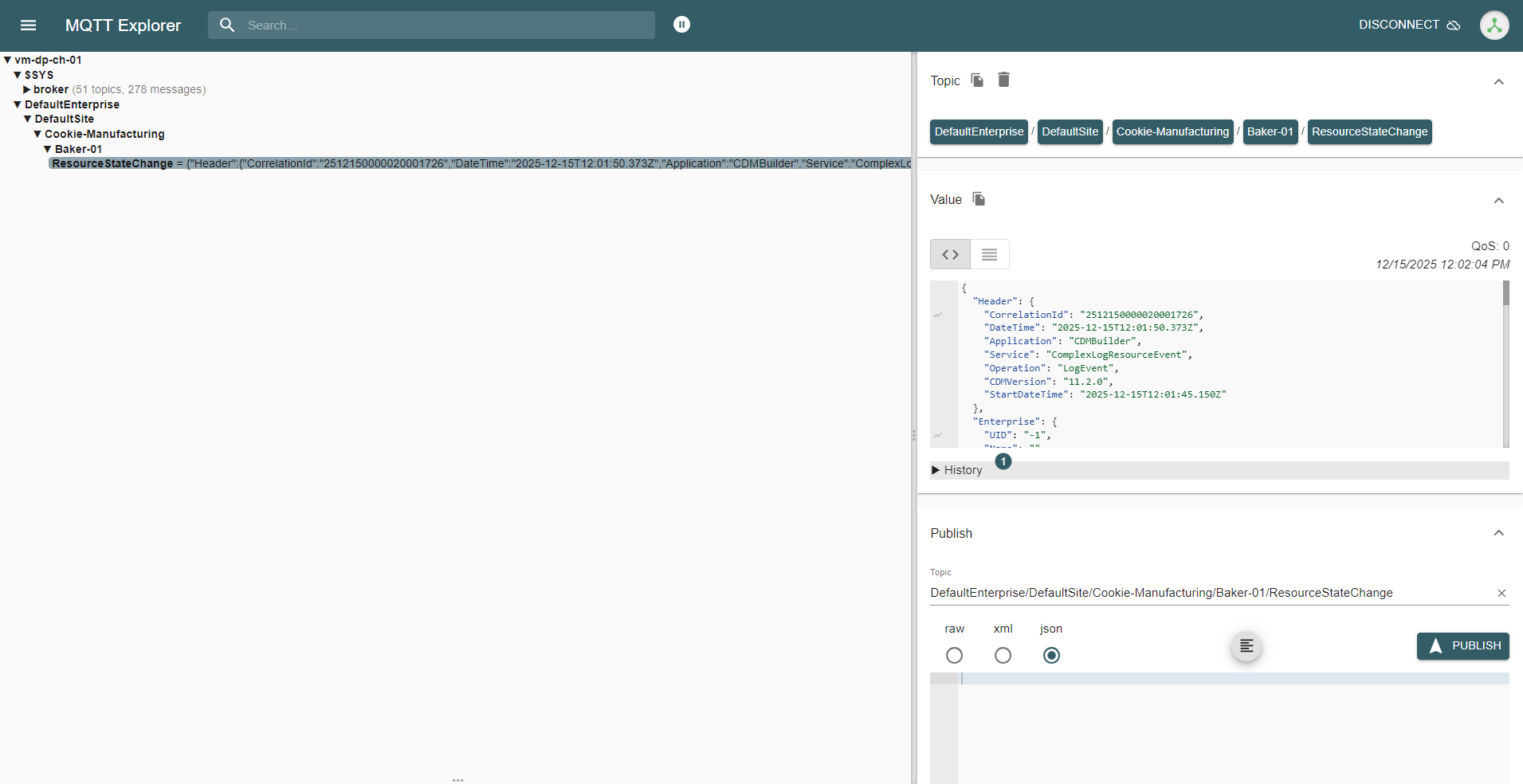

To confirm that events are reaching the broker, connect with an MQTT client such as MQTT Explorer. Use the same host address and credentials configured during the MES environment installation.

Perform a material operation or a resource state change - the two event types subscribed in this example. For instance, if the state of Baker-01 changes from Standby to Productive, the update is propagated to the MQTT broker within seconds.

All CDM events published through the UNS Export Integration follow this topic pattern: Enterprise/Site/Area/Resource/Event. Each level of the topic represents a node in the manufacturing hierarchy and is derived from the ISA-95–aligned CDM model.

Although ISA-95 terminology is used as the foundation, it is important to understand how Critical Manufacturing MES entities map to the UNS structure, especially because MES nomenclature does not always match ISA-95 one-to-one. The table below summarizes how each UNS level is populated:

Table: Mapping CDM Entities to UNS Levels

When the state of the resource Baker-01 changes from Standby to Productive, a ResourceStateChange event is published to the corresponding UNS topic, following this structure: DefaultEnterprise/DefaultSite/Cookie Manufacturing/Baker-01/ResourceStateChange. And the MQTT broker receives the following JSON payload:

{
  "Header": {
    "CorrelationId": "2512150000020002115",
    "DateTime": "2025-12-15T14:35:55.593Z",
    "Application": "CDMBuilder",
    "Service": "ComplexLogResourceEvent",
    "Operation": "LogEvent",
    "CDMVersion": "11.2.0",
    "StartDateTime": "2025-12-15T14:35:55.390Z"
  },
  "Enterprise": {
    "UID": "-1",
    "Name": "",
    "AdditionalProperties": null
  },
  "Site": {
    "UID": "-1",
    "Name": "",
    "AdditionalProperties": null
  },
  "Facility": {
    "UID": "2512051538210000002",
    "Name": "Cookie Factory",
    "AdditionalProperties": null
  },
  "Area": {
    "UID": "2512051538210000001",
    "Name": "Cookie Manufacturing",
    "Type": "Cookie Production",
    "AdditionalProperties": null
  },
  "Resource": {
    "UID": "2512051538210000011",
    "Name": "Baker-01",
    "ResourceType": "General",
    "Model": "General",
    "Description": "Baker-01 Resource",
    "UniversalState": "Active",
    "Type": "Standard",
    "ParentResources": [],
    "OpenCorrectiveMAOsCount": 0,
    "Lanes": [],
    "Manufacturer": "General",
    "Class": "Process",
    "SystemState": "Up",
    "StateNames": [
      "Basic",
      "SEMI-E10"
    ],
    "StateValues": [
      "Up",
      "Productive"
    ],
    "SEMIE10State": "Productive",
    "CreatedOn": "2025-12-05T15:42:50.163Z",
    "CreatedBy": "2512051535120000002",
    "ModifiedOn": "2025-12-15T14:35:55.413Z",
    "ModifiedBy": "2512051535120000001",
    "ControlState": "Off-Line",
    "AdditionalProperties": null
  },
  "Previous": {
    "Resource": {
      "SystemState": "Up",
      "StateNames": [
        "Basic",
        "SEMI-E10"
      ],
      "StateValues": [
        "Up",
        "Standby"
      ],
      "SEMIE10State": "Standby",
      "LastModifiedOn": "2025-12-15T14:34:58.883Z",
      "LastModifiedBy": "2512051535120000001",
      "AdditionalProperties": null
    },
    "Area": {
      "UID": "2512051538210000001",
      "Name": "Cookie Manufacturing",
      "Type": "Cookie Production",
      "AdditionalProperties": null
    }
  }
}

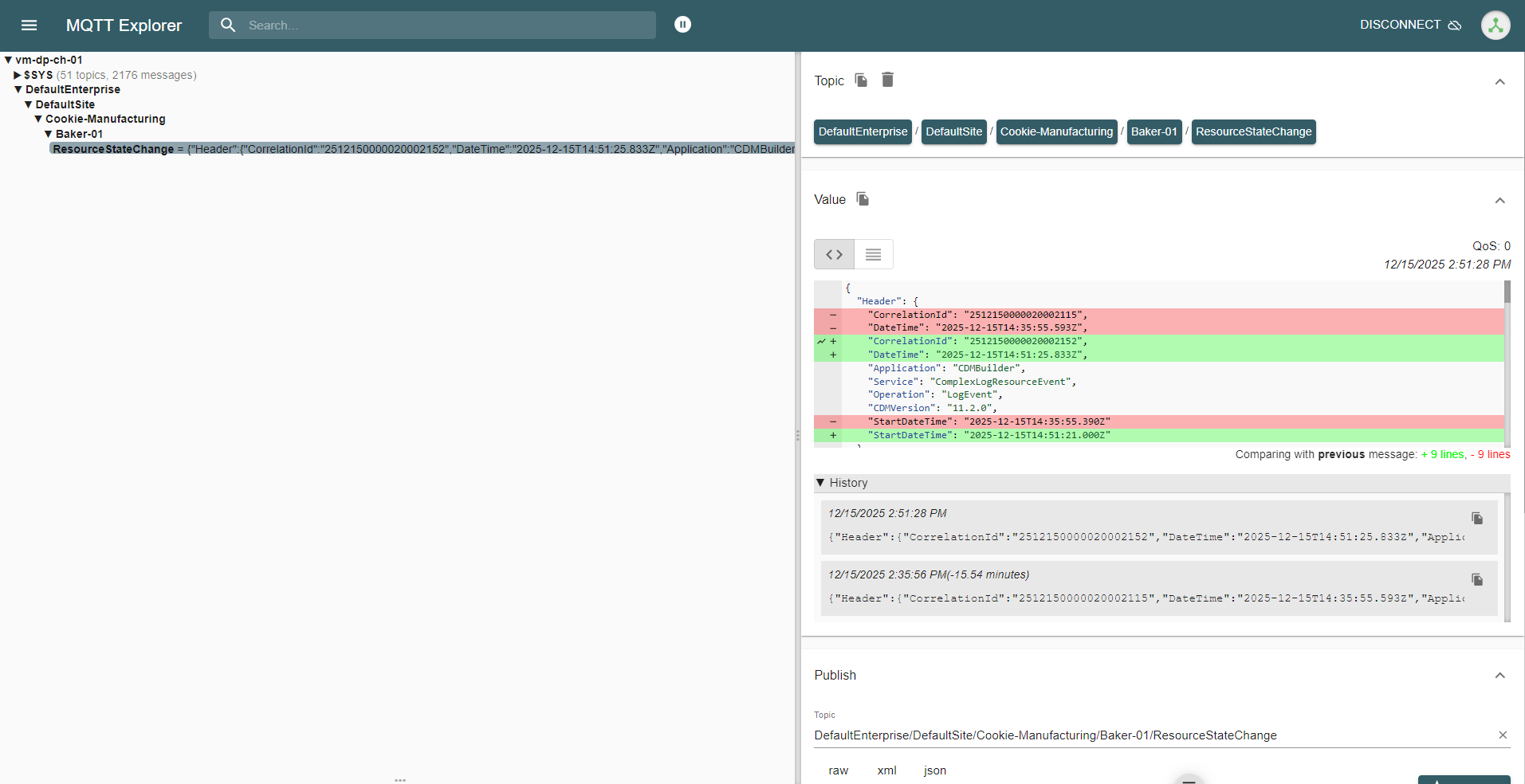

If the state of Baker-01 is later changed from Productive back to Standby, a new event is published to the same topic. MQTT clients such as MQTT Explorer visually highlight the differences between consecutive messages, as shown below.

So, in the Value section of the MQTT broker shown in the image above, the payload includes both the current state (highlighted in green) and the previous state (highlighted in red). This allows consumers to detect changes without maintaining local state, while each topic continues to receive new messages as events occur on the shop floor.

The History view in the MQTT broker confirms that all events are retained and ordered, providing:

• Full traceability of shop-floor changes;
• Real-time visibility across systems;
• A reliable event stream for downstream consumers.

This confirms that CDM events are successfully published through the UNS into the MQTT broker, enabling scalable, real-time insights across the shop floor.
