How to: Manage an Off-Flow#

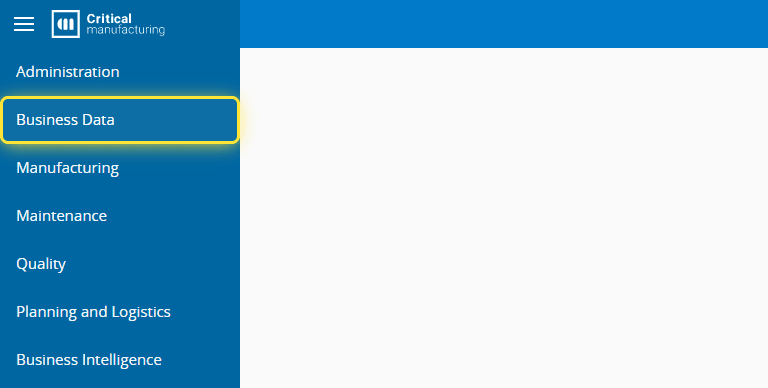

1. Go to the Business Data menu.#

Howto manageoffflow image 1

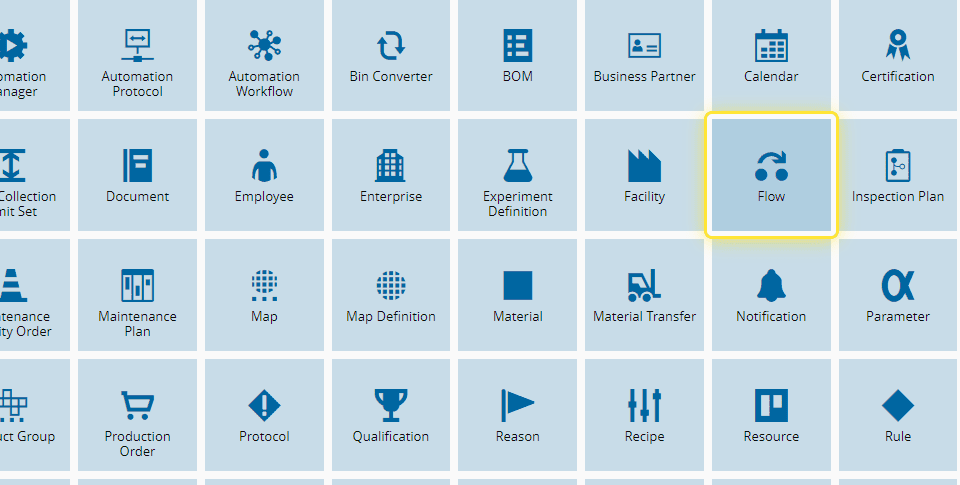

2. Select the Flow entity.#

Howto manageoffflow image 2

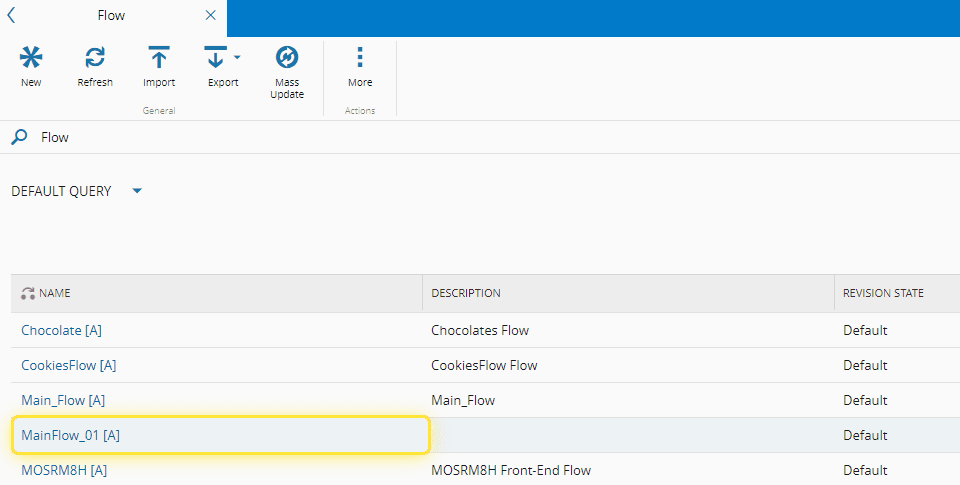

3. Select the Flow you want to use.#

Howto manageoffflow image 3

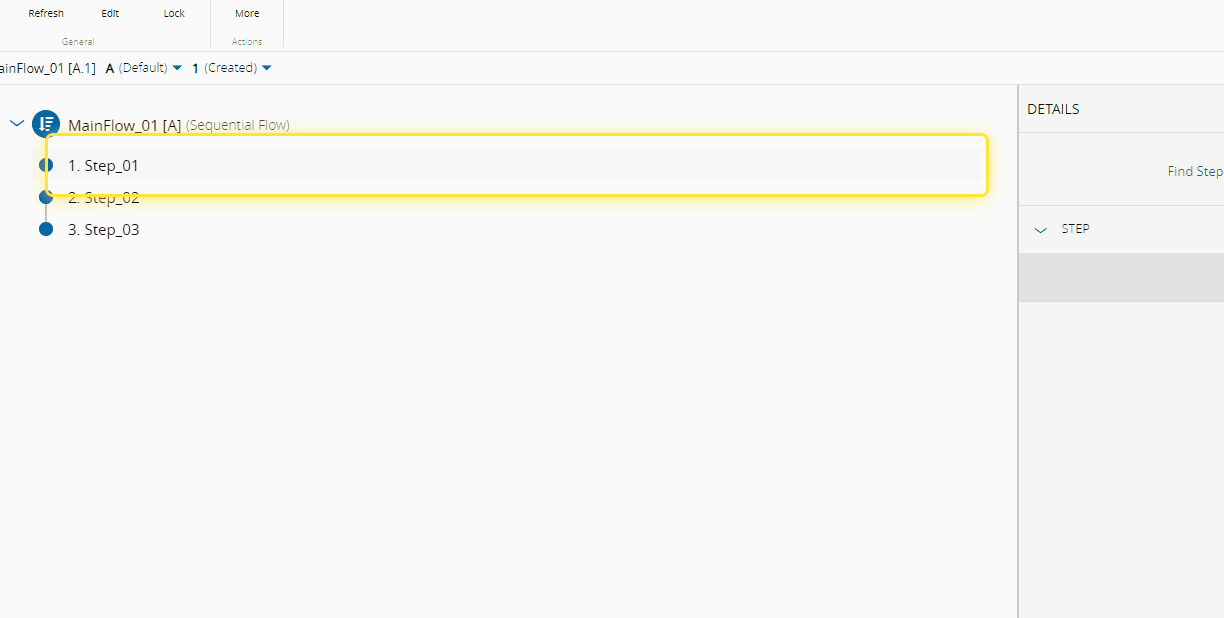

4. Select the Step for Rework.#

For more information, see Create Flow - Critical Manufacturing Documentation Portal ⧉

Howto manageoffflow image 4

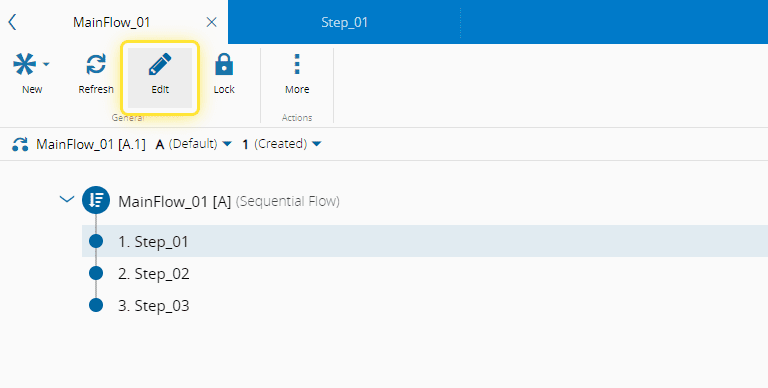

5. Select the Edit button.#

Howto manageoffflow image 5

6. Select the More action.#

Howto manageoffflow image 6

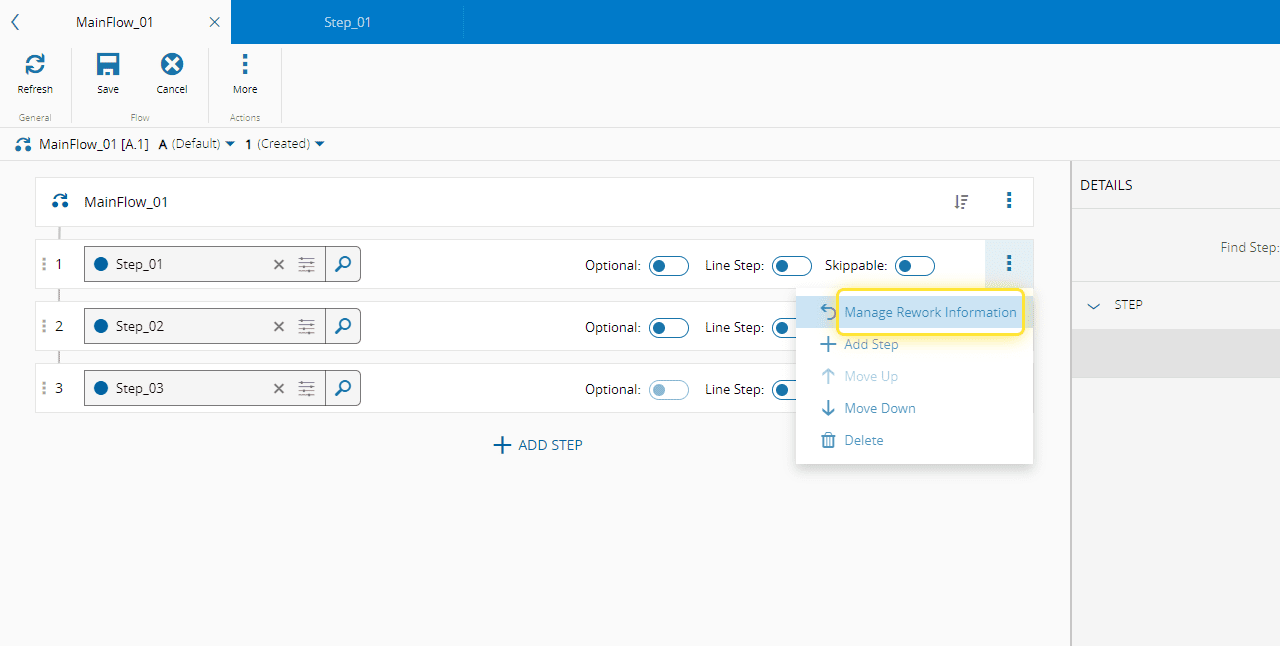

7. Select the Manage Rework Information option.#

Howto manageoffflow image 7

8. Select + to add Rework path to the Step.#

Howto manageoffflow image 8

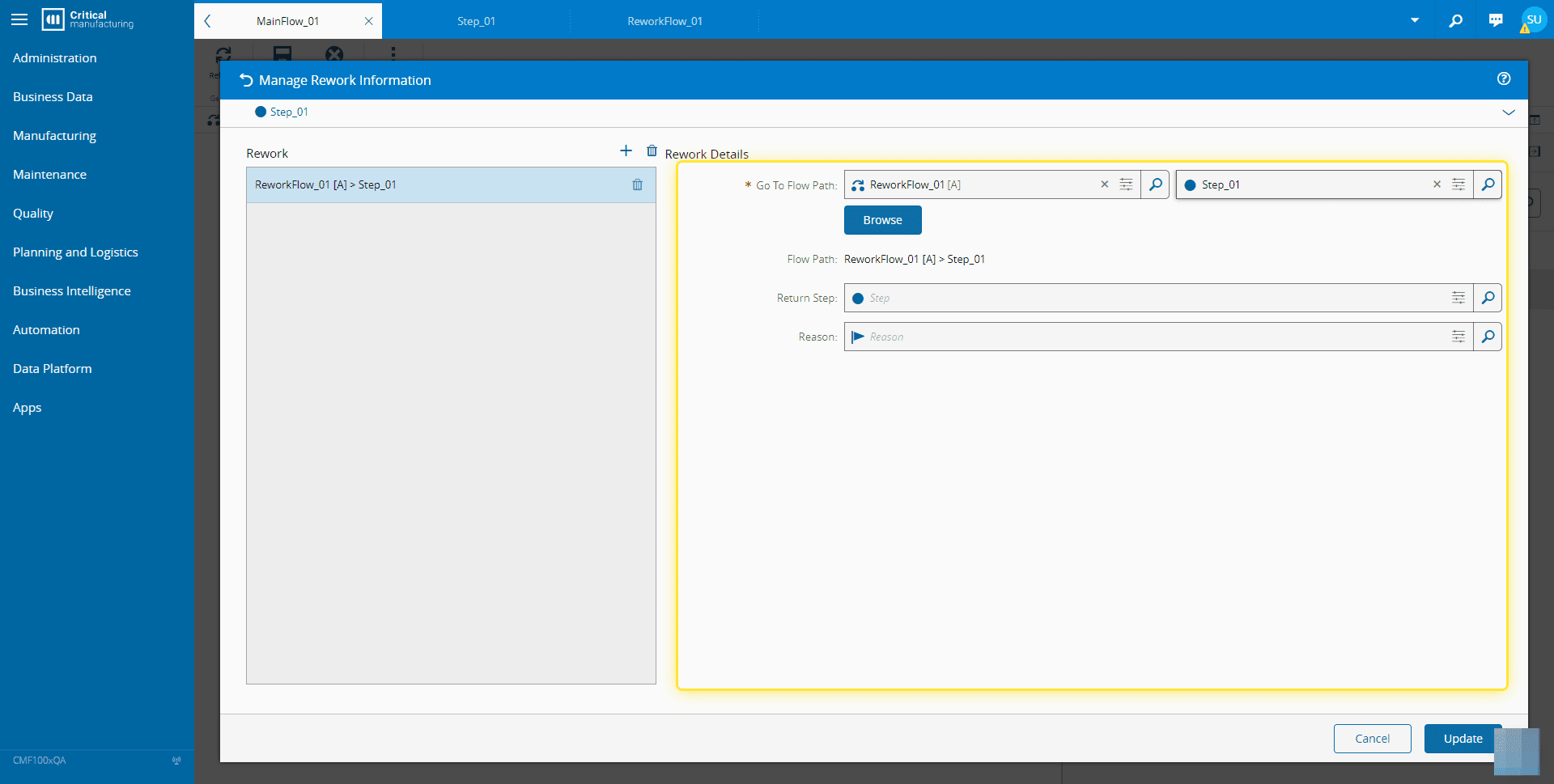

9. Complete the necessary fields.#

Howto manageoffflow image 9

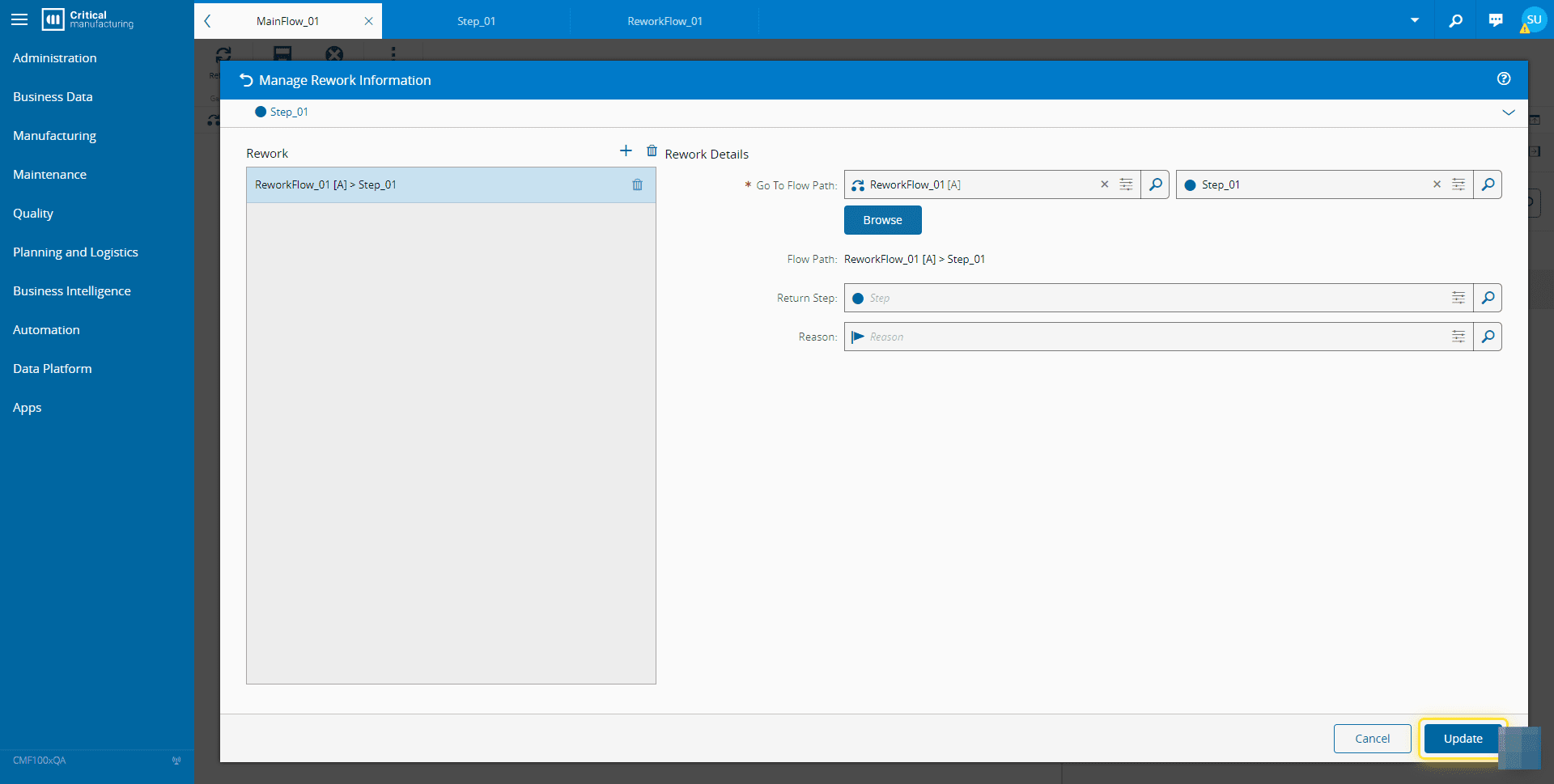

10. Select the Update button.#

Howto manageoffflow image 10

11. Select Save to update the Flow.#

Howto manageoffflow image 11
