View FabLive#

🔒 fabLive3D.Show

The FabLive view provides some visualization and interaction options as listed below:

  • General
    • Refresh - reload the FabLive from the database.
    • Save - saves the current FabLive view settings.
    • Open Entity - opens the details page of the entity associated with the current selected shape.
    • Full Screen - displays the FabLive in full-screen mode.
    • Reset Camera - resets the camera view.
  • Visualization/Camera
    • Perspective View (3D)
    • Top View (2D)
    • Isometric View (3D)
  • Rotation/Panning
    • Rotate - manually rotates the FabLive.
    • Auto Rotate - continuously rotates the FabLive around the Z-axis.
    • Reset Mode - stops the auto rotation.
    • Pan Mode - enters the panning mode.
  • Zoom
    • Zoom-In - zooms in
    • Zoom-Out - zooms out

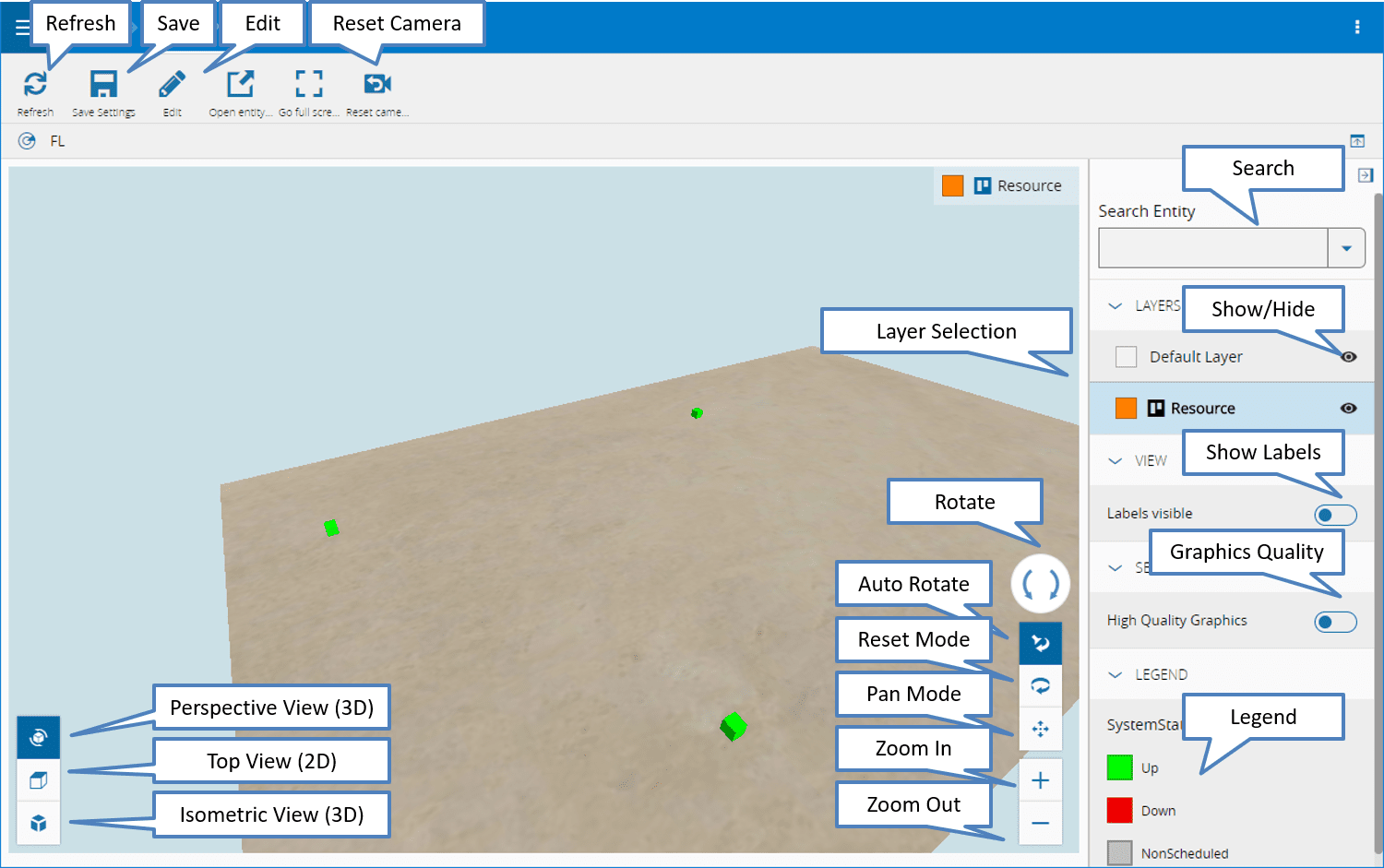

FabLive3DView

Info

Use the mouse for better control and interaction with the FabLive view.

The FabLive view supports the additional options:

  1. Search - searching for an entity in the selected layer.
  2. Selecting and showing or hiding a particular layer.
  3. Showing and hiding the labels of the entities.
  4. Selecting the utilization of High Quality Graphics (requires more hardware resources).
  5. Viewing the legend that maps the colors to particular entity property values.
