Browser#

browserIcon

Overview#

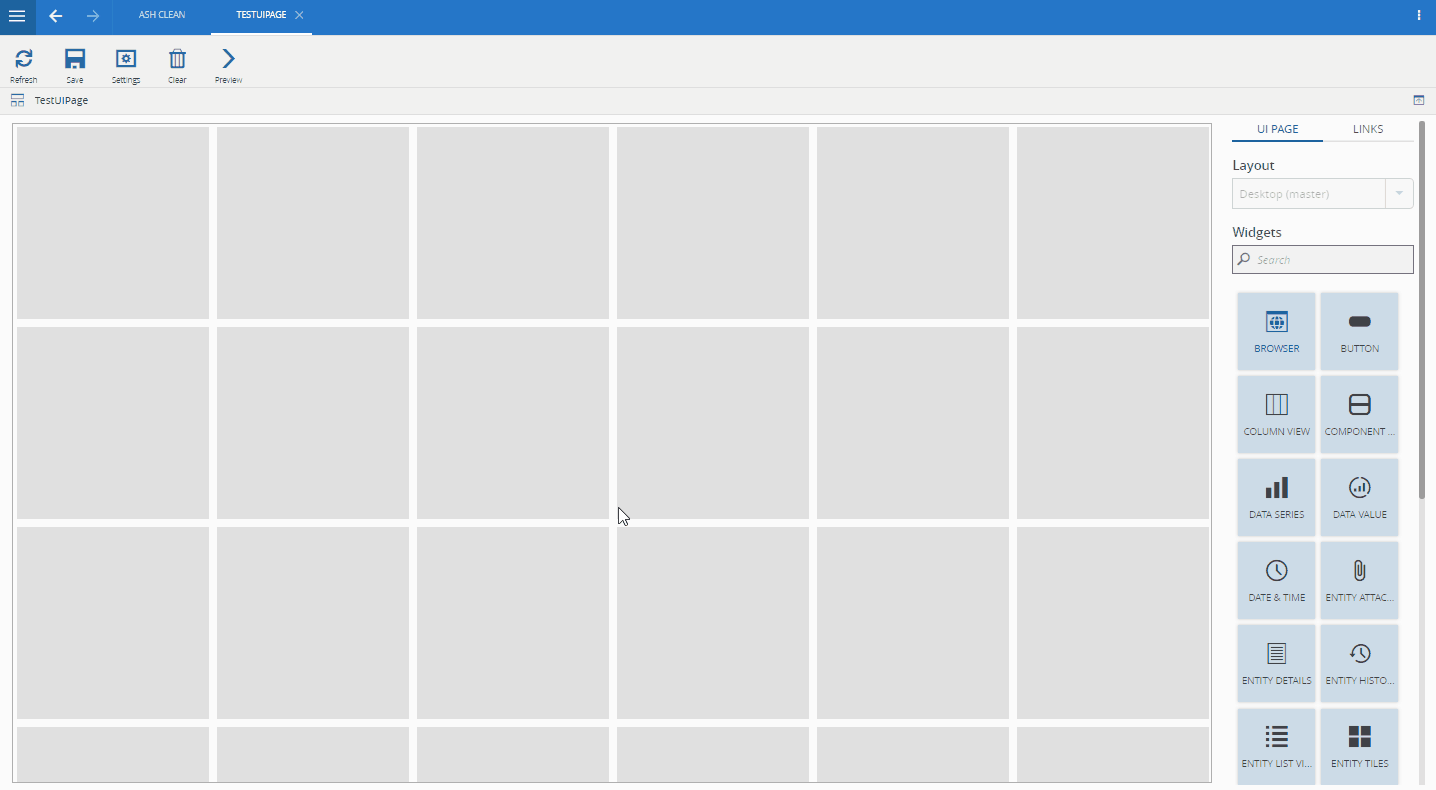

The Browser widget displays any URL content (PDF, HTML). An example is shown below, where a Browser widget is created, showing the Critical Manufacturing Website.

browser Example

Info

The URL must be accessible from the client browser.

General Steps#

To use the Browser widget in a UI Page, follow the steps below:

  1. In any UI Page in Build mode, select the Browser from the widgets list located on the left side of the page; drag and drop to the desired place in the UI Page.
  2. Enter the Settings section of the widget through the three vertical dots.

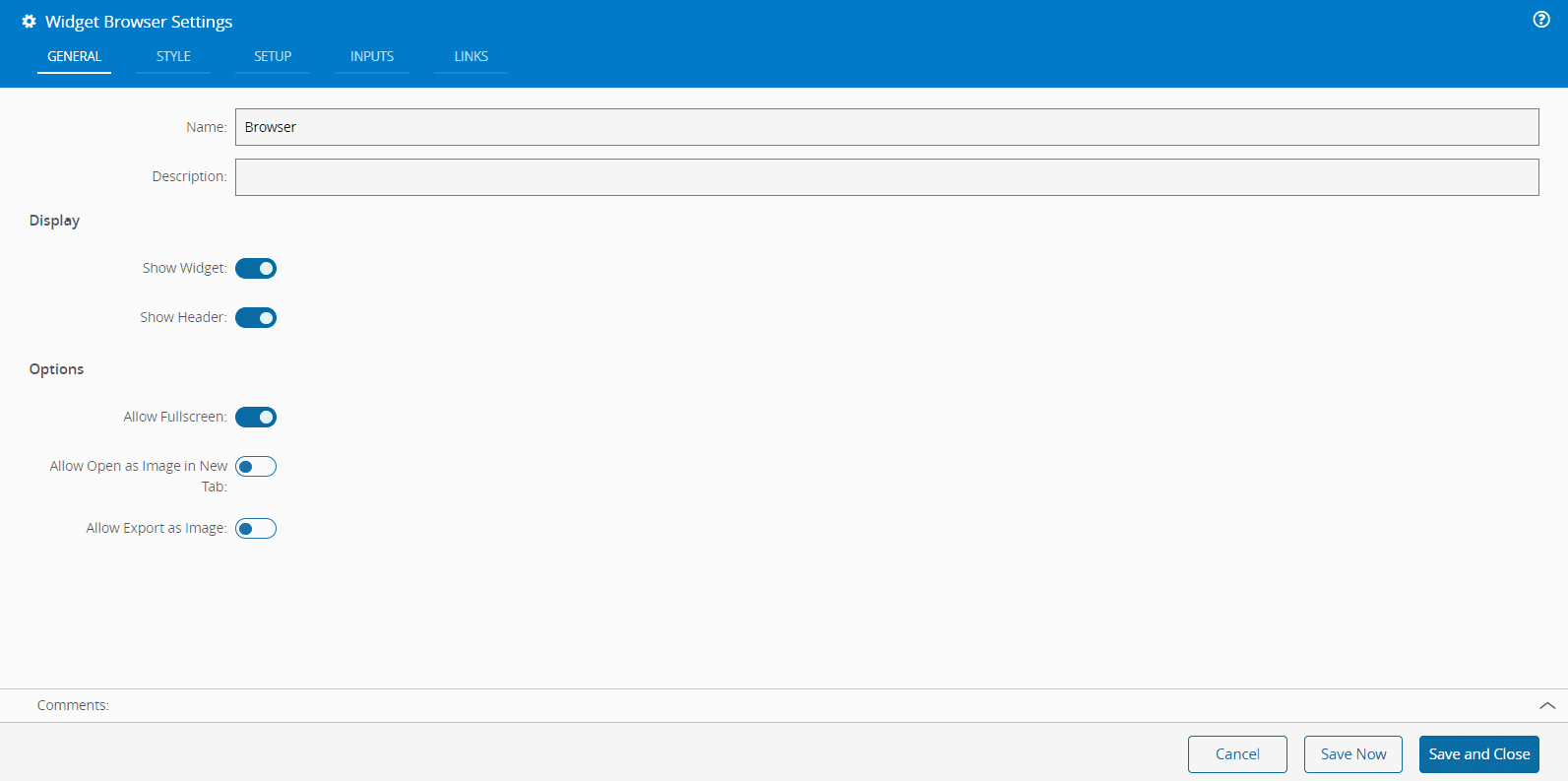

  3. In the General tab, provide a name and a description for the widget. Use the toggle buttons to specify whether the widget should be visible, display the header, or allow full screen mode. Additionally, determine if the widget can be opened as an image in a new tab or exported as an image.

General

Widget Customization#

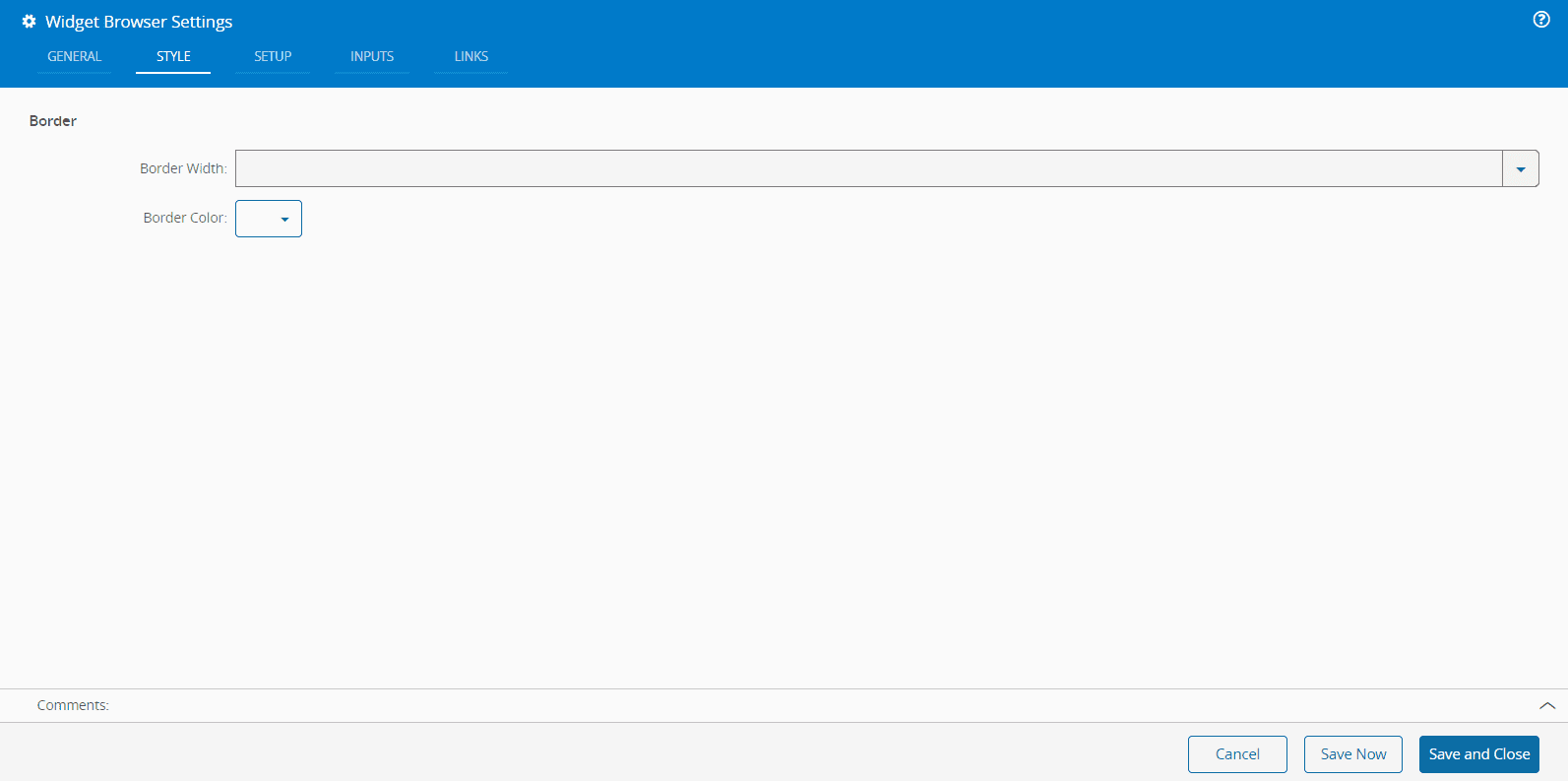

  1. Optionally, in the Style tab, you can define a Border Width and Color.

    style

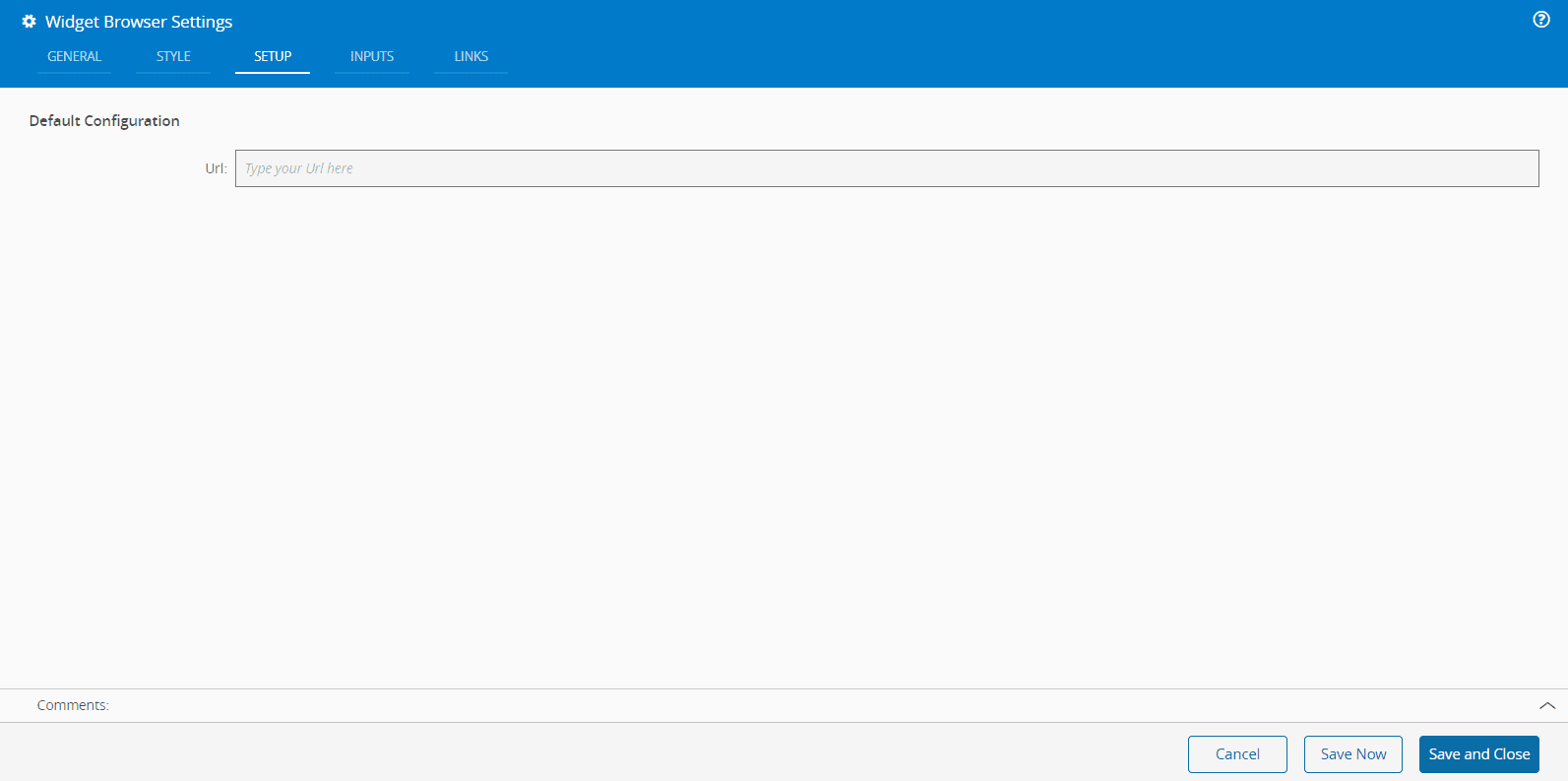

  2. In the Setup tab, provide the Url to be displayed.

    Setup

  3. Optionally, define the Inputs.

    Inputs

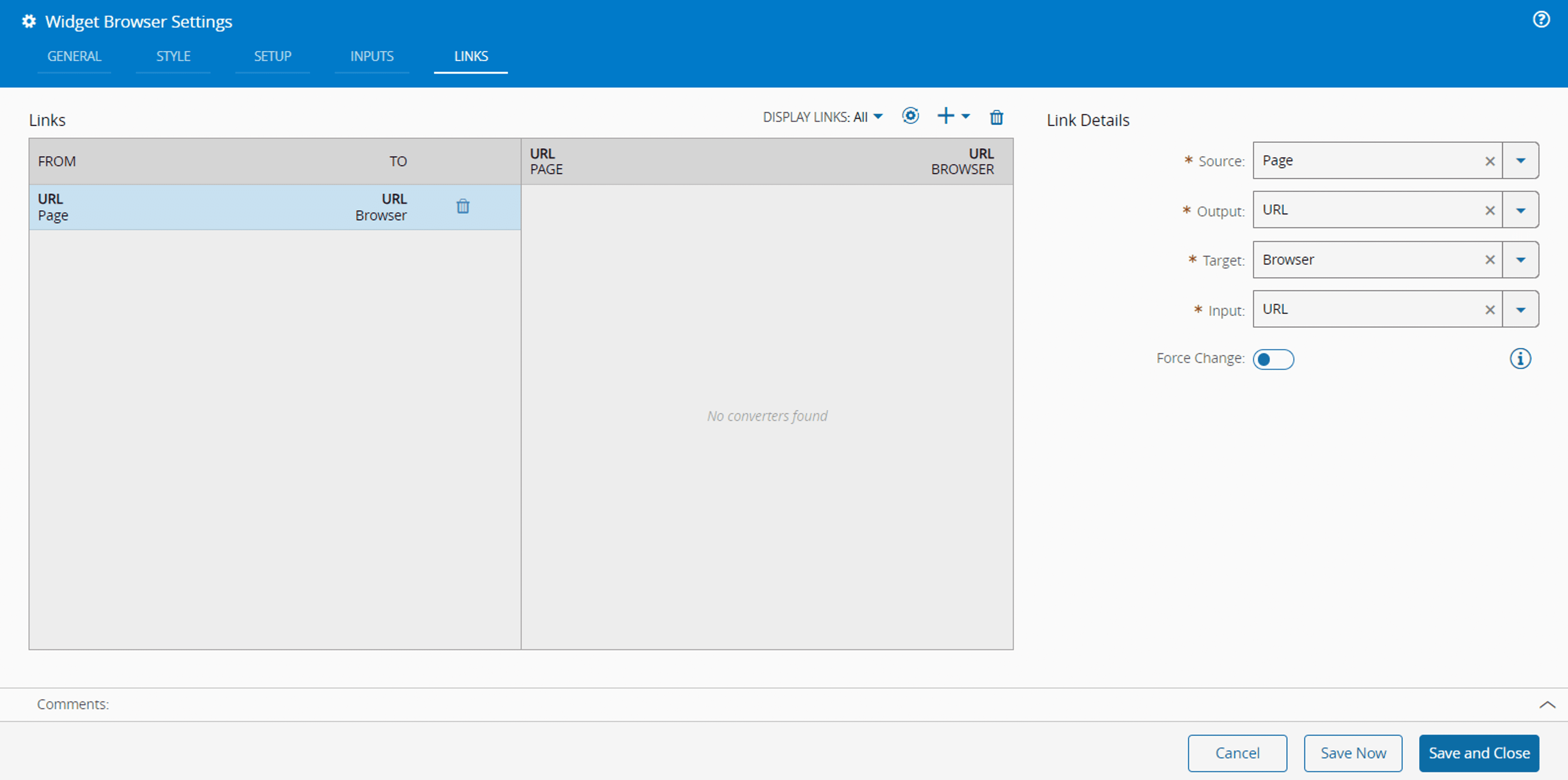

  4. You can also define the Links between this widget and other elements of the UI Page. As this widget doesn't provide any outputs it can only be used as target. The URL property, for example, can be used as input.

    Links

  5. By saving and closing the settings, the widget will be changed accordingly.
