Using Automation Tasks Library - Map a Converter#

A Converter is controlled in a settings view, and that will be the main component defined in the Automation Task Library.

Converters are an object defined under the array converters:

{
  "converters": [],
  "tasks": []
}

AutomationConverter Object#

This subsection intends to describe the format of the Metadata portion that represents a single converter (Use CamelCase for the Properties/Keys).

Property	Description	Notes
Name	Name of the converter, also used to identify the Runtime Class where the converter code can be located/executed.	Mandatory, String
DisplayName	Name of the converter that will be used to display in the GUI, defaults to Name if not defined.	Optional, String
InputDataType	Type of the input where this converter can act.	Mandatory, from an enumeration: • Any (Default) • String • Integer • Long • Decimal • Boolean • DateTime • Object • Buffer
OutputDataType	Type of the output this converter will emit.	Mandatory, from an enumeration: • Any (Default) • String • Integer • Long • Decimal • Boolean • DateTime • Object • Buffer
Parameters	Json object containing the parameters available to configure the behavior of the converter, where: Key: The name of the parameter. Value: Type of parameter (use the same type as the Input/Output Type).	Optional, JsonObject

"converters": [
    {
      "name": "anyToConstant",
      "inputDataType": "Any",
      "outputDataType": "Any",
      "displayName": "Any To Constant",
      "inputType": "Any",
      "outputType": "Any",
      "parameters": {
        "type": {
          "displayName": "type",
          "dataType": "Enum",
          "infoMessage": "Select the type to convert",
          "settings": {
            "enumValues": [
                "Boolean",
                "String",
                "Integer",
                "Long",
                "Decimal",
                "Object",
                "Date"
            ]
          }
        },
        "value": {
          "displayName": "value",
          "dataType": "String"
        }
      }
    }
]

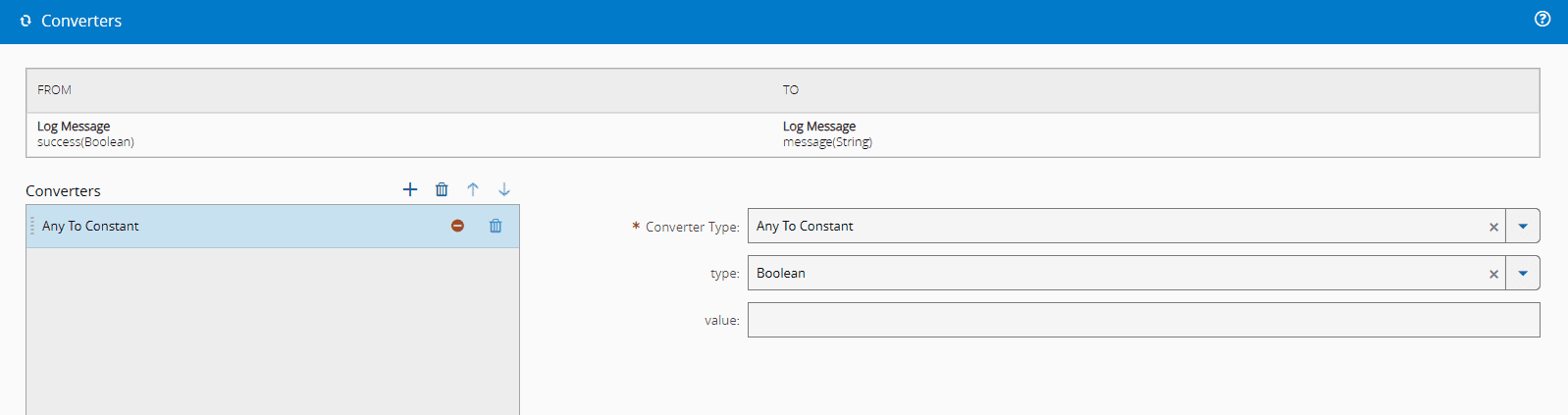

Notice that the converters are very simple. They will have a root definition of what the input and output type they are converting between are, and then they allow for additional parameters to be added in the settings.
