Configure Automation Manager#

AutomationManager.Edit

Overview#

This operation is used to configure an existing Automation Manager and change the current settings through the GUI.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Automation Manager exists in the system.

Sequence of Steps#

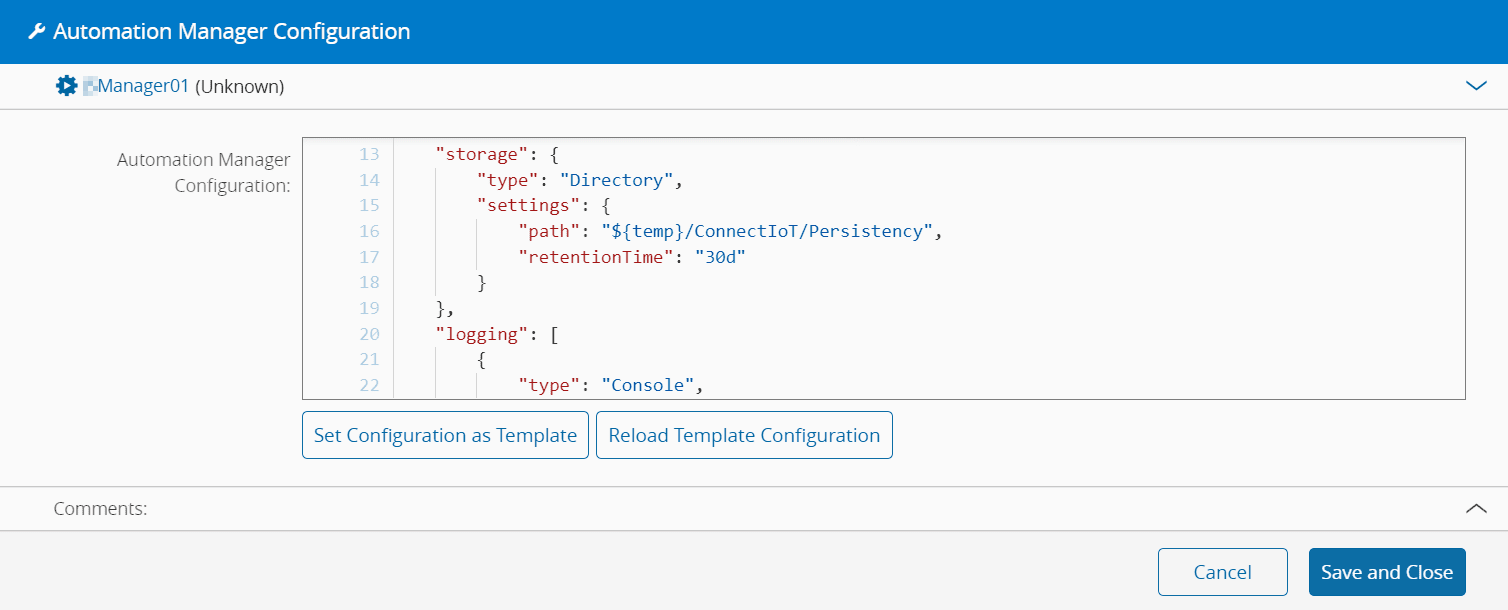

1. Accessing the Configuration Automation Manager can be done by selecting the Configuration button on the top ribbon. A dialog will open with a text editor with syntax highlighting for JSON that will allow the user to perform the necessary changes directly in the configuration settings.

2. Optionally, the user can save the current editor buffer as a template by selecting the Set Configuration as Template button. This template can be reloaded at a future time by selecting the Reload Template Configuration.

   Warning

   Saving a new template will overwrite the existing template in the configuration entry /Cmf/System/Configuration/ConnectIoT/TemplateConfiguration. If the user reloads the configuration from the template, the current value of this configuration field will be used.

3. Select Save and Close to complete the transaction and the new settings will be saved.
