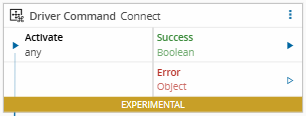

Driver Command Connect#
The Driver Command task executes lifecycle commands that control the state and operation of a driver.
It provides explicit control over when the driver connects, disconnects, or retries a connection.
Note
This task results from a split of the Equipment Setup and Equipment Setup Result tasks. It should be used along with: Equipment Configuration and Driver Event OnInitialize.
Workflows#
| Data Flow | Control Flow |
|---|---|
Inputs#
| Name | Data Type | Description |
|---|---|---|
| Activate | any | Activates the task. |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | Emits true when the command executes successfully. |
| Error | Error | Returns error details if the command fails. |
Settings#
| Name | Data Type | Default | Description |
|---|---|---|---|
| Command | String | Connect | Lifecycle command to execute. Supported commands are: Connect Disconnect Reconnect SetupSuccess SetupFailure |
Behavior#
The Driver Command task manages the driver’s operational state by executing lifecycle commands.
It is used after configuration and event initialization to establish or control communication with the equipment.
A typical workflow using this task includes the following steps:
- Driver Event detects a lifecycle event (such as
OnInitialize). - Equipment Configuration defines the driver’s parameters and setup timeouts.
- Driver Command issues the appropriate lifecycle command (for example,
Connect) to start driver communication.
