Get Equipment Properties#
This task is used to ask the equipment for a specific property, therefore it's associated to a particular driver.

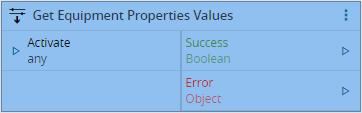

Inputs#
| Name | Data Type | IsTrigger | Description |
|---|---|---|---|
| Activate | any | Yes | Requests the equipment for the configured properties values. |
Outputs#
| Name | Data Type | Description |
|---|---|---|
<custom list> | ` | Output properties |
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |
Settings#

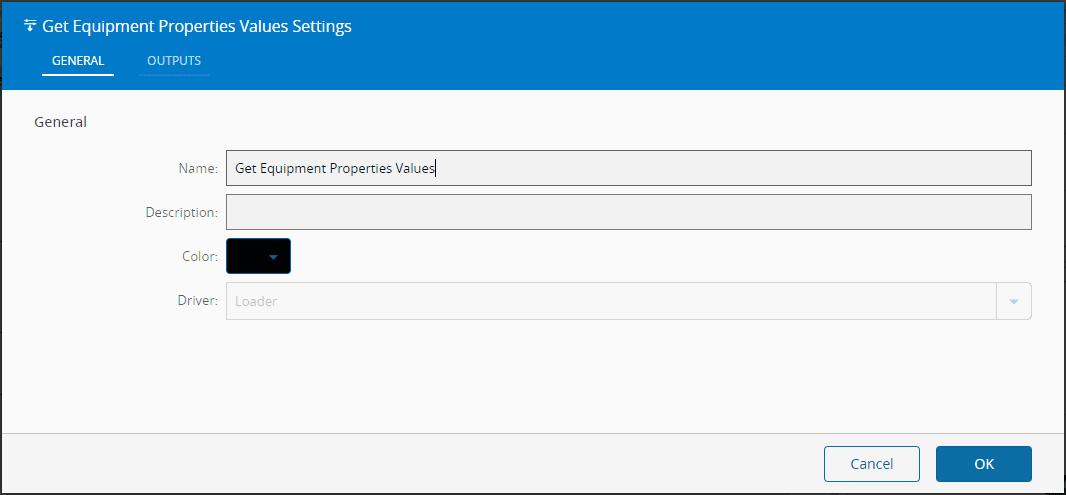

On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Description |
|---|---|---|
| Driver | String | Chosen Driver |

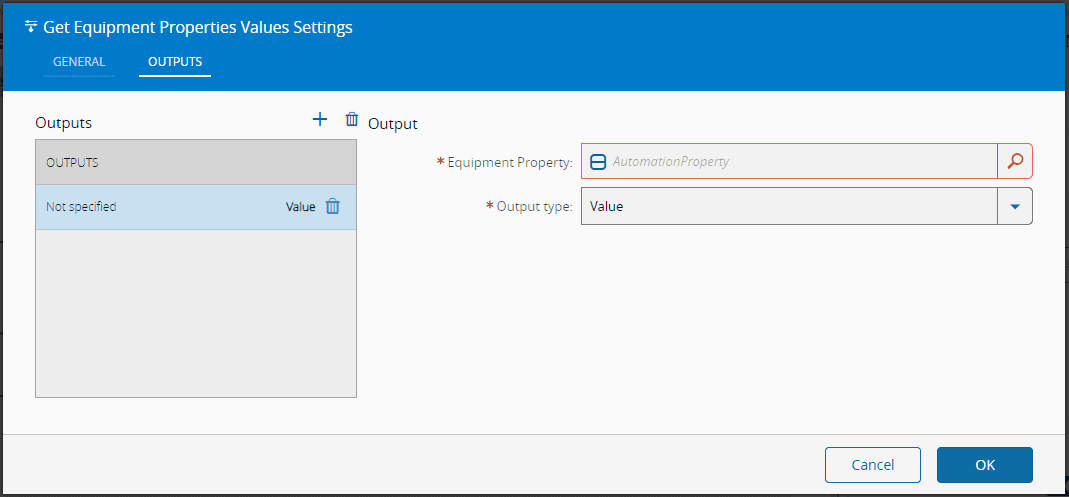

On the Outputs Tab, you have the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Equipment Property | EquipmentProperty | \<empty> | A driver definition property. | |
| Output Type | enum | ValueRawValue | Value | The output type of the property. |
Behavior#
In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller). When sending a value to the input activate, the task will activate and request the equipment for the values of the properties configured.
Remarks#
All the communication with the equipment is handled by the driver in the backend.
