Subscribe In Driver#
The task subscribe in Driver allows the workflow to listen on a specific driver message type, and when a message is triggered to retrieve it. It is used to allow real-time customization (when available) to the protocol process.
Inputs#
| Name | Data Type | Description |
|---|---|---|
| autoActivate | Boolean | If true message type is automatically registered |
| messageType | String | Message type we wish to subscribe |
| Activate | any | Activate the subscription |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Type | String | Type of the driver notification received |
| message | Object | Received message content |
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |
Settings#

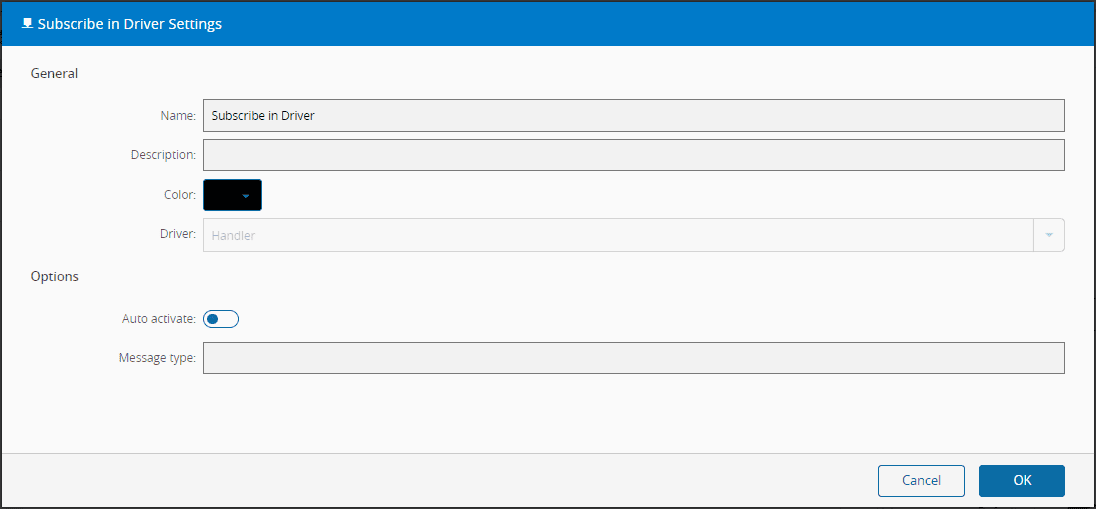

On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Default | Description |
|---|---|---|---|
| Auto activate | Boolean | false | Default value for the auto activate flag |
| Message type | String | Default message type we wish to subscribe |
Behavior#
In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller).
On activation (automatic or by the Activate input), the task will register the topic in the driver.
When the driver publishes a message that matches the topic, the outputs will be emitted.
Remarks#
Not all protocol drivers support/expect notifications.
Each protocol driver has it's own set of expected types and content formats. Refer to their specific documentation for more information.
This task uses a specific structure of context-based data called zone. More information on this topic can be read in the Zones page.
