ML Prediction#

mlmodel

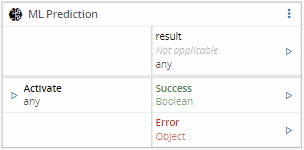

The task ML Prediction is a Task that calculates a prediction based on an ML Model and returns its result.

mlprediction_01

Settings#

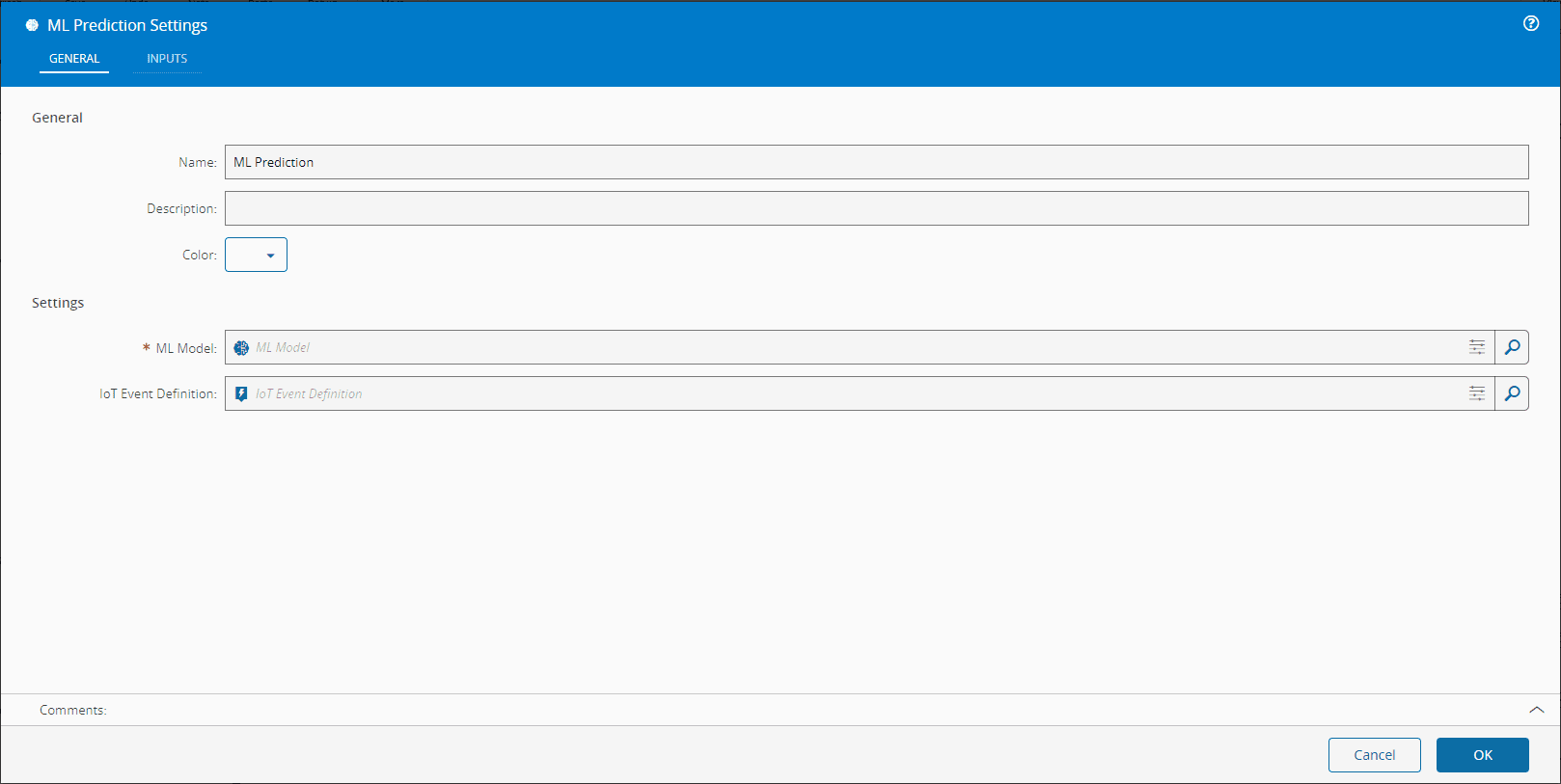

On the General Tab, you have the usual settings and the following options settings:

Name Data Type Values Default Description
ML Model ML Model ML Model entity from MES
IoT Event Definition IoT Event Definition IoT Event Definition entity from MES

mlprediction_02

If an IoT Event Definition is selected, the Inputs Tab will be hidden and the Features Tab will show up. In there you need to map the IoT Event Definition Properties to the ML Model Features:

mlprediction_03

Inputs#

The inputs depend on the ML Model that was selected and on whether or not an IoT Event Definition was selected.

Name Data Type Values Description
iotEvent string The whole event. Appears when an IoT Event Definition was selected
eventId string The Id of the Event. Appears when no IoT Event Definition was selected
FeatureNames string An input for each Feature of the ML Model. Appears when no IoT Event Definition was selected
Activate Any Activates the task execution

If no IoT Event Definition was selected, there will be an input for the Event Id and an input for each Feature:

mlprediction_04

If an IoT Event Definition was selected, there will be an input for the whole Event:

mlprediction_05

Outputs#

Name Data Type Values Description
result any The full result of the prediction. Includes info about the ML Model version that was used
prediction any The prediction itself. The data type depends on the ML Model Type
score Decimal The score of the prediction. This might be hidden depending on the ML Model Type
Success Boolean If there was no problem emits a true
Error Error Error that occurred during the processing of this task

Behavior#

The task is used to calculate a prediction based on an ML Model when an IoT Event is received.

Remarks#

This tasks has 2 modes depending on whether or not an IoT Event Definition is selected in the settings.
