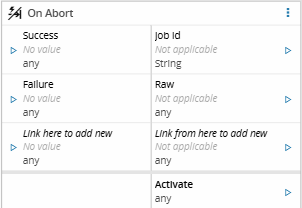

On Abort#
The onAbort task receives an onAbort event from the Worker Manager and emits outputs that allow custom logic to be executed for aborting the current Job. Based on the result of that custom logic, the task receives either a Success or Failure input and sends the corresponding result back to the Worker Manager.
Details#
| Fields | Details |
|---|---|
| Scope | Factory Automation Enterprise Integration Data Platform |
| Workflow | Data flow Control flow |
IsProtocol flag |
Inputs#
| Name | Data Type | Description |
|---|---|---|
| Success | any | Triggering this input will result in the Abort success |
| Failure | any | Triggering this input will result in the Abort failure |
Table: On Abort inputs
Outputs#
| Name | Data Type | Description |
|---|---|---|
| job id | any | Emits the current Job ID after receiving an onAbort event |
| Raw | any | Emits the raw data received in the onAbort event |
| Activate | any | Activates the task execution |
Table: On Abort outputs
Settings#
In the General Tab, you can configure standard settings as well as the following option:
| Name | Data Type | Default | Description |
|---|---|---|---|
| Timeout | Integer | 300000 | Timeout for the Abort process. The default is 5 minutes (300000 ms) and 0 means there's no timeout. |
Table: On Abort settings
Additional outputs can be defined in the Outputs tab.
Behavior#
The On Abort task must be used with the Worker Manager, which initiates it through the onAbort event. After the event is received, custom logic can be inserted in the workflow, and then connected to the Success or Failure inputs to determine the outcome.
