Mount#

Screenshot showing a directory creation event with mount details.

Note

This task is exclusively supported on Windows-based environments.

When activated, the mount task will create a link from a remote to a local path. The path can be provided either by the input port or in the task settings.

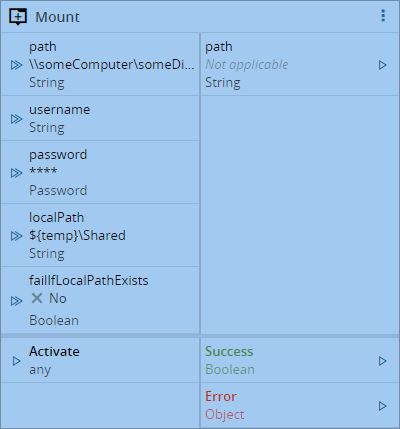

Screenshot showing a mount configuration interface with fields for "i" and "path".

Inputs#

Name DataType Description
path String Remote path to mount
username String Username of the share
password String Password of the share
localPath String Local directory to use
failIfLocalPathExists Boolean Fail if the local path already exists. Can delete it otherwise
Activate any Activate the task

Outputs#

Name DataType Description
path String Local path where the mount is accessible
Success Boolean Triggered when the task is executed with success
Error Error Triggered when the task failed for some reason

Settings#

On the General tab, you have the usual settings and the following settings:

Name DataType Values Default Description
Path String Remote path to mount
Username String Username of the share
Password String Password of the share
Local Path String Local directory to use
Fail if local path exists Boolean False Fail if the local path already exists. Can delete it otherwise

For the Local Path you can use tokens as represented below:

Available tokens:
  ${temp} - Temporary directory of the user
  ${id} - DriverId ("\" chars replaced with "_")

Examples:
  ${temp}\files\${id}
  c:\Locationshared

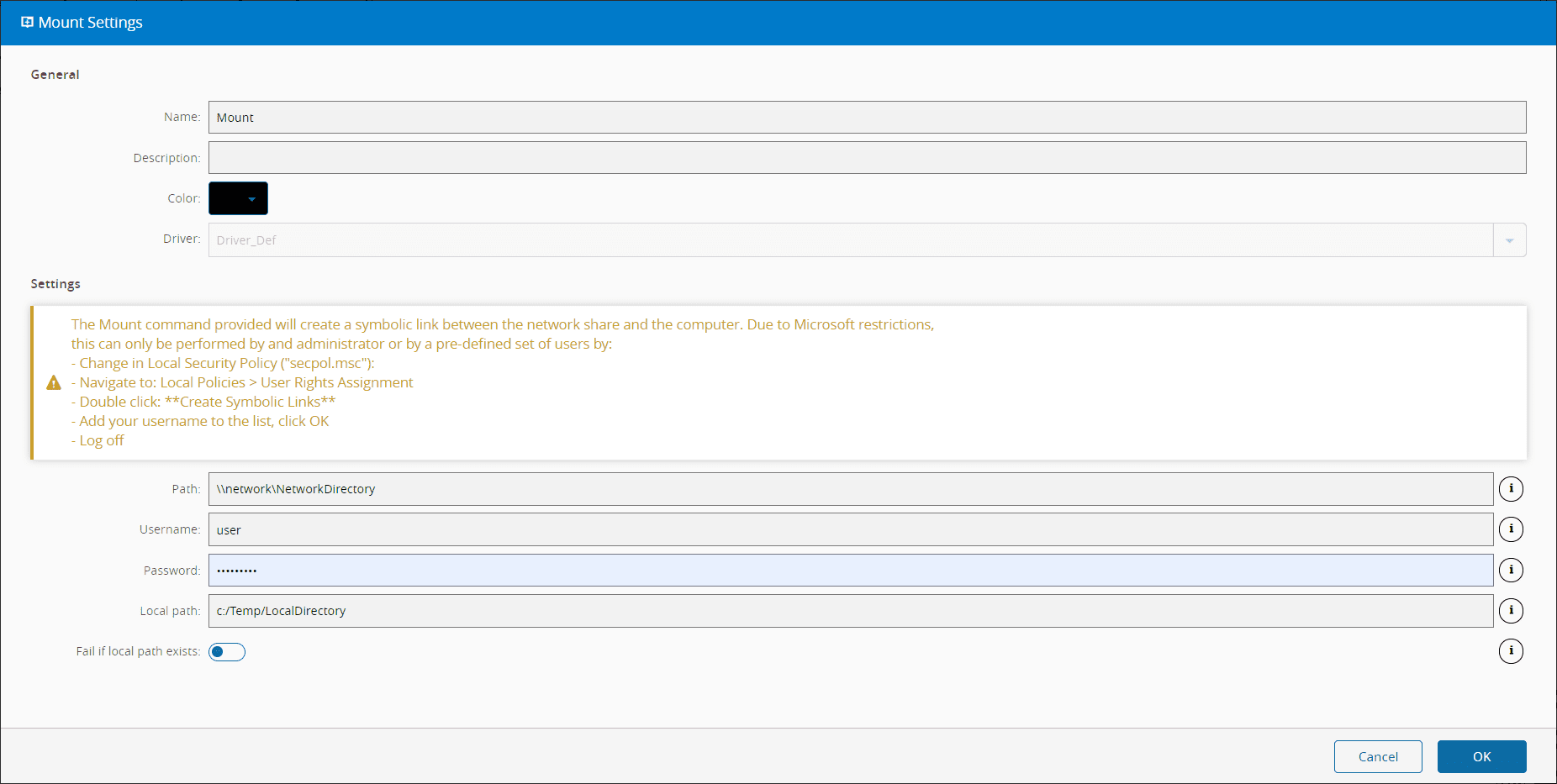

Screenshot showing settings options in a system configuration menu.

Behavior#

In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller).

Upon activation, will send a Mount command to the driver where it will try to mount the network path provided in the pathparameter, using (optionally) the username and password. It will map it into the localPath location using a symbolic Link.

When the operation is executed with success, both Success and result outputs emit their respective values. In case of the task , for some reason, is not able perform the operation, an Error is emitted.

Remarks#

The Mount command provided will create a symbolic link between the network share and the computer. Due to Microsoft restrictions, this can only be performed by and administrator or by a pre-defined set of users by:

  • Change in Local Security Policy (secpol.msc)
  • Navigate to: Local Policies > User Rights Assignment
  • Double click: Create Symbolic Links
  • Add your username to the list, click OK
  • Log off
