On Fuji Nexim Request#

This Task is specific to be used with the Fuji Nexim Driver.

This Task receives request messages of a specific type, which can be configured in the Task's settings.

The Task's static and dynamic outputs are updated after each event received.

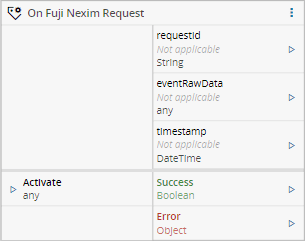

Inputs#

Name	Data Type	Description
Activate	`Boolean`	Activates the task

Name	Data Type	Description
requestId	`string`	The RequestId of the message received
timestamp	`DateTime`	The timestamp for when the event is triggered
eventRawData	`any`	The raw automation event object
Success	`Boolean`	If there was no problem emits a true
Error	`Error`	Error that occurred during the processing of this task

On the General Tab, you have the usual settings and the following settings:

Name	Data Type	Values	Default	Description
Auto Activate	`Boolean`		true	If the event is activated by the register of an event of that type or if it is only activated by the `activate` input
Message Full Name	`string`			Name of the message from Fuji Nexim specification, e.g.: STARTEV.
Message	`enum`	`BOM List` `Machine State Change` `Panel CheckIn` `Panel CheckOut` `Program Change Completion` `Program Change Completion 2` `Production Completed` `Production Start`		Specifies the behavior of the task

When activated, this Task subscribes to a specific request message, configured in the settings.

Every time a message is received (via request) it emits the respective results to its outputs.

None.
