Send Fuji Nexim Reply#

This Task is specific to be used with the Fuji Nexim Driver.

This Task sends reply messages of a specific type, which can be configured in the Task's settings.

Inputs#

Name	Data Type	Description
requestId	`string`	The RequestId of the message received
Activate	`Boolean`	Activates the task

Name	Data Type	Description
Success	`Boolean`	If there was no problem emits a true
Error	`Error`	Error that occurred during the processing of this task

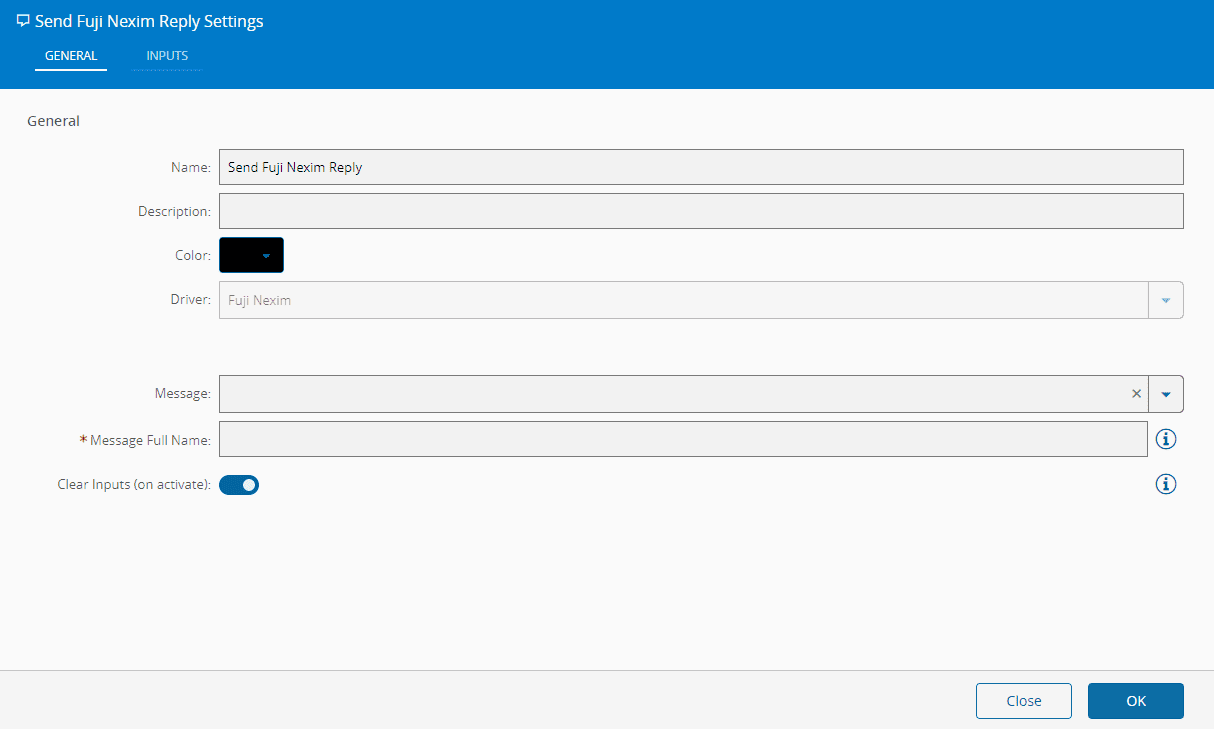

On the General Tab, you have the usual settings and the following settings:

Name	Data Type	Values	Default	Description
Clear Inputs (on activate)	`Boolean`		`true`	Defines if it is to clear the input values after receiving an activate
Message Full Name	`string`			Name of the message from Fuji Nexim specification, e.g.: STARTEV_ACK.
Message	`enum`	`BOM List Reply` `Machine State Change Reply` `Panel CheckIn Reply` `Panel CheckOut Reply` `Program Change Completion Reply` `Program Change Completion 2 Reply` `Production Completed Reply` `Production Start Reply`		Specifies the behavior of the task

When activated, this Task sends a reply of a specific message, configured in the settings.

The requestId input is important to identify the request to be replied to.

None.
