Execute Cfx Command#

This Task is specific to be used with the IPC-CFX Driver.

This Task executes command CFX messages of a specific type (which can be configured in the Task's settings) and waits for the reply.

Inputs#

Name	Data Type	Description
Activate	`Boolean`	Activates the task

Name	Data Type	Description
Success	`Boolean`	If there was no problem emits a true
Error	`Error`	Error that occurred during the processing of this task

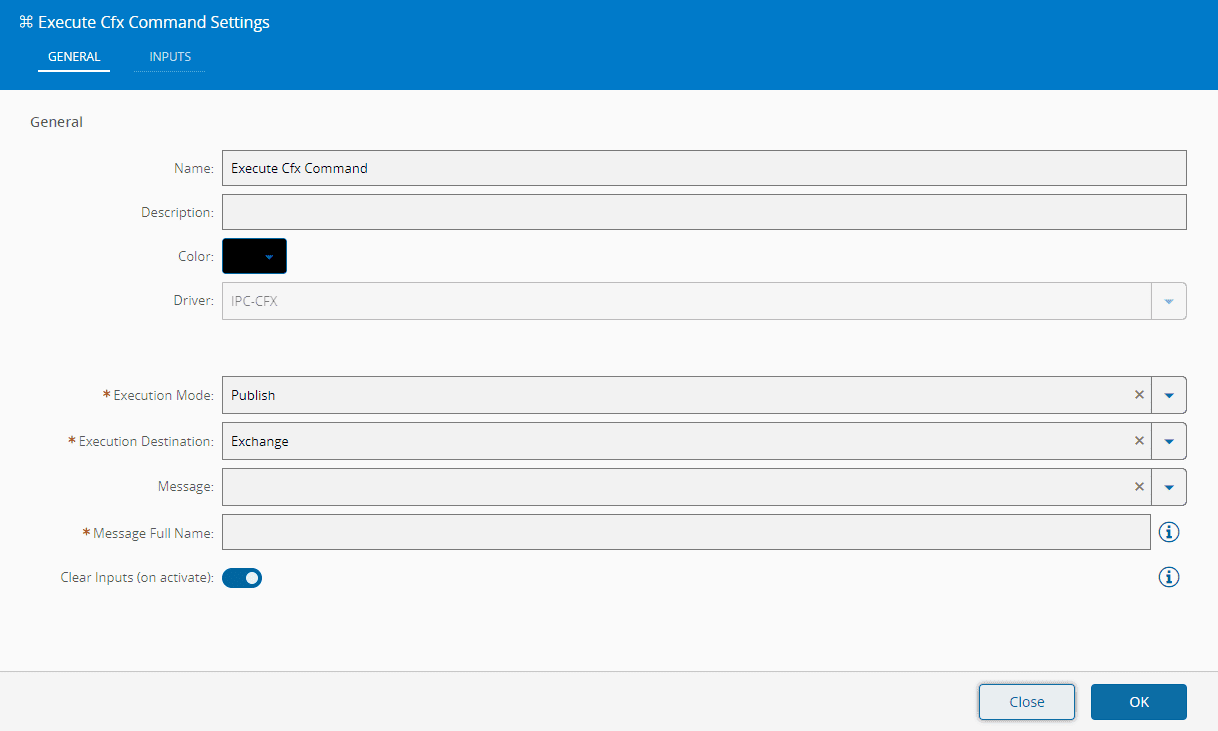

On the General Tab, you have the usual settings and the following settings:

Name	Data Type	Values	Default	Description
Execution Mode	`enum`	`Publish` `SendRequest`	`Publish`	Execution Mode
Execution Destination	`enum`	`Exchange` `MessageSource` `TargetHandle`	`Exchange`	Execution Destination
Clear Inputs (on activate)	`Boolean`		`true`	Defines if it is to clear the input values after receiving an activate
Message Full Name	`string`			Name of the complete CFX message with the namespace included, e.g. 'CFX.Production.ActivitiesExecuted'.
Message	`enum`	`StationStateChanged`		Specifies the behavior of the task

When activated, this Task executes a command of a specific CFX message and waits for the reply.

After receiving the reply, this Task's outputs are updated.

None.
