On Cfx Event#
This Task is specific to be used with the IPC-CFX Driver.
This Task receives event CFX messages of a specific type, which can be configured in the Task's settings.
The Task's static and dynamic outputs are updated after each event received.

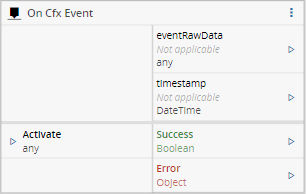

Inputs#
| Name | Data Type | Description |
|---|---|---|
| Activate | Boolean | Activates the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| timestamp | DateTime | The timestamp for when the event is triggered |
| eventRawData | any | The raw automation event object |
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |

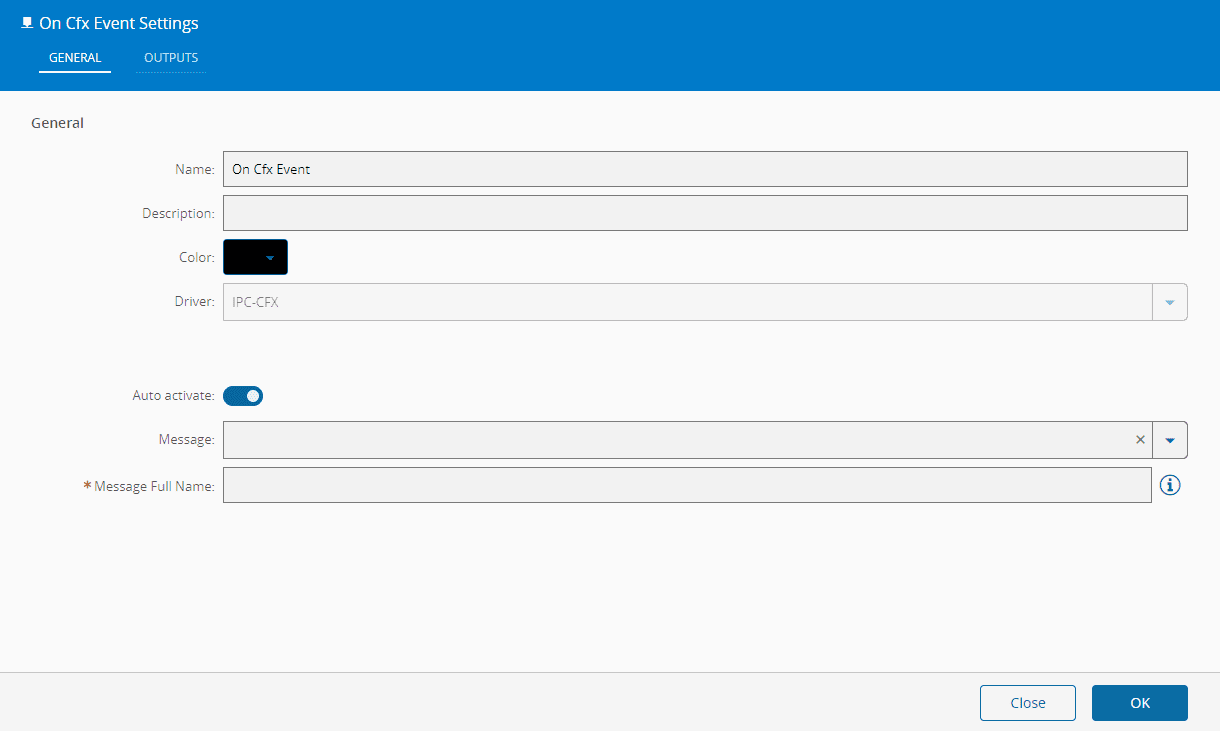

Settings#
On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Auto Activate | Boolean | true | If the event is activated by the register of an event of that type or if it is only activated by the activate input | |
| Message Full Name | string | Name of the complete CFX message with the namespace included, e.g. 'CFX.Production.ActivitiesExecuted'. | ||
| Message | enum | StationStateChangedUnitsInspectedWorkStartedWorkCompleted | Specifies the behavior of the task |
Behavior#
When activated, this Task subscribes to a specific event CFX message, configured in the settings.
Every time a message is received (via event) it emits the respective results to its outputs.
Remarks#
None.
