On Cfx Request#

This Task is specific to be used with the IPC-CFX Driver.

This Task receives request CFX messages of a specific type, which can be configured in the Task's settings.

The Task's static and dynamic outputs are updated after each event received.

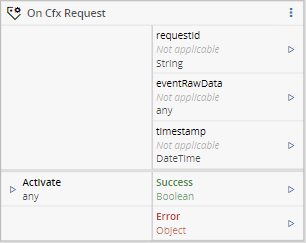

Inputs#

Name	Data Type	Description
Activate	`Boolean`	Activates the task

Name	Data Type	Description
requestId	`string`	The RequestId of the message received
timestamp	`DateTime`	The timestamp for when the event is triggered
eventRawData	`any`	The raw automation event object
Success	`Boolean`	If there was no problem emits a true
Error	`Error`	Error that occurred during the processing of this task

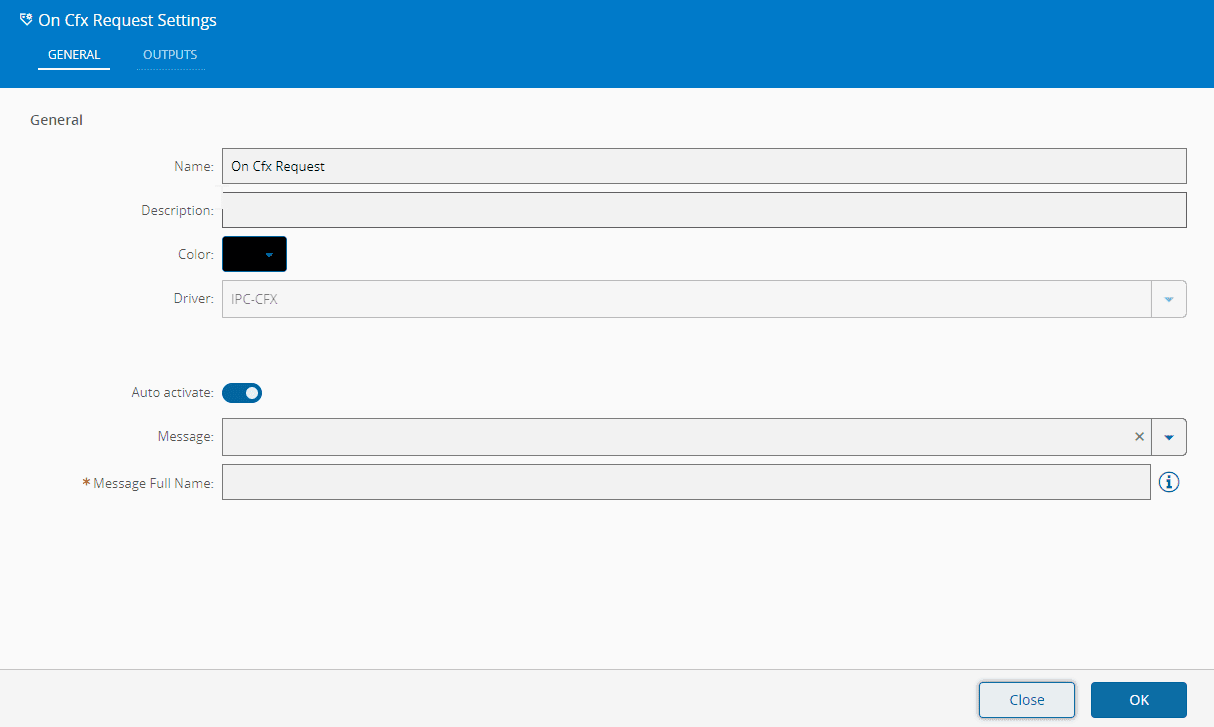

On the General Tab, you have the usual settings and the following settings:

Name	Data Type	Values	Default	Description
Auto Activate	`Boolean`		true	If the event is activated by the register of an event of that type or if it is only activated by the `activate` input
Message Full Name	`string`			Name of the complete CFX message with the namespace included, e.g. 'CFX.Production.ActivitiesExecuted'.
Message	`enum`	`ActivateRecipeRequest` `ValidateUnitsRequest` `BlockMaterialsRequest`		Specifies the behavior of the task

When activated, this Task subscribes to a specific request CFX message, configured in the settings.

Every time a message is received (via request) it emits the respective results to its outputs.

None.
