Data Collection#

This task is intended to integrate with the PerformDataCollection/PostDataCollection functionality of the MES. By receiving a DataCollection and readings of DataCollection Points, it calls the PerformDataCollection service to create the DataCollectionInstances and post the points. If there's no DataCollection provided (only a Material), the service will check which DataCollectionInstance is associated with that Material, and Post the Data Points to that DataCollectionInstance.

Note

All entities work if only the property Name is provided.

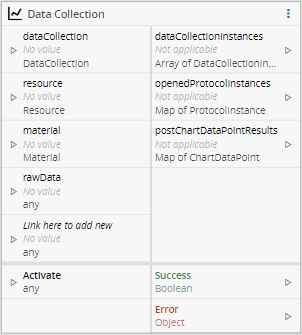

Inputs#

Name	Data Type	Description
dataCollection	`Cmf.Navigo.BusinessObjects.DataCollection`	The DataCollection to be used.
resource	`Cmf.Navigo.BusinessObjects.Resource`	The Resource to be used.
material	`Cmf.Navigo.BusinessObjects.Material`	The Material to be used.
rawData	`Any`	The DataCollectionPoints raw values
`configurable`	`Any`	Custom inputs that will provide the option to provide values to each Parameter individually (has priority over the rawData)
Activate	`Any`	Activate/Deactivate the listeners for the requests from MES

Outputs#

Name	Data Type	Description
dataCollectionInstances	`Cmf.Navigo.BusinessObjects.DataCollectionInstanceCollection`	The DataCollectionInstances created/used after the Perform/Post.
openedProtocolInstances	`Cmf.Navigo.BusinessObjects.ProtocolInstanceCollection`	The ProtocolInstances opened after the Perform/Post.
postChartDataPointResults	`Cmf.Navigo.BusinessObjects.PostChartDataPointResultCollection`	The ChartDataPointResults after the Perform/Post.
Success	`Boolean`	Triggered when the task is executed with success
Error	`Error`	Triggered when the task failed for some reason

Settings#

On the General tab, you have the usual settings and the following settings:

Name	Data Type	Values	Default	Description
Number of Retries	`Integer`		30	Number of attempts to repeat the call to post Data Collection points until reply is received
Sleep Time Between Retries: (ms)	`Integer`		`Resource`	Number of milliseconds to wait between retries. It only applies when the previous call fails.
Auto Clear	`Boolean`			If the inputs are automatically cleared after each activation.
Data Collection	`Cmf.Navigo.BusinessObjects.DataCollection`			Data Collection to perform
Data Collection Limit Set	`Cmf.Navigo.BusinessObjects.DataCollectionLimitSet`			Data Collection Limit Set to use
Complex Perform Data Collection Mode	`Enum`	Perform to All Materials in Resource Perform to First Material in Resource Perform to MaterialPerform to Resource		Selected mode used to perform the DataCollection
Resource	`Cmf.Navigo.BusinessObjects.Resource`			Resource object to use
Skip Data Collection Validation	`Boolean`			Whether the Data Collection should be validated
Is To Ignore In SPC	`Boolean`			Whether SPC should ignore this Data Collection

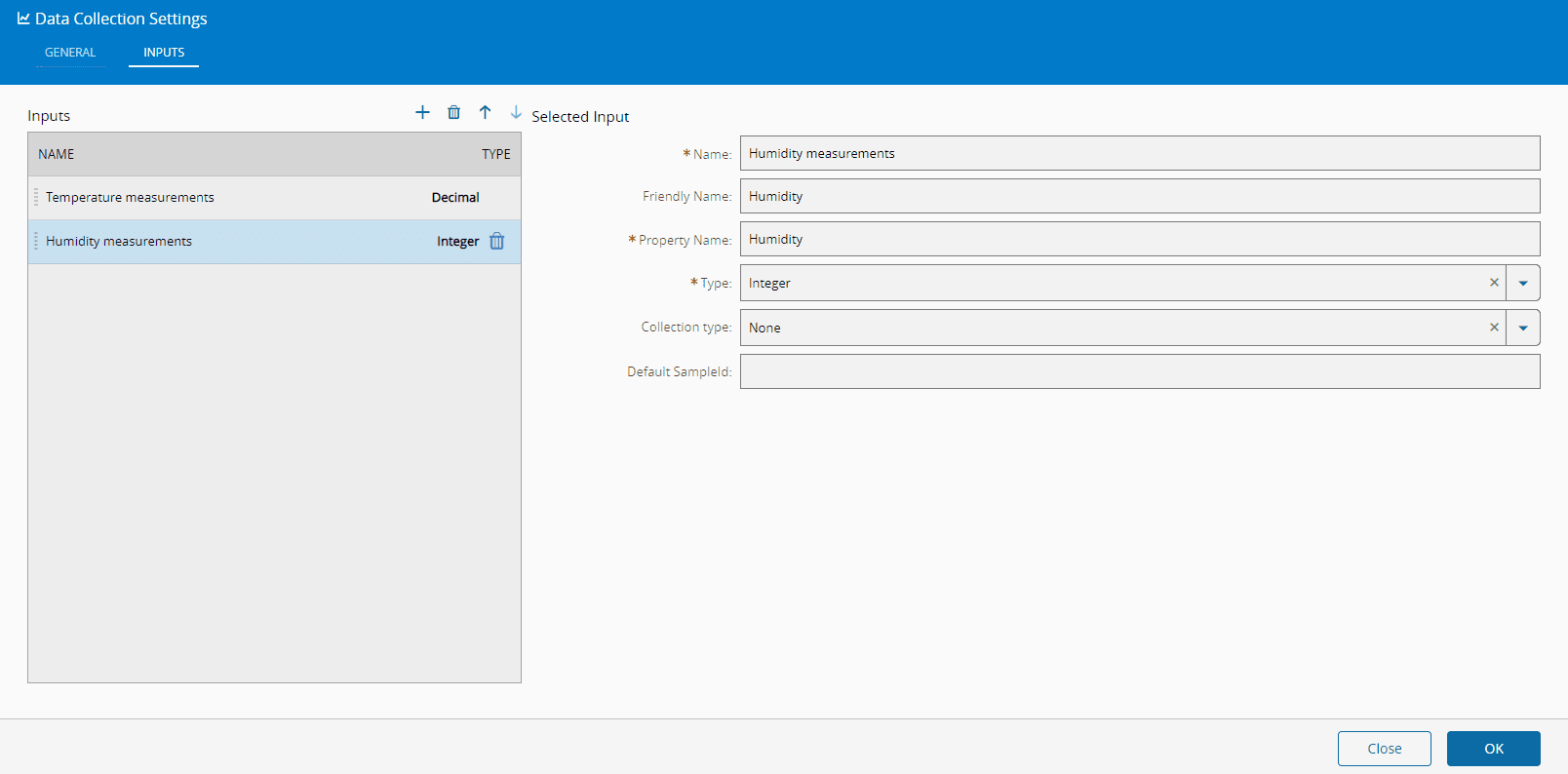

On the Inputs Tab you can add as many rows as desired (each row represents a new Input to be added to the currently selected Data Collection task) by pressing in the top right of the grid and pressing to remove any added entry. For each new Input, define:

Name - Name that will appear in Task
Friendly Name
Property Name - Name that will appear in Message Property
Type
Collection Type
Default SampleId

Note

Selecting a Data Collection in the General tab will add one input for every defined Data Collection Parameter.

Remarks#

The input rawData is expected to have a format that corresponds to a Map, where the key corresponds to the name of a parameter, and its respective value should be an object consisting of a value and a sampleId.

Structure example:

{
    "Temperature": {
        "value":"10",
        "sampleId":"Sample 1"
    },
    "Pressure": {
        "value":"10",
        "sampleId":"Sample 2"
    }
}
