Recipe Body Requested#

1562163976703

This task implements Recipe Body Requests from the MES system.

1562164008993

Inputs#

Name Data Type Description
recipeBody Any Recipes Body to be sent to the MES (this is the reply)
Activate Any Activate the task

Outputs#

Name Data Type Description
onRecipeBodyRequest Object Emits true when the MES sends a request for the recipe body
recipeName String Emits the recipe name that MES wants the body of
Success Boolean Triggered when the task is executed with success
Error Error Triggered when the task failed for some reason

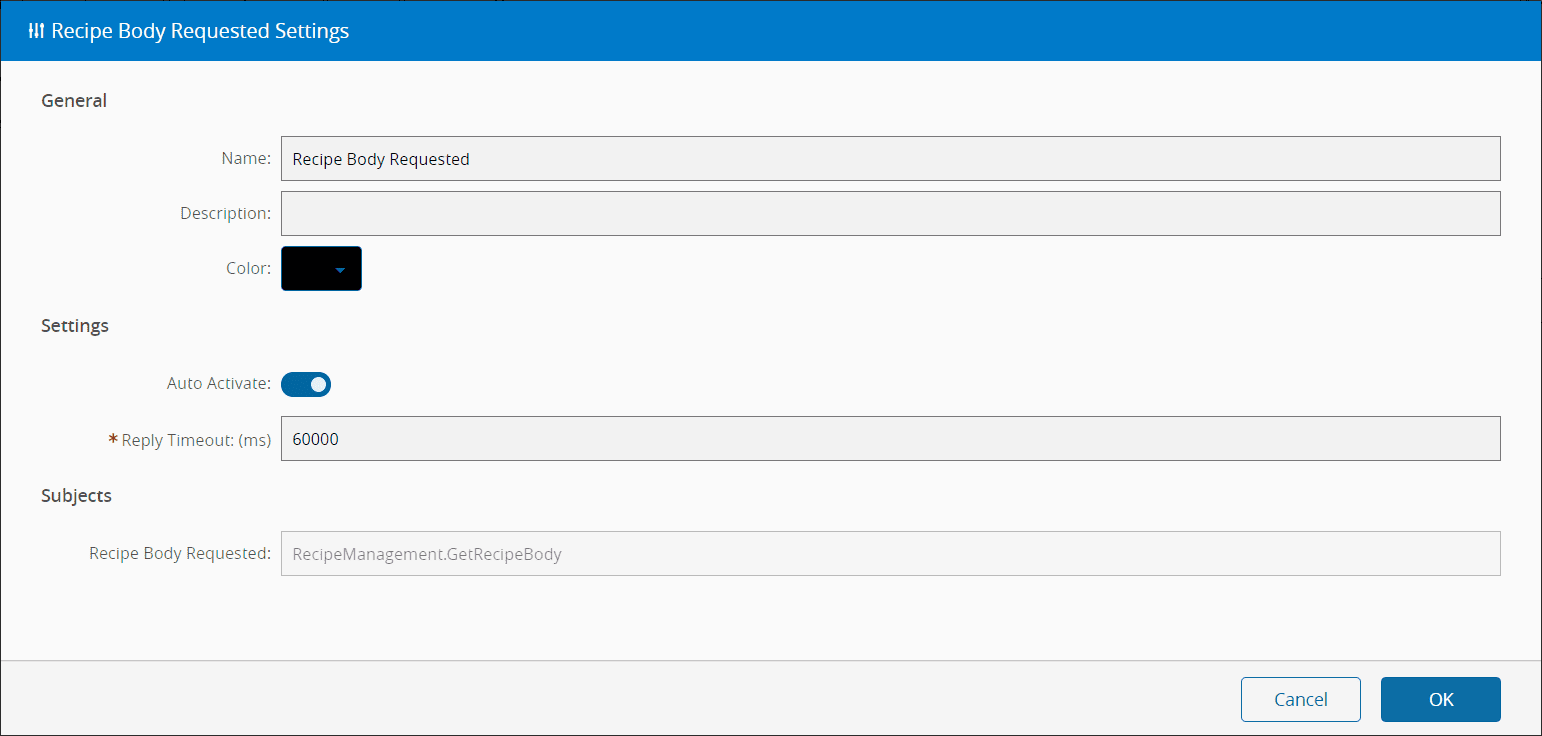

Settings#

On the General tab, you have the usual settings and the following settings:

Name Data Type Values Default Description
AutoActivate Boolean true Auto activates the event listeners for the subject.
Reply Timeout Integer 60000 Timeout between receiving a request from the MES for the recipe list and replying with the recipe list
Recipe BodyRequested String RecipeManagement.GetRecipeBody Subject used to communicate with the MES

1562164223705

Behavior#

This task is responsible for receiving an MES request for the recipe body, via message bus and replying with a recipe body.

Remarks#

This task uses a specific structure of context-based data called zone. More information on this topic can be read in the Zones page.
