Recipe List Requested#
This task implements Recipe List Requests from the MES system.

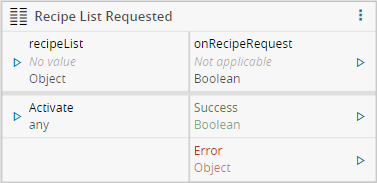

Inputs#
| Name | Data Type | Description |
|---|---|---|
| recipeList | Object | List of Recipes to be sent to the MES (this is the reply) and it is expected to send an array with the names of the recipes. |
| Activate | Any | Activate the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| onRecipeRequest | Object | Emits true when the MES sends a request for the recipe list |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |

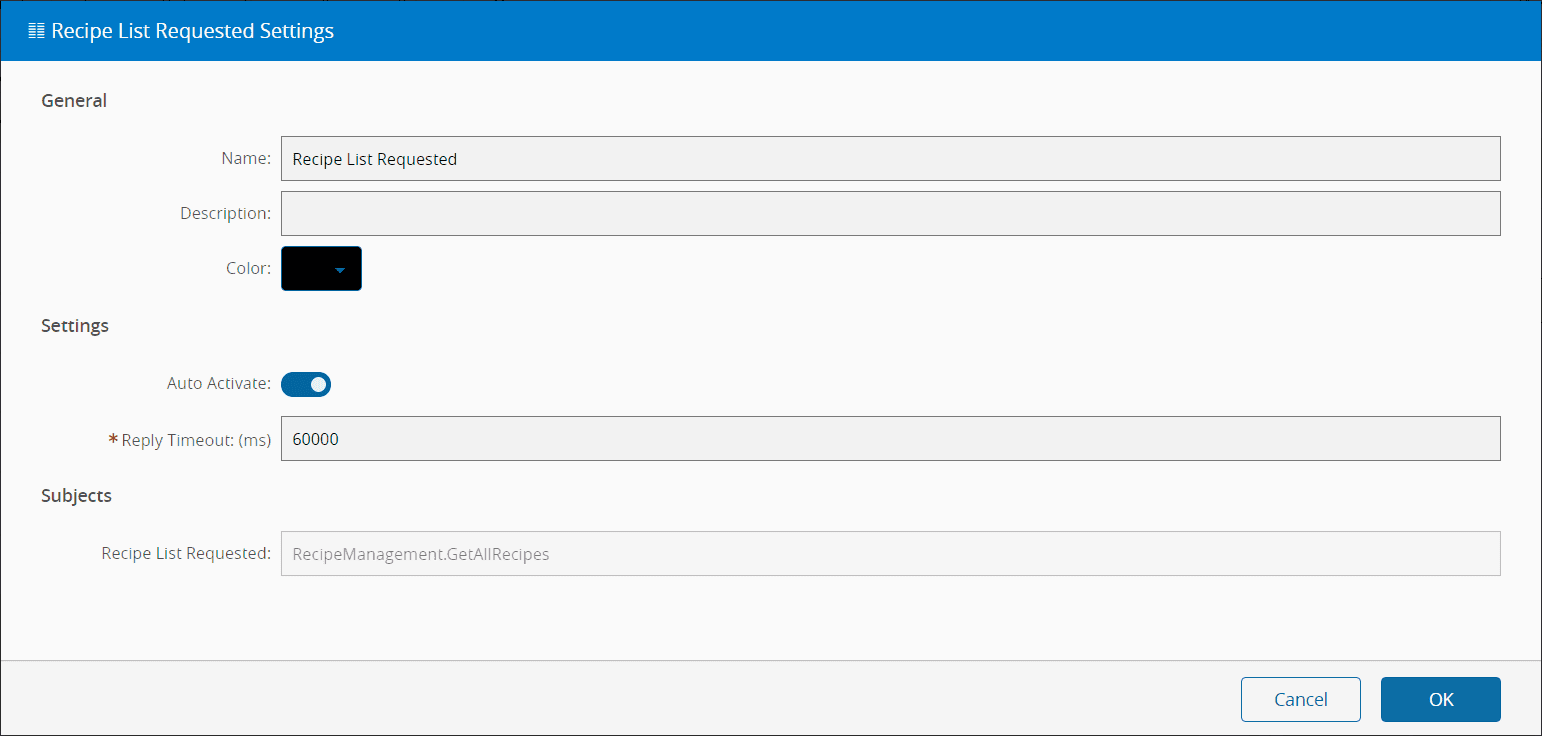

Settings#
On the General tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| AutoActivate | Boolean | true | Auto activates the event listeners for the subject. | |
| Reply Timeout | Integer | 60000 | Timeout between receiving a request from the MES for the recipe list and replying with the recipe list | |
| Recipe List Requested | String | RecipeManagement.GetAllRecipes | Subject used to communicate with the MES |
Behavior#
This task is responsible for receiving an MES request for the recipe list, via message bus and replying with a recipe list.
Remarks#
This task uses a specific structure of context-based data called zone. More information on this topic can be read in the Zones page.
