Board Check In Request Result#

When activated, the Board Check In Request Result task is used to send a reply to the BoardCheckInRequest event

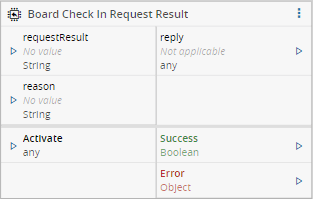

Inputs#

Name	Data Type	Description
requestResult	`String`	The result values: `Error` An internal error occurred in MES, there is no decision about the board possible. The board is not transported. The operator has to check the log filed of MES `Confirmed` The MES confirmed the board for next processing step `Rejected_Hold` The MES rejected the board. The board has to be locked in the conveyor and must be removed manually by the operator. `Rejected_Pass` The MES rejected the board. MES rejected the board but it will be transported through the line. In that case, the operator will not get any information by TraceService that the board was rejected. So in that case, the customer has to implement a solution how to proceed with the board, e.g. the MES implements a escalation path to inform the operator asynchronous
reason	`String`	Reason to appear on the HMI of the equipment as a justification for a fail message.
Activate	`Any`	Activate the task

Name	Data Type	Description
reply	`Any`	The reply received from the system
Success	`Boolean`	Triggered when the task is executed with success
Error	`Error`	Triggered when the task failed for some reason

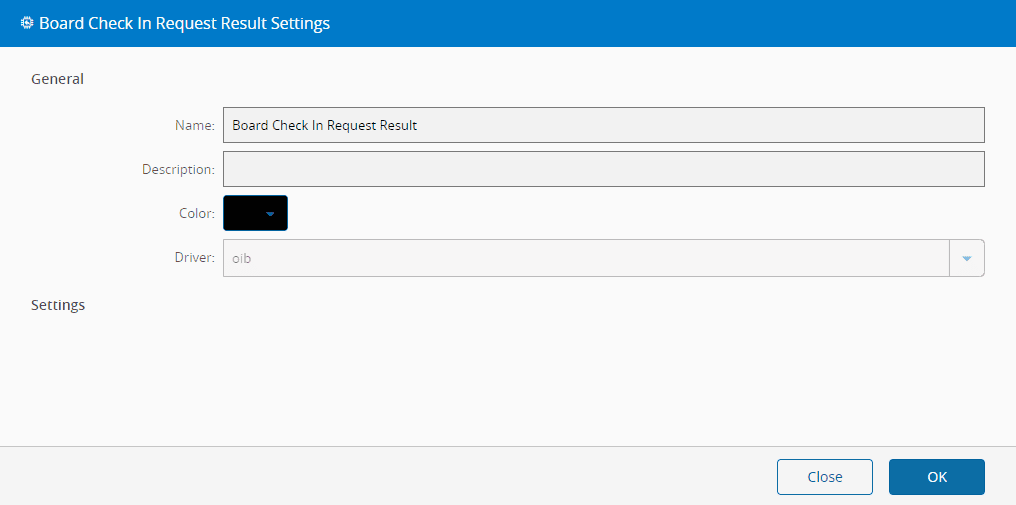

This task doesn't have any settings.

This event receives the result from the CheckIn Event and delivers the same result to the system.

None.
