Equipment and Setup Configuration#
The Equipment and Setup Configuration task is responsible for requesting the data for 3 requests:
- PlaceHeads : The list of heads to be attached and detached from stations;
- TapeFeeders : The list of feeders present in each station;
- DPAxis : The list of DP's with information regarding the DP like for example the 'HeadSegmentActivation'
If received, the requested data is sent as the proper output.

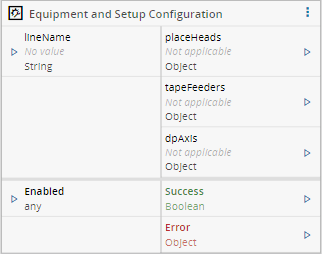

Inputs#
| Name | Data Type | Description |
|---|---|---|
| Activate | Any | Activate the task |
| lineName | String | Optional. If not defined, command will be sent to all lines. |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| placeHeads | Object | The output for the Place Heads Event |
| tapeFeeders | Object | The output for the Tape Feeders Event |
| dpAxis | Object | The output for the DP Axis Event |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |

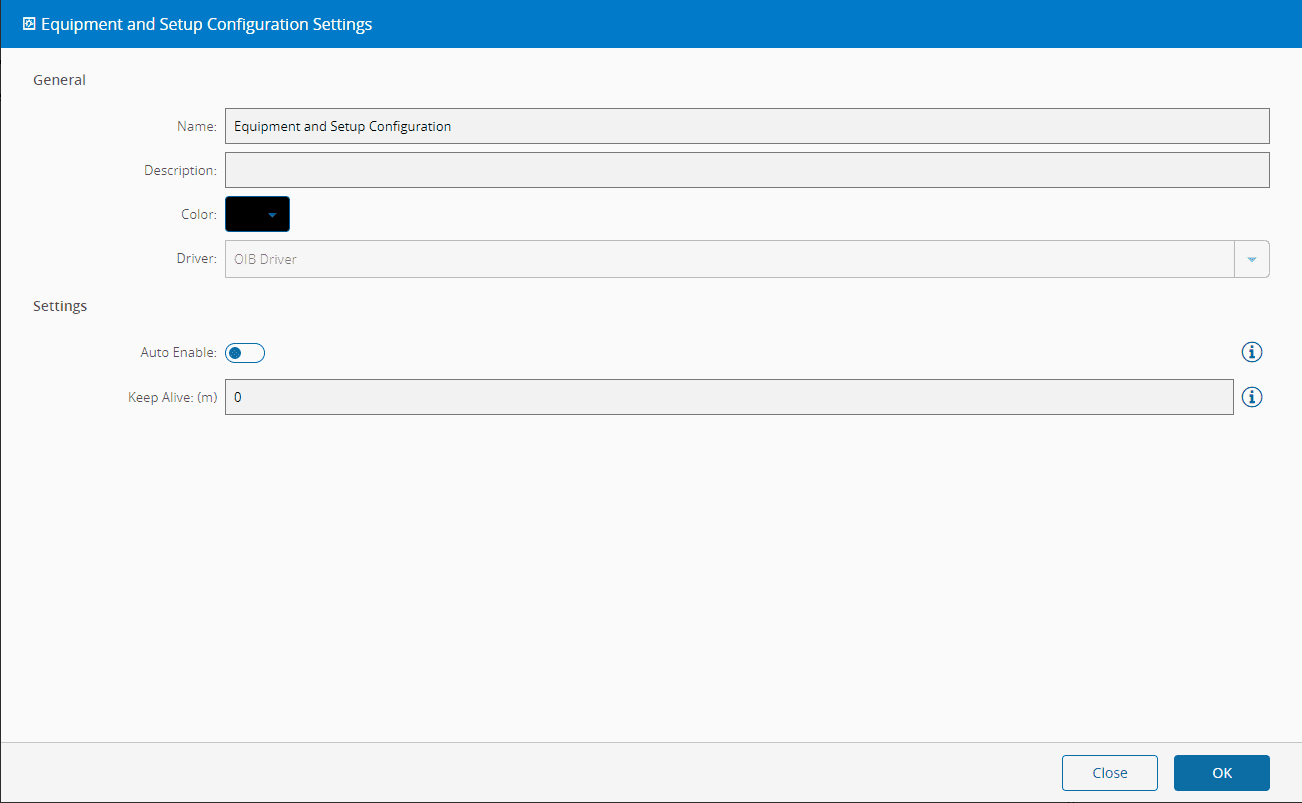

Settings#
On the General tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Auto Enable | Boolean | false | If the task should automatically register event listening at startup or only when activated. | |
| Keep Alive | Integer | 0 | Interval (in minutes) to issue a command to force retrieval of data. Set to 0 to disable. |
Behavior#
The task should be activated to request the information or if the settings auto enabled is set to true the task will start automatically. For the output of a specific data, just use the proper output to read the received data.
Remarks#
None.
