Execute OIB Command#

Screenshot showing an OIB command execution interface, displaying configuration options for sending OIB reply tasks with the OIB driver.

The Send OIB Reply Task is specific to be used with the OIB Driver. This Task executes command OIB messages of a specific type (which can be configured in the Task's settings) and waits for the reply.

Screenshot showing the "Execute OIB Command" parameters.

Inputs#

Name Data Type Description
<custom list> <custom> Specific input values for each command
Activate any Sends the command

Outputs#

Name Data Type Values Description
Success Boolean If there was no problem emits a true
Error Error Error that occurred during the processing of this task

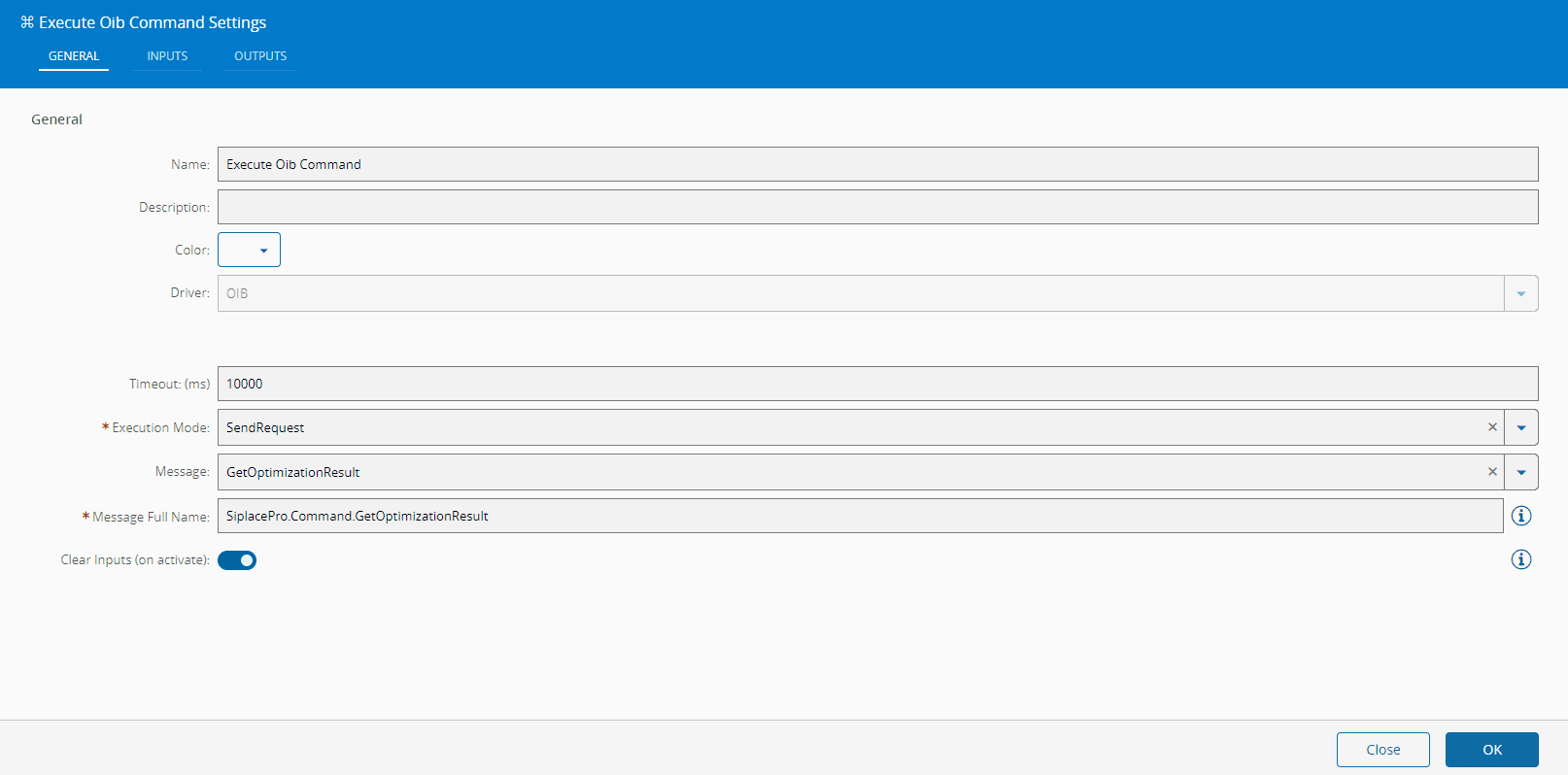

Settings#

On the General Tab, you have the usual settings and the following settings:

Name Data Type Values Default Description
Timeout number 10000 Timeout for request (in milliseconds)
Execution Mode enum Publish
SendRequest		 Execution Mode
Clear Inputs (on activate) Boolean true Defines if it is to clear the input values after receiving an activate
Message Full Name string Name of the Fuji Nexim message e.g. 'SETEV'.
Message enum GetOptimizationResult Specifies the behavior of the task

Screenshot showing a table with columns labeled "Name", "Data Type", "Values", "Default", and "Description" in the Settings section.

Behavior#

When activated, this Task executes a command of a specific OIB message and waits for the reply. After receiving the reply, this Task's outputs are updated.

Remarks#

None
