Factory Layout#
The Factory Layout task is responsible for requesting the data for the Factory Layout.
If received, the requested data is sent as the proper output.

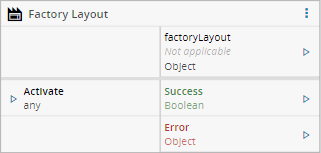

Inputs#
| Name | Data Type | Description |
|---|---|---|
| lineName | String | Optional. If not defined, command will be sent to all lines. |
| Activate | Any | Activate the task (true for activate, other values for deactivate) |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| factoryLayout | Object | The output for the FactoryLayout Event |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |

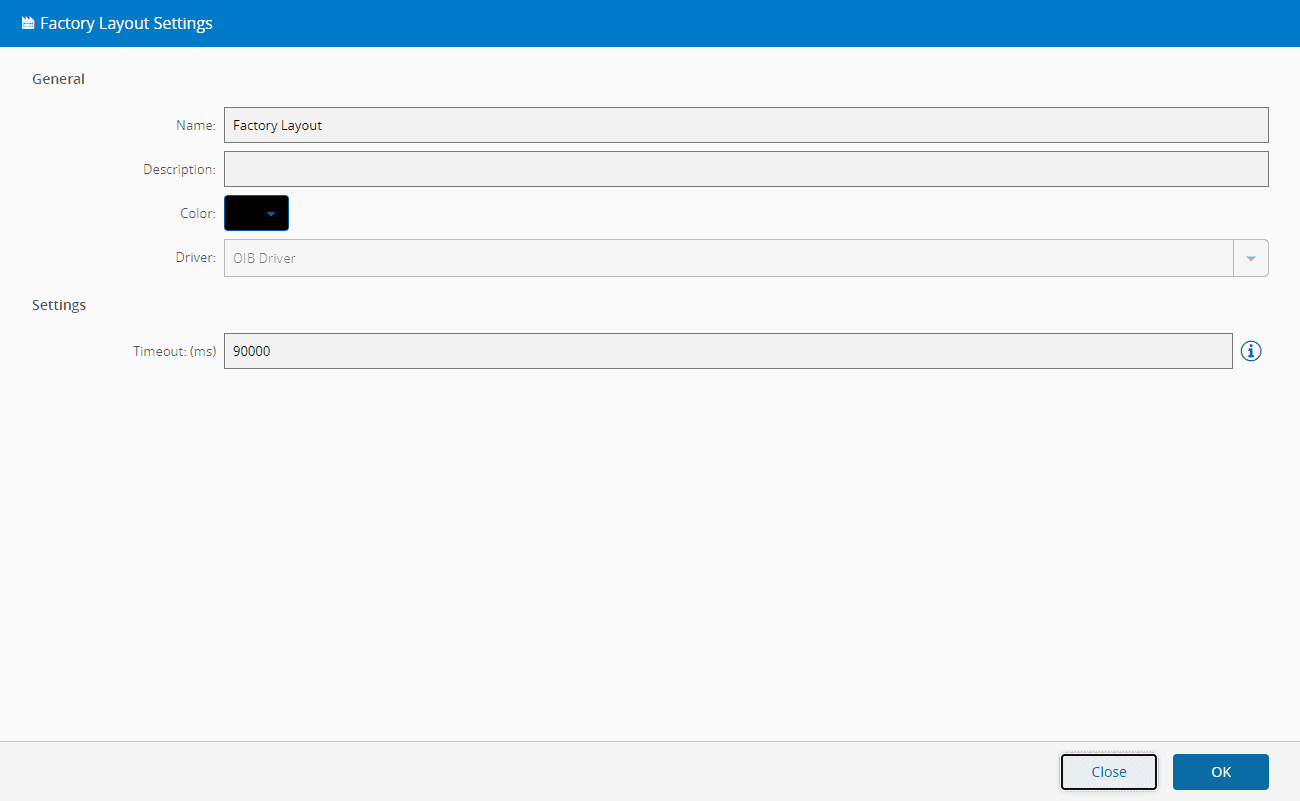

Settings#
On the General tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Timeout | Integer | 90000 | This will be the number of milliseconds until an answer for the request is expected. Set to 0 to disable. |
Behavior#
The task should be activated to request the information of the Factory Layout. The task will only be activated if it has in the Activate input a Boolean true, other values will be interpreted as deactivate. The output will contain the JSON with the Factory Layout information received.
Remarks#
None.
