Feeder Interlocking Request Result#
This command is used to send a reply to the FeederInterlockingRequest event.

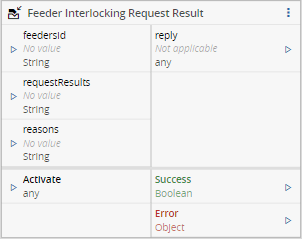

Inputs#
| Name | Data Type | Description |
|---|---|---|
| feedersId | String | Single or multiple feeder Id (comma separated) |
| requestResults | String | The result of the board validation returned by MES. Must be:0 (OK) The feeder interlocking status is ok. The feeder can be used.1 (NotOk) The feeder interlocking status is overdue.This is a comma separated value string for all the FeedersId |
| reasons | String | A reason for the return value of requestResults (comma separated values) |
| Activate | Any | Activate the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| reply | Any | The reply received from the system |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |

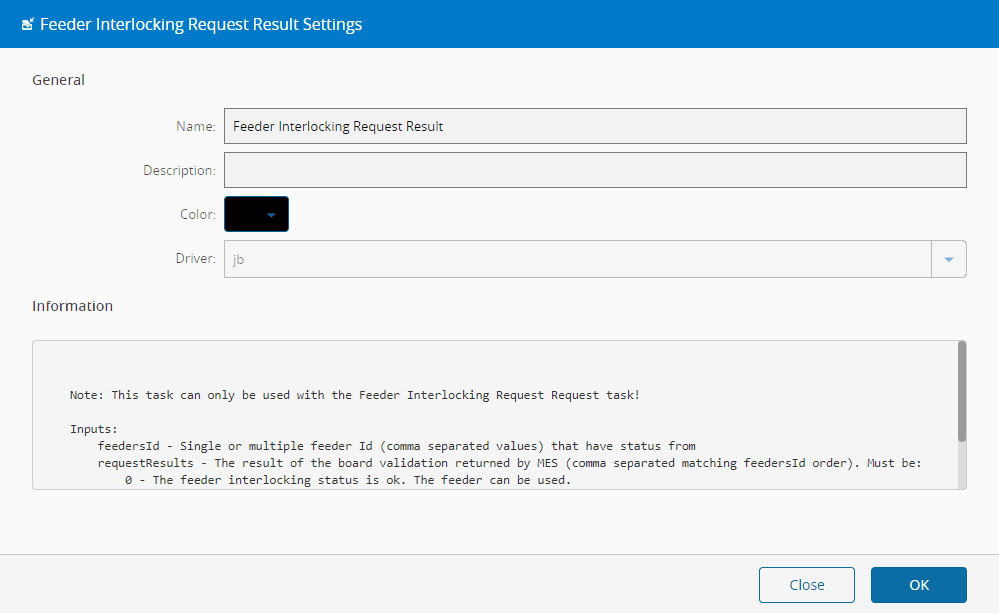

Settings#
This task doesn't have any settings.
Behavior#
This task can only be used with the Feeder Interlocking Request Request task.
Remarks#
None.
