Setup Center Material Moved#

The Setup Center Material Moved task informs when a packaging unit chain was moved.

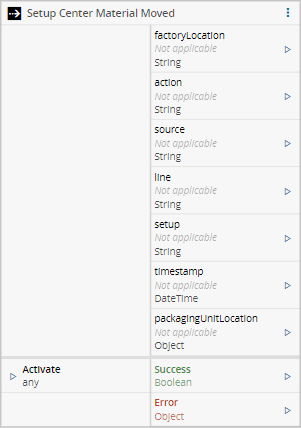

Inputs#

Name	Data Type	Description
Activate	`Any`	Activate the task

Name	Data Type	Description
factoryLocation	`String`	Name of the location inside the factory
action	`String`	The type of material movement
source	`String`	The source of an operation, e.g. PackagingUnitQuantityChanged event, detected within Setup Center.
timestamp	`DateTime`	Date and time when the material movement happened
line	`String`	The line where the moved packaging unit belongs to
setup	`String`	The setup where the moved packaging unit belongs to
packagingUnitLocation	`Object`	The moved packaging unit and the associated component location
errorId	`String`	Failure Error Id. Example: 'someId'
errorMessage	`String`	Failure message. Example: 'Fatal Error Message'
Success	`Boolean`	Triggered when the task is executed with success
Error	`Error`	Triggered when the task failed for some reason

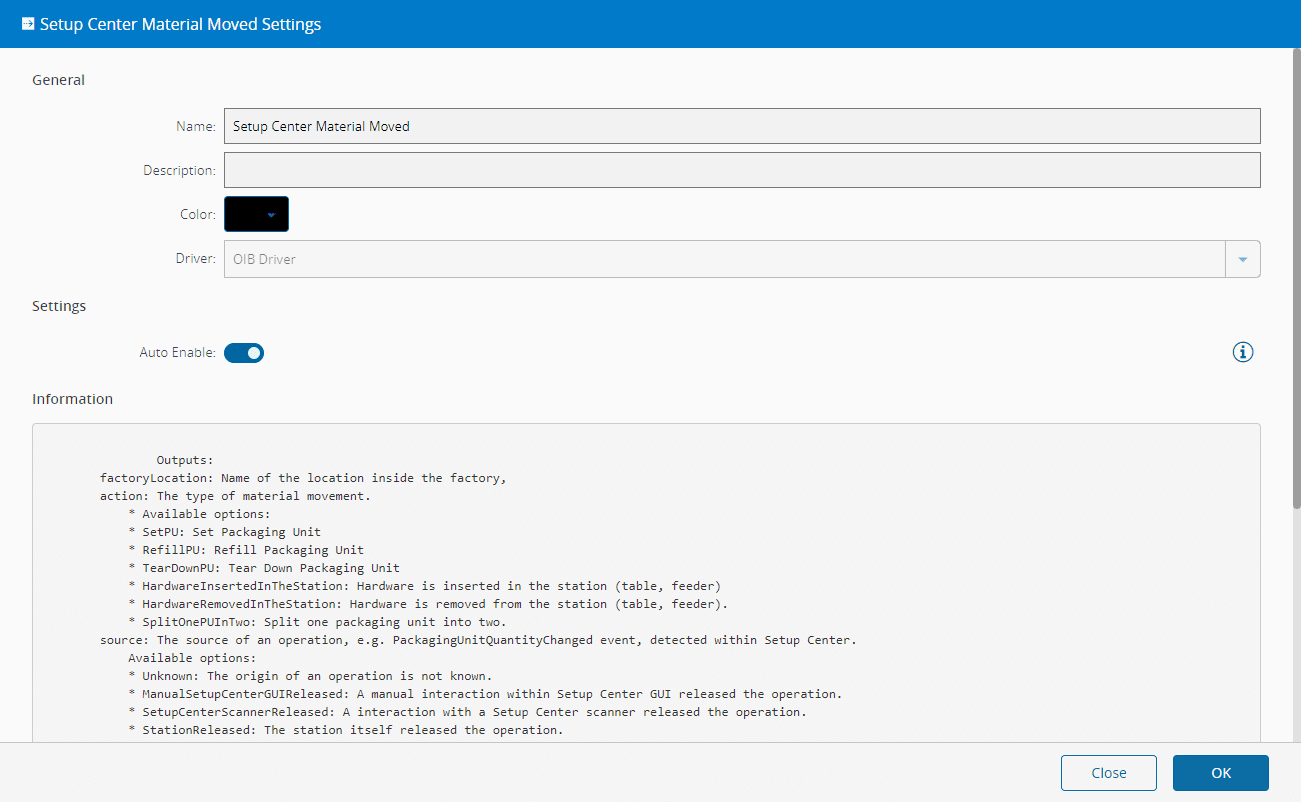

On the General tab, you have the usual settings and the following settings:

Name	Data Type	Values	Default	Description
Auto Activate	`Boolean`		`true`	On initializing the task, subscribes it to the Gate Keeper Messages. If false, only subscribes on Activate.

This task captures the SetupCenter interface, whenever a packaging unit chain was moved.

None.
