Setup Center Material Reordered#

The Setup Center Material Moved task informs whenever a reorder was initiated on the line.

Inputs#

Name	Data Type	Description
Activate	`Any`	Activate the task

Name	Data Type	Description
factoryLocation	`String`	Name of the location inside the factory
line	`String`	Line name, where the reorder takes place Range: 1- 256 signs.
component	`String`	Component name within SIPLACE Pro. Range: 1- 256 signs
division	`String`	Division of the feeder, where the component is setup up (component based). Range: 1-3
timestamp	`DateTime`	MSD open date
level	`String`	Level within a carrier, where the component is set up (component based). This property is required for MTC/WPW/TrayStack, else 0
tower	`String`	Tower number of a MTC / WPW, else 0(component based).
stationTrack	`String`	This is the number of the track on the station based on the track ruler for this component location.
machineId	`String`	Machine id which is unique for all machines worldwide
location	`Integer`	Station location (feeder based). Range: 1-4
cassetteLevel	`Integer`	This is the level within the cassette(not to be confused with the level in the tray feeder).
dockingStationId	`String`	Docking station identifier.
tableId	`String`	Changeover table identification.
feederId	`String`	Feeder identification.
feederType	`Integer`	Feeder type (is equivalent to MC number).
cartridgeId	`String`	Cartridge identifier. The cartridge id is only available for the Bulkfeeder X.
cassetteId	`String`	Cassette identifier.
Success	`Boolean`	Triggered when the task is executed with success
Error	`Error`	Triggered when the task failed for some reason

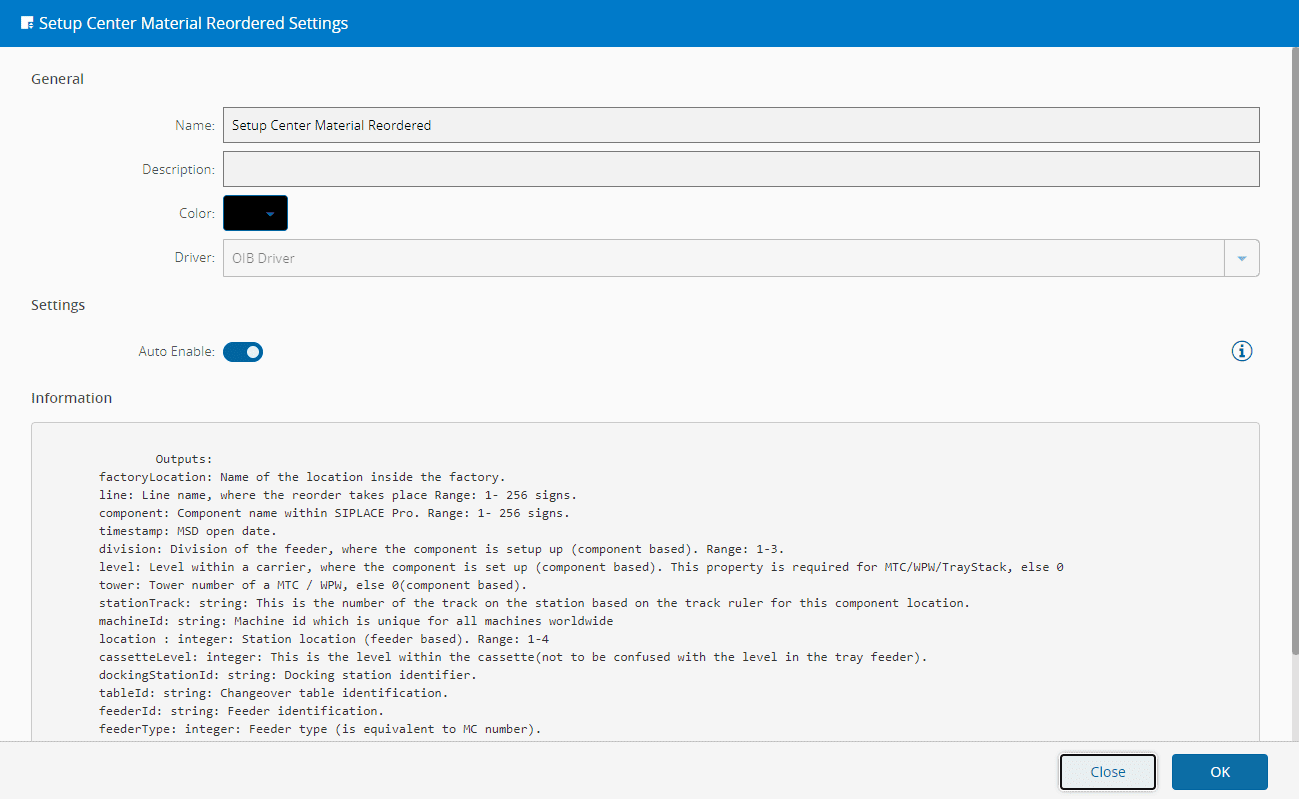

On the General tab, you have the usual settings and the following settings:

Name	Data Type	Values	Default	Description
Auto Activate	`Boolean`		`true`	On initializing the task, subscribes it to the Gate Keeper Messages. If false, only subscribes on Activate.

This task captures the SetupCenter interface, whenever a reorder was initiated on the line.

None.
