New PackagingUnit Data Request#
The New PackagingUnit Data Request task uses the GetNewPackagingUnitData() method on ISiplaceSetupCenterExternalControl interface.
Will be called by Setup Center if the scanned unique ID is not in Setup Center database.
The MES system will get the scanned barcode and return the packaging unit data for the scanned unique ID.

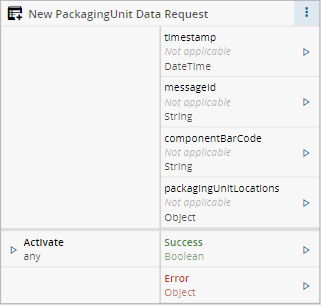

Inputs#
| Name | Data Type | Description |
|---|---|---|
| Activate | Any | Activate the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| messageId | string | Message Id from Oib. It will be needed to provide a reply. |
| componentBarCode | string | The complete scanned Barcode containing the "component" barcode fragment |
| packagingUnitLocations | string | list of component locations where the scan happens and which data was scanned |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |

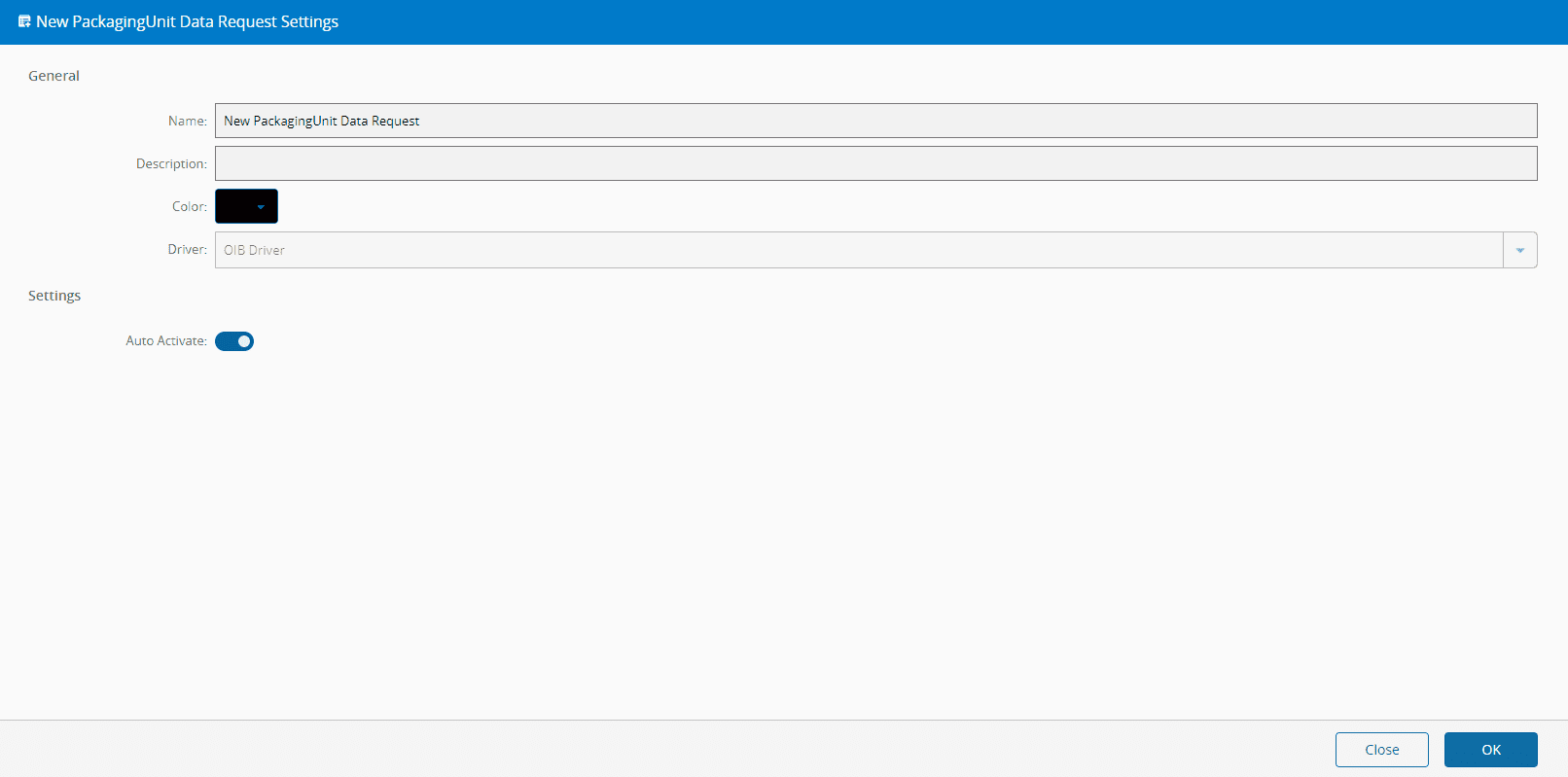

Settings#
On the General tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Auto Activate | Boolean | true | On initializing the task, subscribes it to the Gate Keeper Messages. If false, only subscribes on Activate. |
Behavior#
Typical usage scenario, is this task connected to a MES call and the output of that MES call to a newPackagingUnitDataRequestResult task.
Remarks#
None.
