New PackagingUnit Data Request Result#
The New PackagingUnit Data Request Result task uses the GetNewPackagingUnitData() method on ISiplaceSetupCenterExternalControl interface.
This task is normally used in conjunction with the NewPackagingUnitDataRequest task.
This task outputs the task inputs back to the driver.

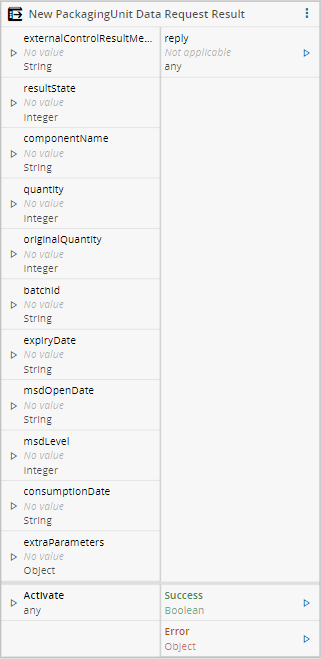

Inputs#
| Name | Data Type | Description |
|---|---|---|
| externalControlResultMessage | string | Message describing the reason for the failing operation |
| resultState | number | The result status of the returned ExternalControlResult. |
| componentName | string | Component name within SIPLACE Pro. Range: 1- 256 signs |
| quantity | number | The actual quantity of the packaging unit. |
| originalQuantity | number | The original quantity is the ticketed initial size (quantity) of the packaging unit. |
| batchId | string | Unique identification for a component lot of one or more packaging units |
| expiryDate | string | Component expiry date (the Date is transferred as UTC times). |
| msdOpenDate | string | MSD open date (the Date is transferred as UTC times). |
| msdLevel | number | JEDEC Moisture Sensitivity Level 1-6. |
| consumptionDate | string | This is the time stamp from the consuming operation performed by Setup Center |
| extraParameters | Object | Object to allow setting of remaining parameters on PackagingUnit |
| Activate | Any | Activate the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| reply | any | Reply received from the command |
| Success | Boolean | Triggered when the task is executed with success |
| Error | Error | Triggered when the task failed for some reason |

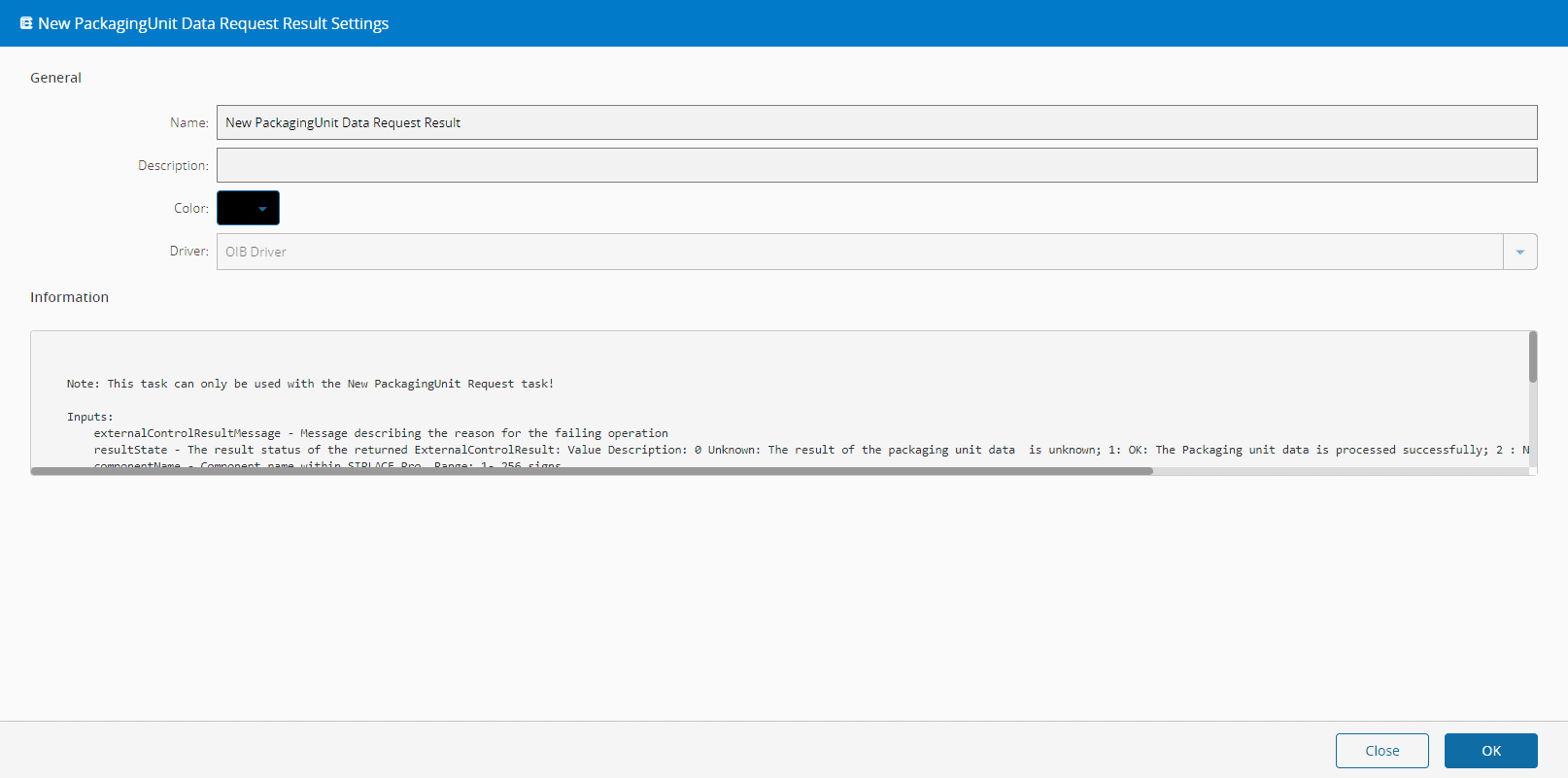

Settings#
This task doesn't have any settings.
Behavior#
In a typical usage scenario, this task replies to the NewPackagingUnitDataRequest task.
Remarks#
None.
