OIB Event#
The On OIB Event Task is specific to be used with the OIB Driver. This task receives event OIB messages of a specific type, which can be configured in the Task settings. The Task's static and dynamic outputs are updated after each event received.
Inputs#
| Name | Data Type | Description |
|---|---|---|
| Activate | Boolean | Enables or Disables the event listening and triggering |

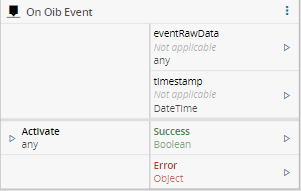

Outputs#
| Name | Data Type | Description |
|---|---|---|
| timestamp | DateTime | The timestamp for when the event is triggered |
| eventRawData | Object | The raw automation event object |
| Error | Error | Error that occurred during the processing of this task |
Settings#
On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Auto Activate | Boolean | true | If the event is activated by the register of an event of that type or if it is only activated by the activate input | |
| Message | Optimization Result, PrinterMaterialVerified, PrinterToolVerified, PrinterConsumablesUpdated, ProcessData, StationAvailability | Specific message to process | ||
| Message Full Name | enum | Name of the complete OIB message with the namespace included, e.g. OIB.Production.ActivitiesExecuted. |
On the Output Tab, you have the appropriate settings depending on the Message that is processed by the task.
Behavior#
When activated, this Task subscribes to a specific event OIB message, configured in the settings. Every time a message is received (via event) it emits the respective results to its outputs.
Remarks#
None.
