Command Result#
This task returns the result of an OPC UA method call. To be used together with the OnCommand task.
Warning
This task is currently deprecated and will be removed in future versions.
Inputs#
| Name | Data Type | Values | Description |
|---|---|---|---|
| Id | Object | Unique identifier of the request (from the OnCommand task) to which the results relate | |
| Success | Boolean | Result of the method execution | |
| Error | Error | Used to report an error in the method execution |
Outputs#
None.
Settings#

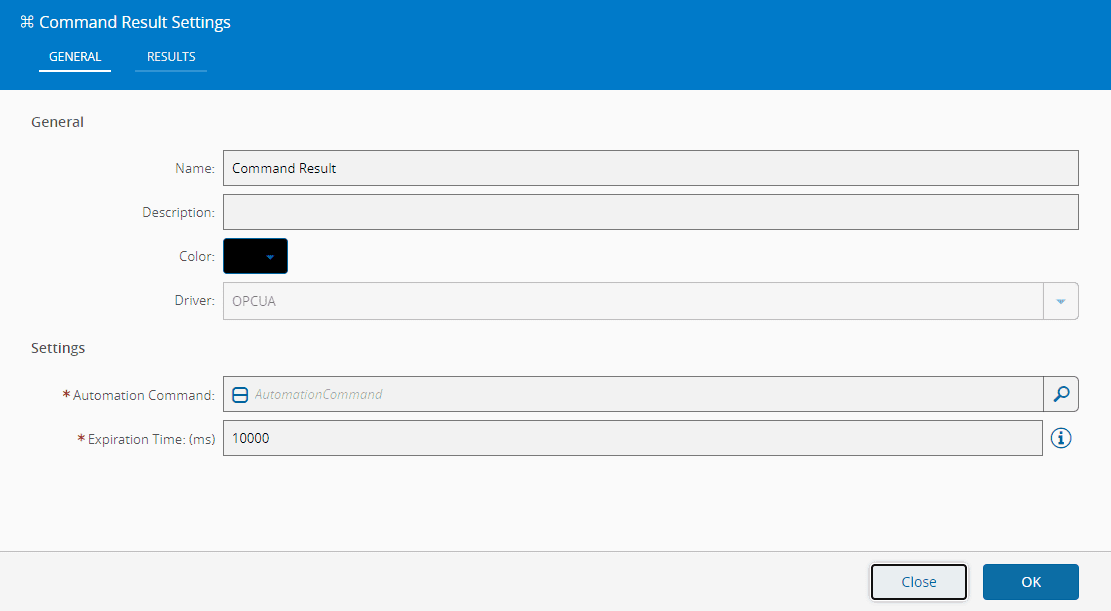

On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Default | Description |
|---|---|---|---|
| Automation Command | AutomationCommand | The command to send | |
| Expiration Time | Integer | Expiration time for the command (in milliseconds) |

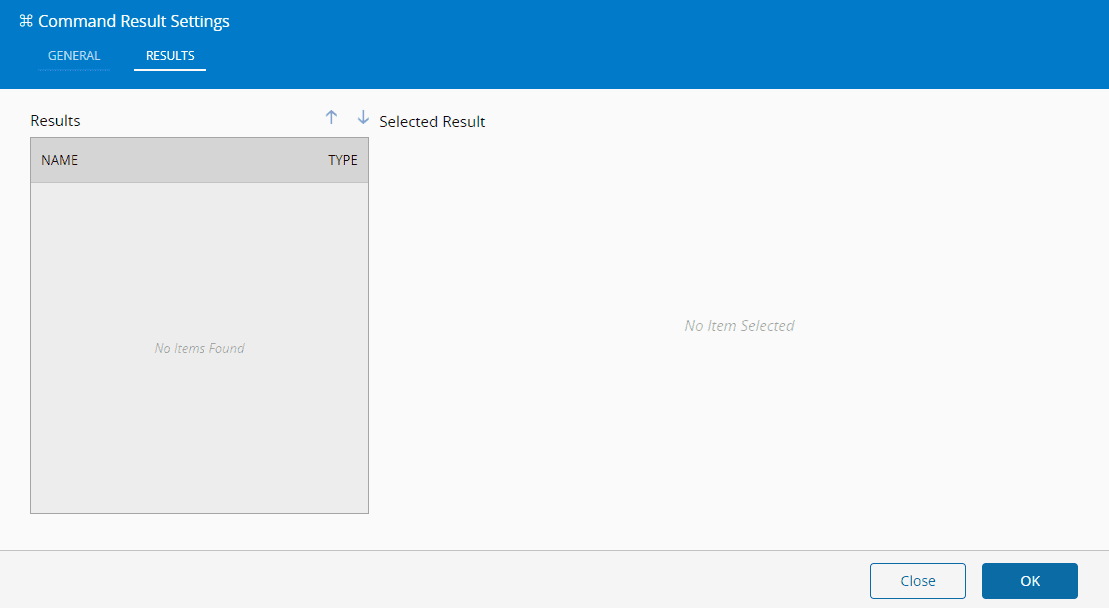

On the Results Tab, you have entries for each of the result parameters of the command:
Behavior#
Select a command (corresponding to a OPC UA method) to reply to and the task inputs will be generated based on the respective output arguments.
The task will send a reply to the driver with the input values once it receives either a success or an error value.
Values received in the inputs are stored by execution context.
Remarks#
None.
