Create File#

Screenshot showing a file creation interface.

This task creates a file in OPC UA server using the File Transfer feature. To be used with OPC UA driver in Client mode.

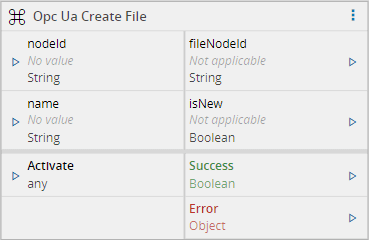

Screenshot showing a UI with options to create a file, including "Node ID" and "File Name".

Inputs#

Name Data Type Description
nodeId String The node id where the file will be created
name String Name for the file
Activate any Activate the task

Outputs#

Name Data Type Description
fileNodeId String The newly created node id for the file
isNew Boolean The flag that specifies whether the file was created or already existed
Success Boolean If there was no problem emits a true
Error Error Error that occurred during the processing of this task

Settings#

On the General Tab, you have the usual settings and the following settings:

Name Data Type Default Description
NodeId String The node id where the file will be created
Fail if exists Boolean False If true and the file exists, will throw an error, otherwise will output the already existing node id

Diagram showing a table with columns labeled "Name", "Data Type", and "Default".

Behavior#

Activate will trigger a message to the driver. The contents of the message are the values received in the inputs or settings.

Remarks#

All the communication with the equipment is handled by the driver in the backend.
