Raise Event#

Screenshot showing a button or control labeled "Raise Event".

This task raises an OPC UA event. To be used with OPC UA driver in Server mode.

Screenshot showing a dialog box with options for raising an event.

Warning

This task is currently deprecated and will be removed in future versions.

Inputs#

Name Data Type Description
<custom list> <custom> Input properties
Activate any Activate the task

Outputs#

Name Data Type Description
Success Boolean If there was no problem emits a true
Error Error Error that occurred during the processing of this task

Settings#

On the General Tab, you have the usual settings and the following settings:

Name Data Type Default Description
Event AutomationEvent Automation Event to be raised

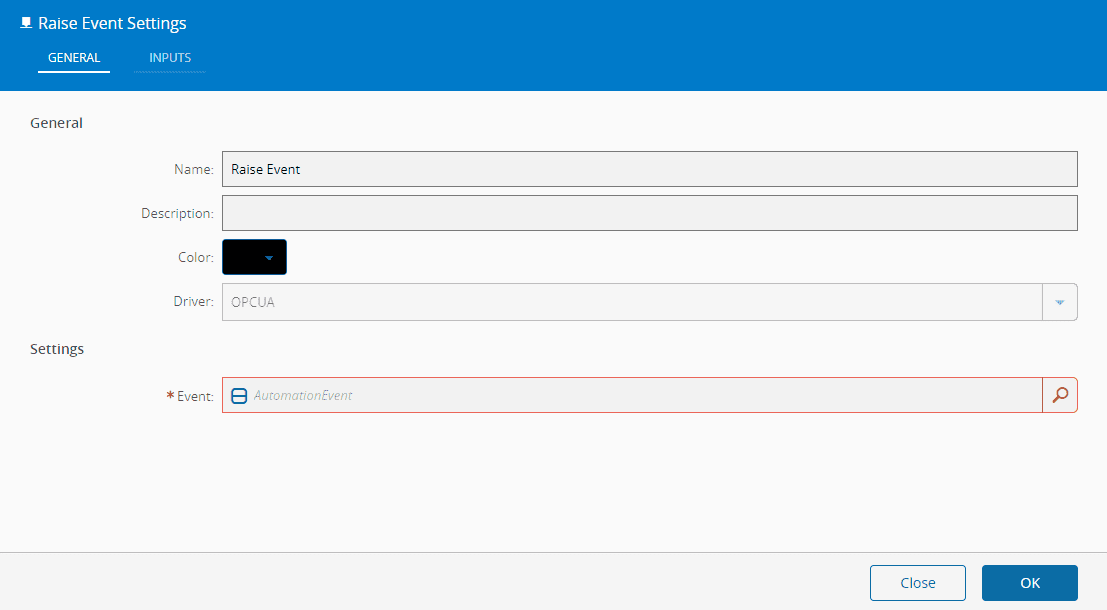

Screenshot showing the Raise Event Settings page.

On the Inputs Tab, you have entries for each of the result parameters of the command:

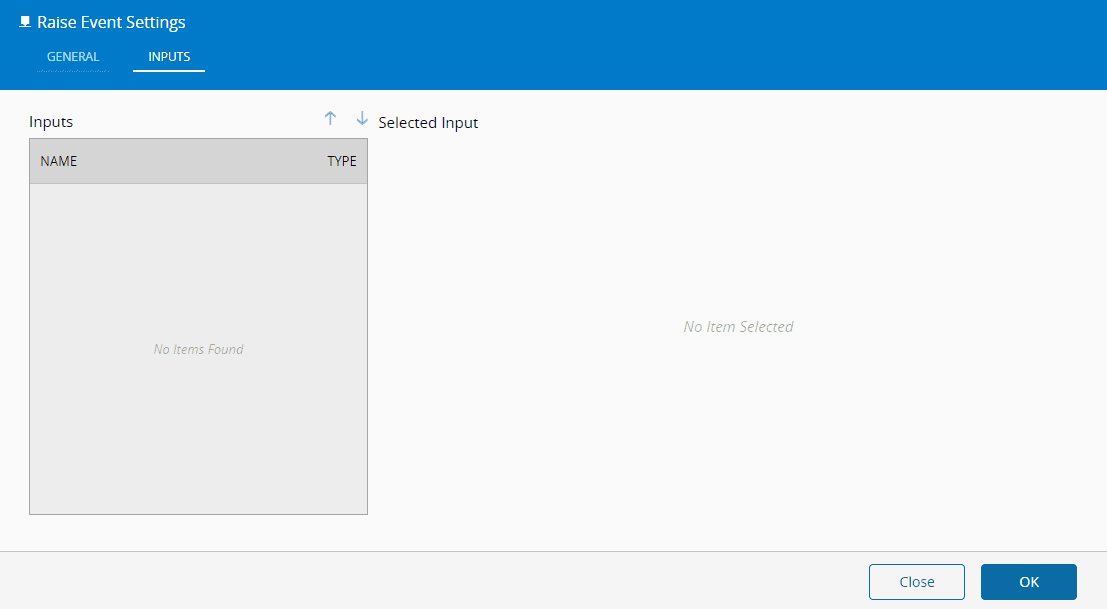

Screenshot showing the input fields for Raise Event Settings.

Behavior#

Select an event (corresponding to a OPC UA event) to send and the task inputs will be generated based on the respective event properties

Activate will trigger sending a message to the driver. The contents of the message are the values received in the inputs.

Remarks#

All the communication with the equipment is handled by the driver in the backend.
