Execute PanaCIM Command#
This Task is specific to be used with the PanaCIM Driver.
This Task executes command messages of a specific type (which can be configured in the Task's settings) and waits for the reply.
Warning
This task is in experimental mode and has not been tested in a production environment. Currently, this task is not mandatory for any use case and the user can use the default execute equipment command.

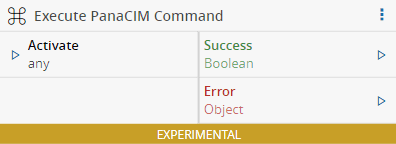

Inputs#
| Name | Data Type | Description |
|---|---|---|
| Activate | Boolean | Activates the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |
Settings#
On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Timeout | number | 10000 | Timeout for request (in milliseconds) | |
| Execution Mode | enum | PublishSendRequest | Execution Mode | |
| Clear Inputs (on activate) | Boolean | true | Defines if it is to clear the input values after receiving an activate | |
| Message Full Name | string | Name of the PanaCIM message | ||
| Message | enum | Part SupplyEquipment Control ReleaseValid Event SettingEvent Notice CommencementEquipment Control Command | Specifies the behavior of the task |
Behavior#
When activated, this Task executes a command of a specific message and waits for the reply.
After receiving the reply, this Task's outputs are updated.
Remarks#
None.
